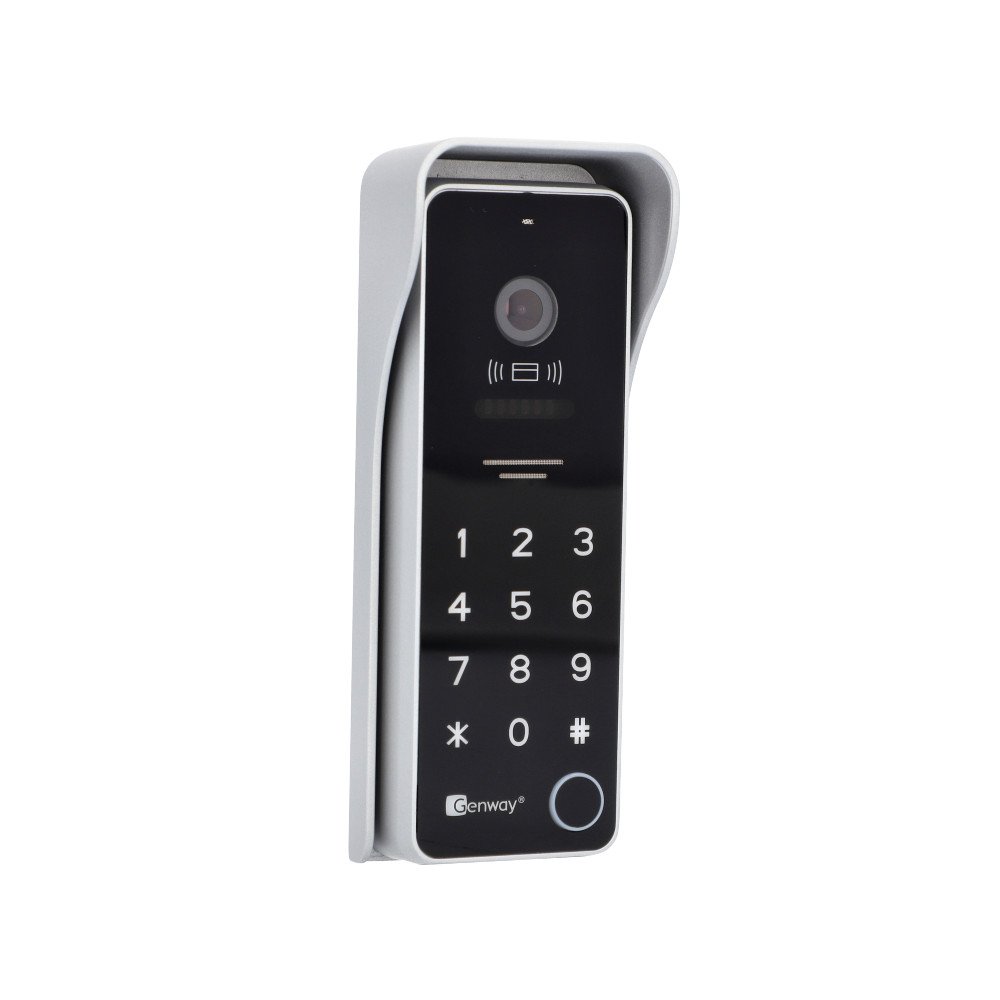

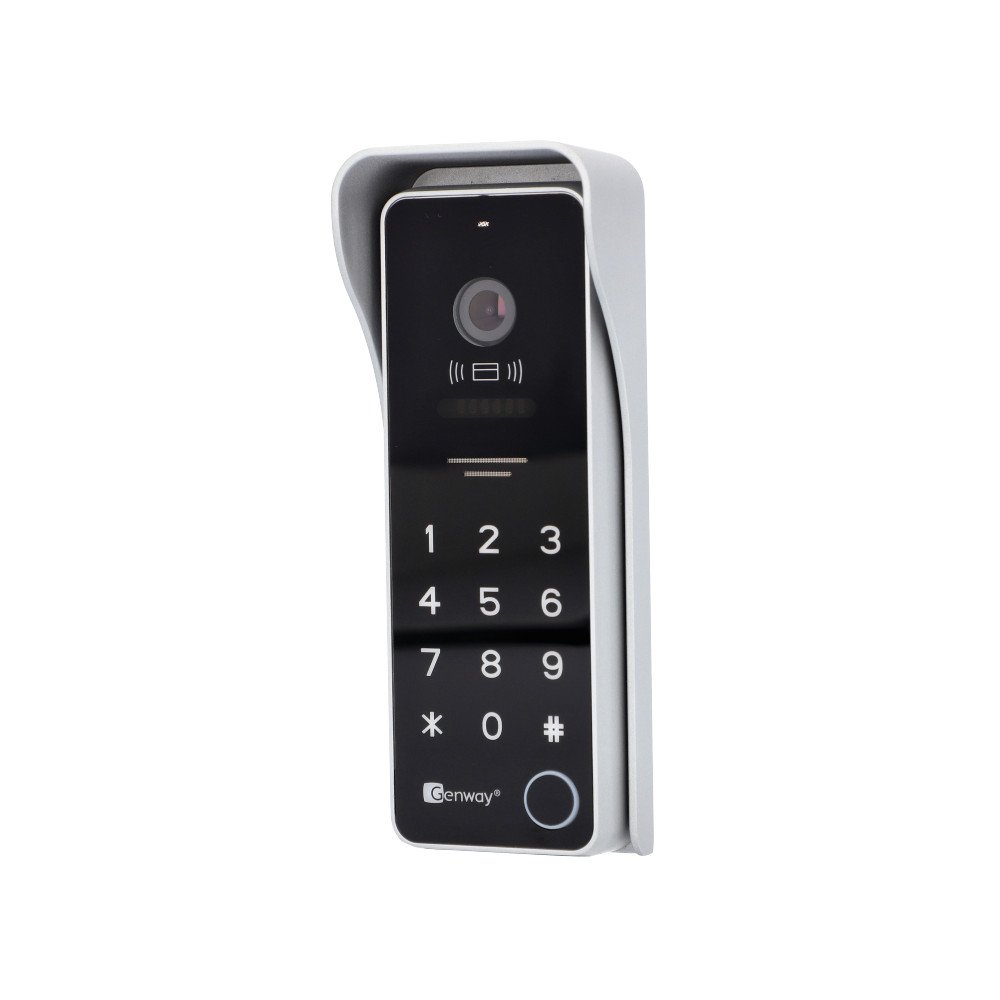

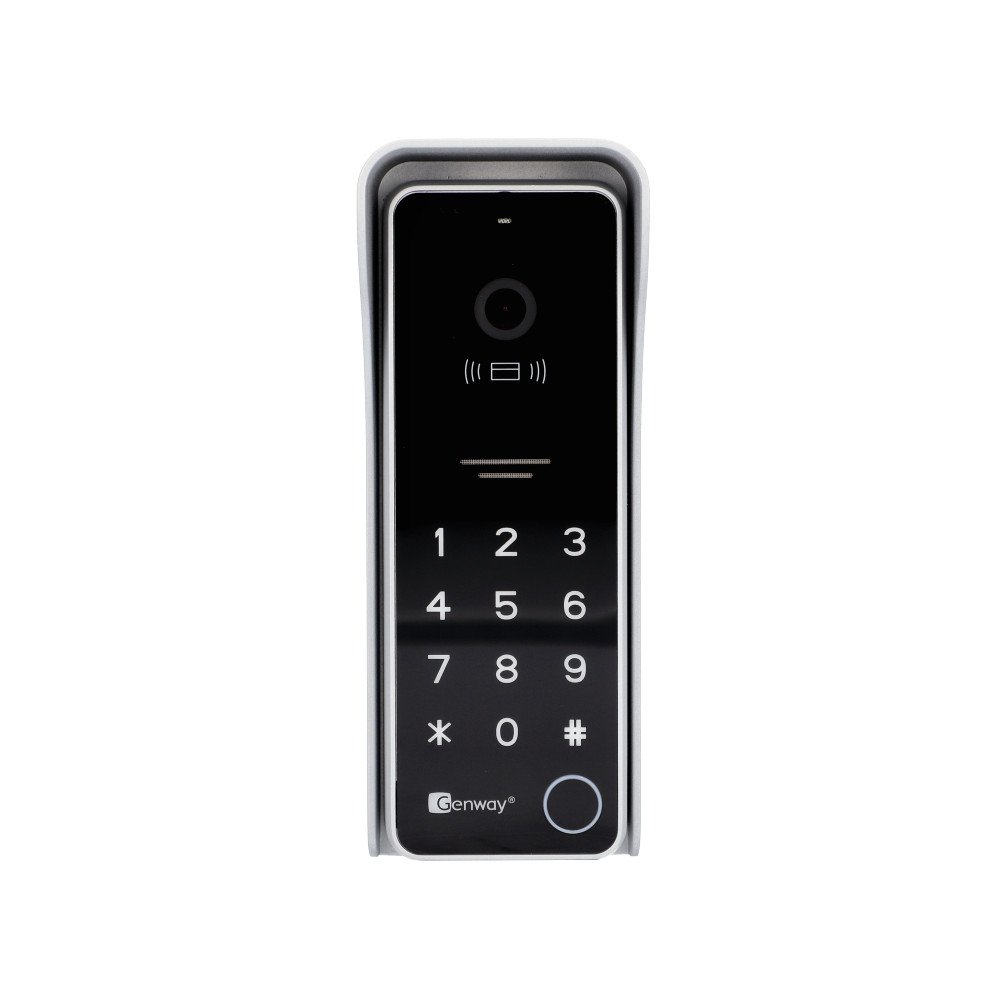

Genway F-S9-2W - Video intercom panel 1 family with card reader and F series keyboard

• Slim, stylish housing
• Digital two-wire communication
• Single-family
• Touch keyboard
• Opening with a PIN code or a gate/gate ID card
• Camera with 1080p resolution, 120° viewing angle

The entire series of F series intercoms is based on two-wire communication. This means that only two wires are required for the system to function properly thanks to the use of digital transmission. The F series is characterized by smooth operation, there are no problems with dropped calls or inability to hear the interlocutor. If you have an intercom or a regular doorbell, you can easily replace the classic device with a modern video intercom with an application (using an F series indoor monitor). You can connect a gate and wicket operator to it without the need to use an additional power supply, because the panel will power the striker that locks the wicket.

The F series video intercoms allow convenient operation with the Tuya application, available for smartphones with Android and iOS systems. Through the application you can open the gate and gate, receive calls from the video intercom and manage the video intercom. Thanks to this, you will not miss any attempts to deliver parcels or customers.

Attention:An F series monitor is required to operate Tuya Smart.

Single-family external panel that can be opened with a code, card or application. The F-S9-2W panel is characterized by simple connection and the ability to operate on any two-wire cable in a digital system, which ensures high-quality image and voice.

The panel has a keyboard and a 125 kHz proximity card reader module. This combination gives you many ways to enter your property. If you do not have a card or keychain with you, you can enter a 4-8 digit PIN code. By opening with an ID card or PIN code, we can choose whether we want to open the gate or gate. After receiving a call on your smartphone via the Tuya Smart application, you can also open the gate or gate.

• Digital, two-wire communication – simplicity and flexibility of connection;

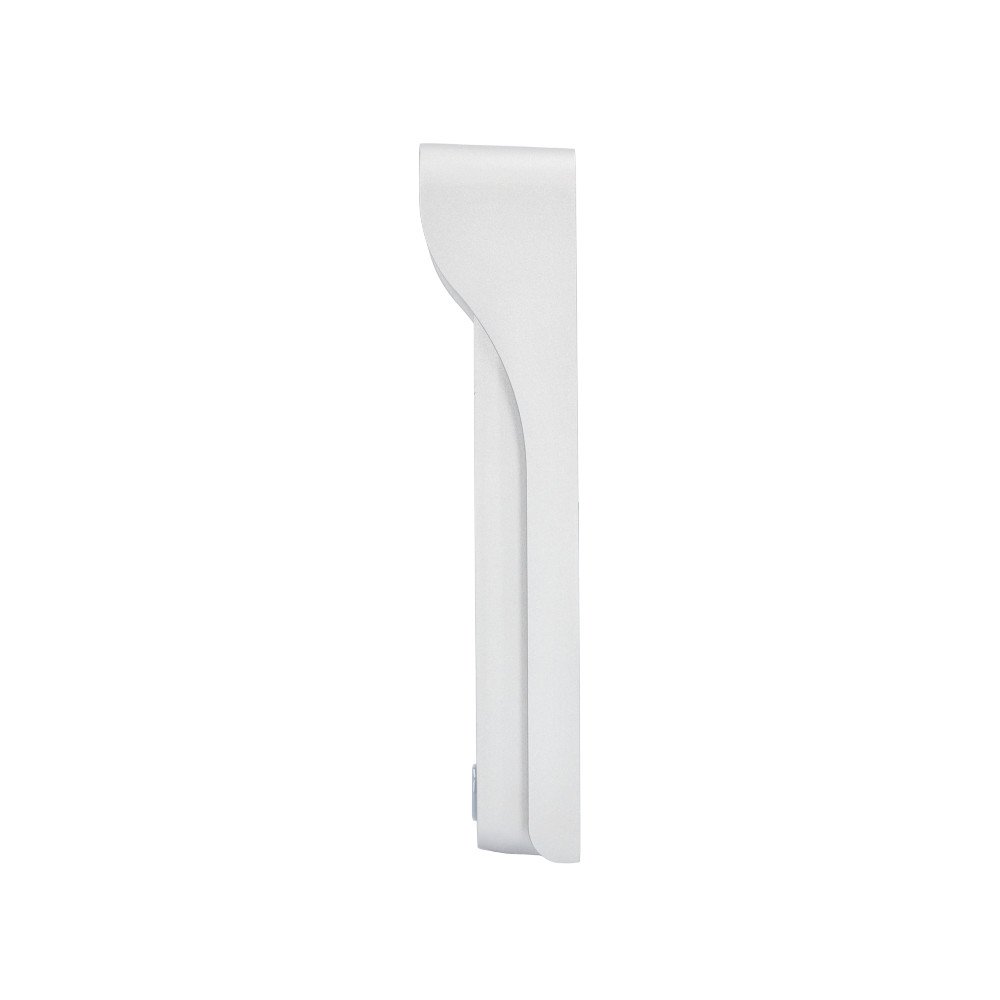

• Surface-mounted installation with a roof - no need to make additional holes in the wall/facade;
• Voltage output for electric strike - simplified installation to a minimum;
• 2 Mpx camera, 120° viewing angle – high detail;
• Infrared illumination at night - visibility even in the absence of light;
• Metal housing with IP65 standard;
• Card and key fob reader and keyboard – many opening methods;
• Exit button connector - opening the gate or gate from inside the property at any time by pressing the installed and connected button;
• Reed switch connector – possibility of informing about an open/unlatched gate;
• Dimensions with roof (length x width x height) - 160.5 × 63.5 × 35 [mm].
