- Output voltage: 24 V DC
- Output voltage regulation: 24...28 V
- Power supply current capacity: 20 A
- Power supply power: 480 W

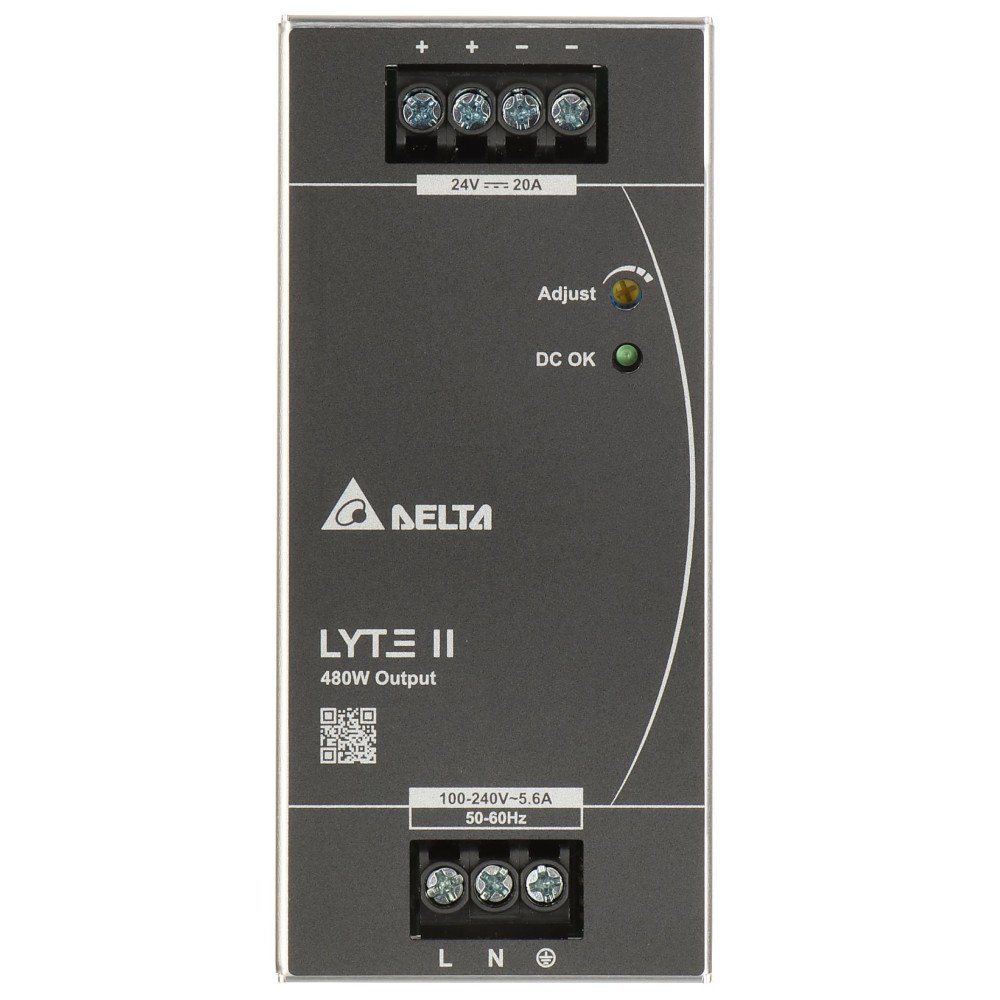

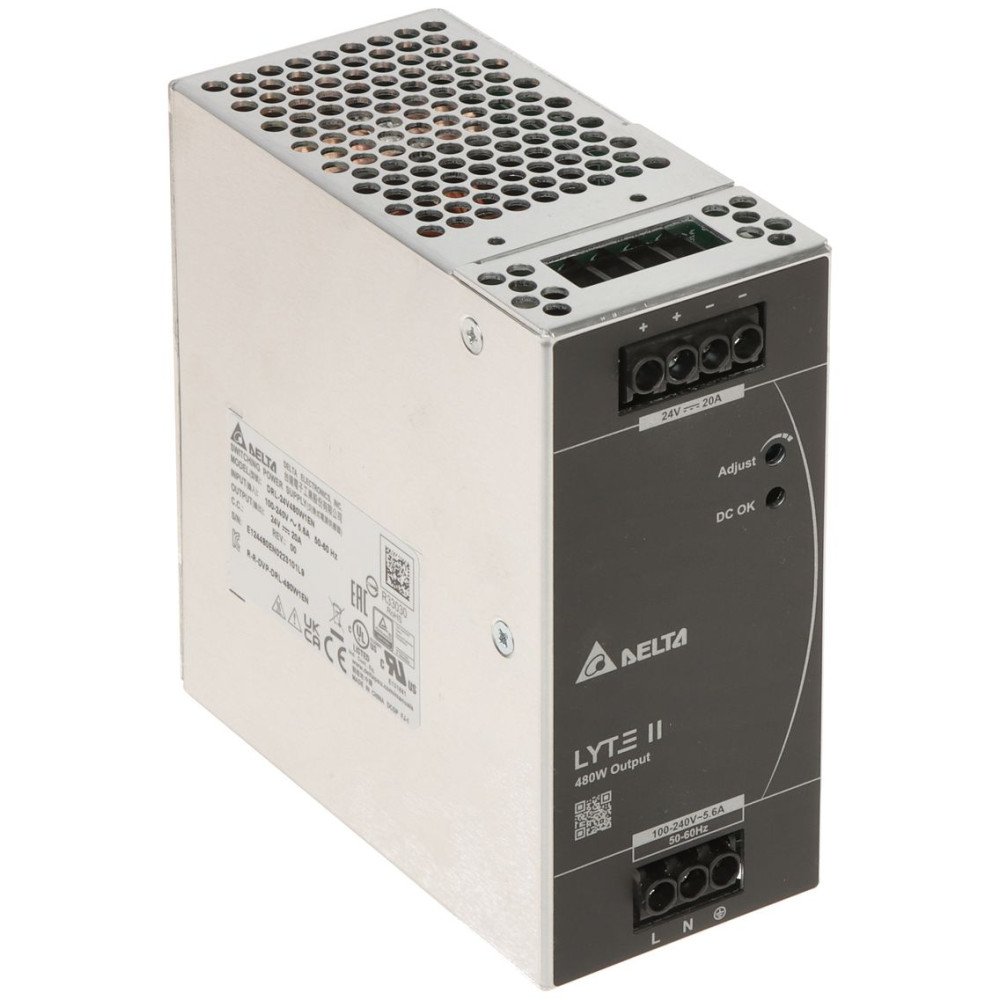

SWITCHING POWER SUPPLY DRL-24V480W-1EN
€746.88
Tax included
- Output voltage: 24 V DC
- Output voltage regulation: 24...28 V
- Power supply current capacity: 20 A
- Power supply power: 480 W
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

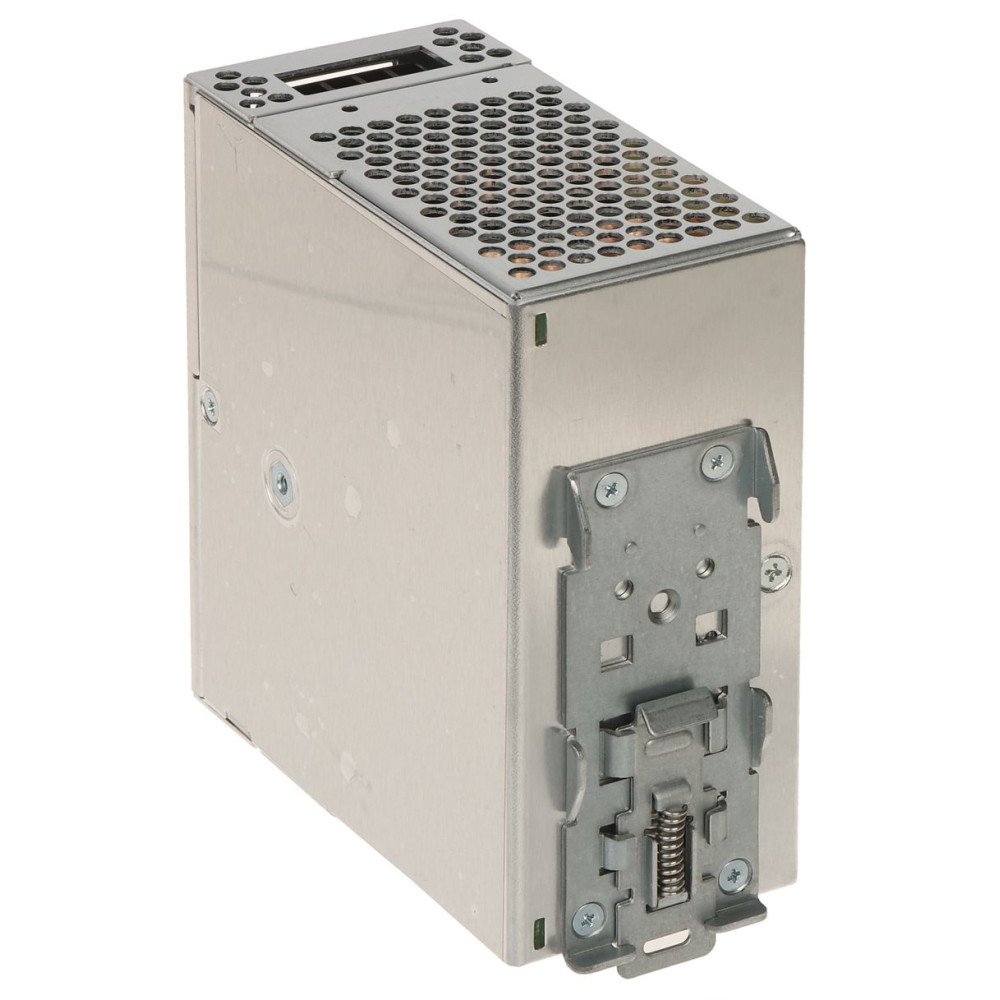

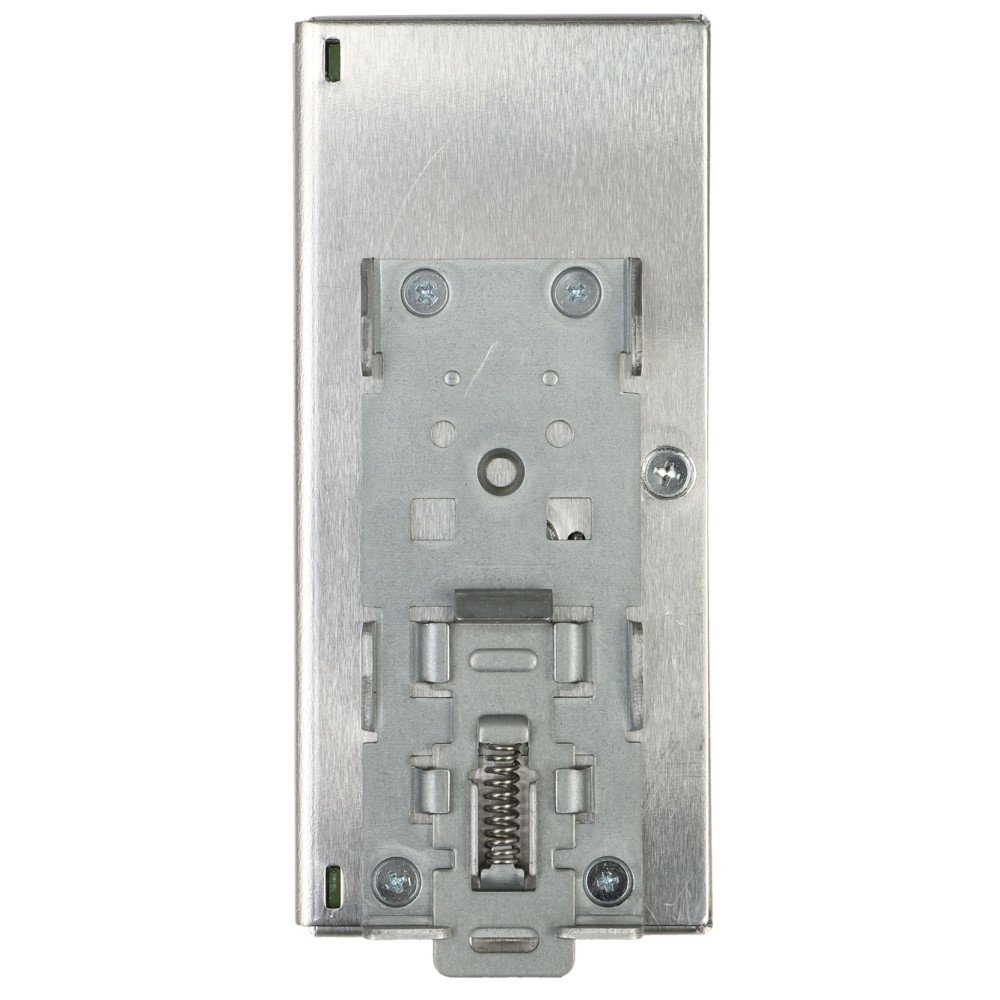

Switching power supply installed on a TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
| Power supply type: | Impulse |

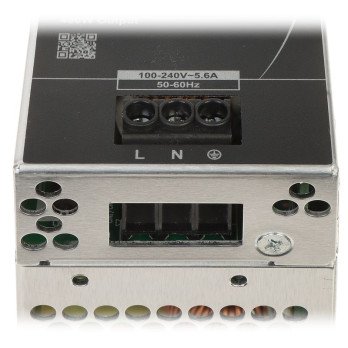

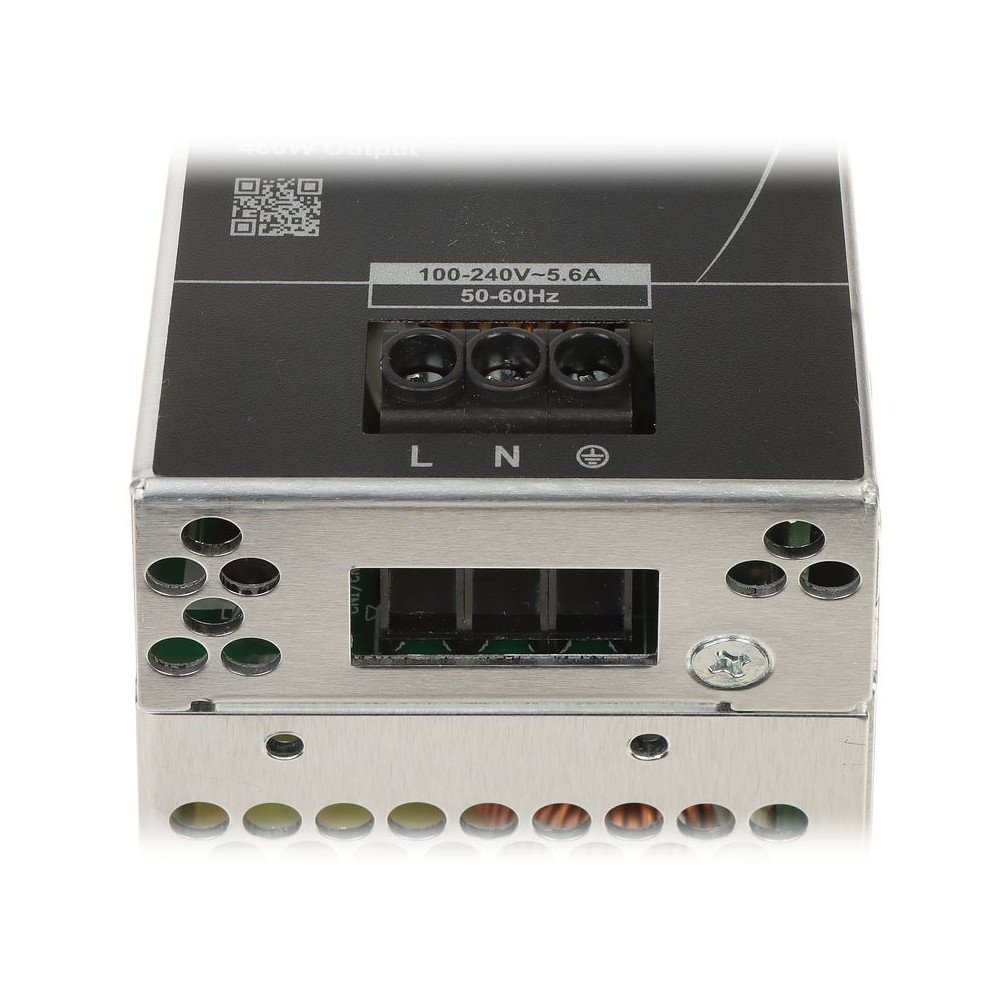

| Supply voltage: | 90 ... 264 V AND |

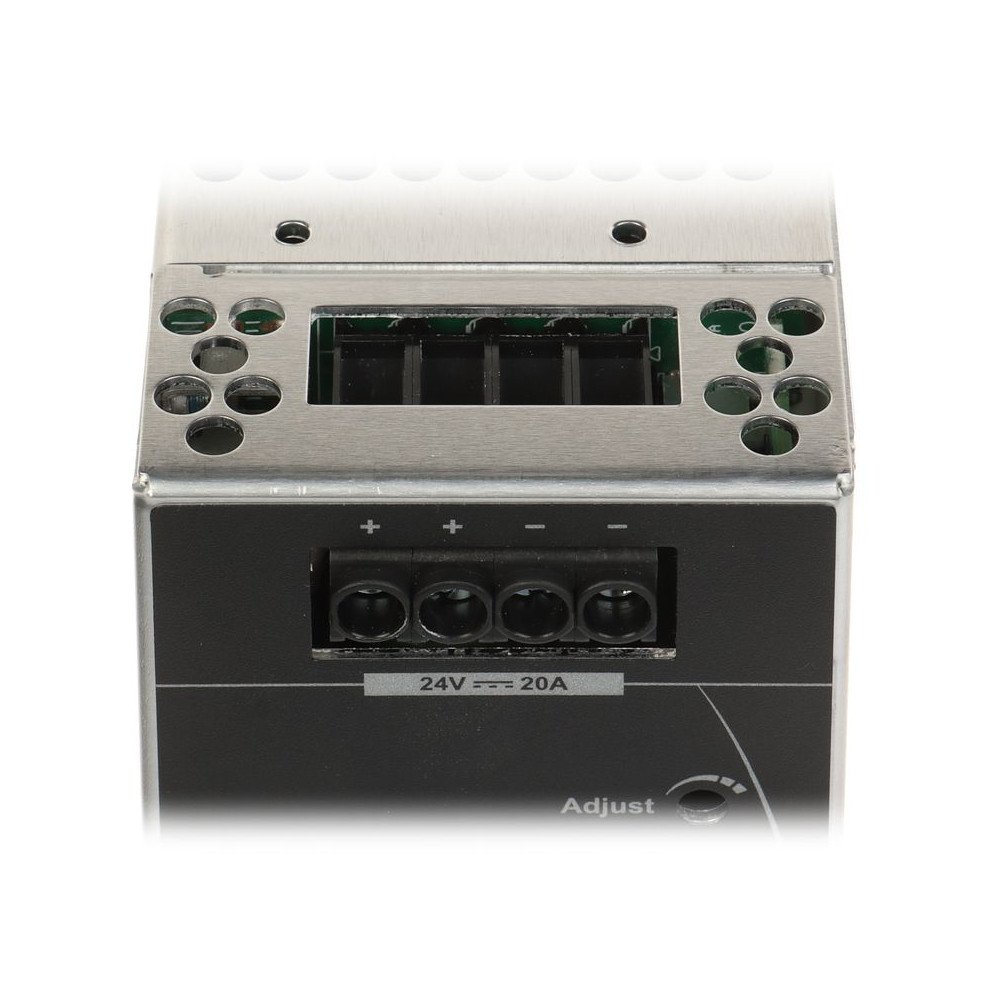

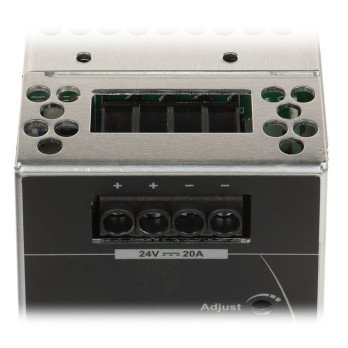

| Output voltage: | 24 V DC |
| Output voltage regulation: | 24 ... 28 V |
| Voltage Tolerance: | ± 1 % |
| Power supply current efficiency: | 20 A |
| Power supply power: | 480 W |
| Number of outputs: | 2 pcs. |
| Efficiency: | 93 % |
| Housing type: | FROM |
| MTBF (mean time between failures): | 700,000 hours |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 3 G for 60 minutes |
| Security: |
|
| Operating temperature / relative humidity: | -30 °C ... 70 °C / 20 % ... 90 % |
| Libra: | 0.87 kg |

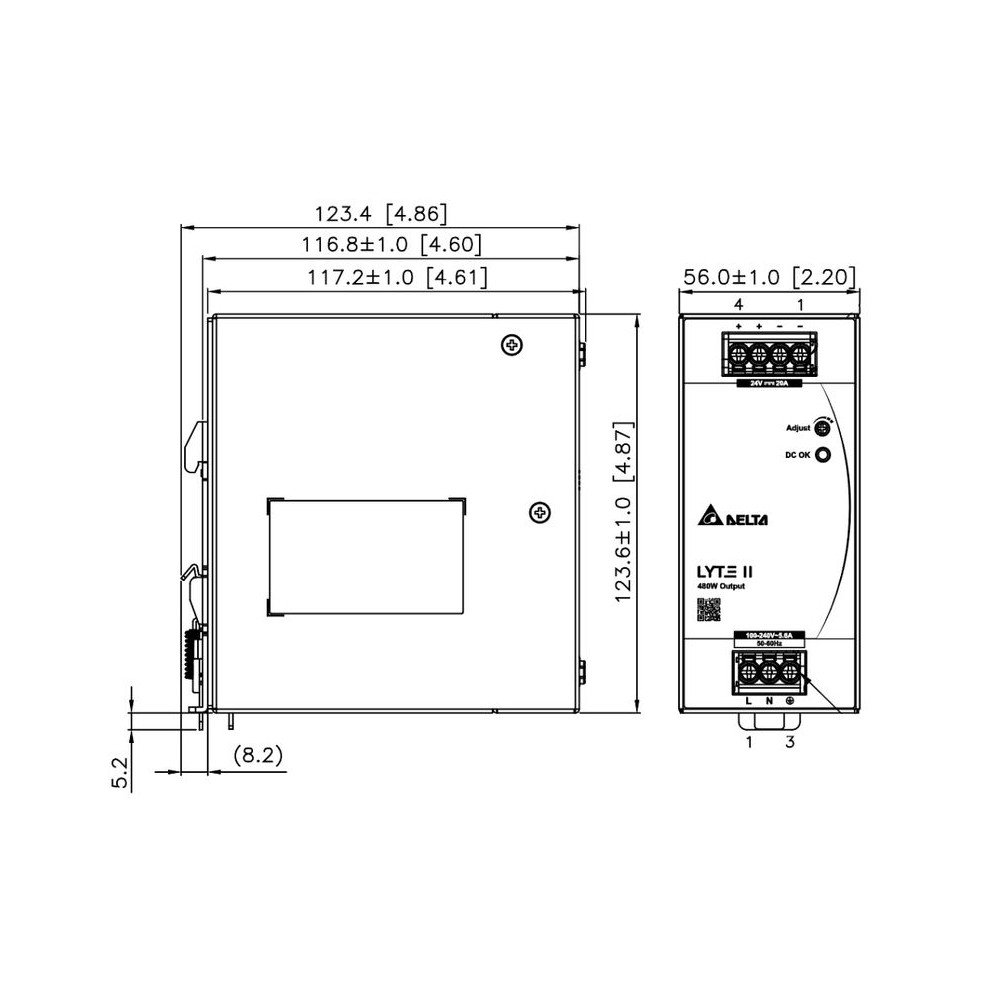

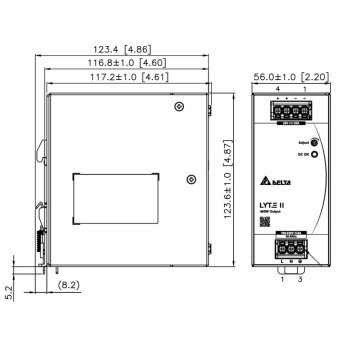

| Dimensions: | 56 x 123.4 x 123.6 mm |
| Manufacturer / Brand: | Delta Electronics |
| Guarantee: | 5 lat |
