- Power supply type: Switching
- Output voltage: 12 V DC
- Current capacity (total): 8 A
SWITCHING POWER SUPPLY 12V/8A/PA9
€134.60
Tax included
- Power supply type: Switching
- Output voltage: 12 V DC
- Current capacity (total): 8 A
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

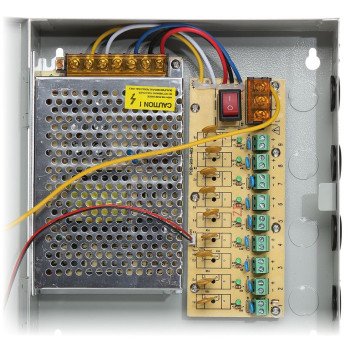

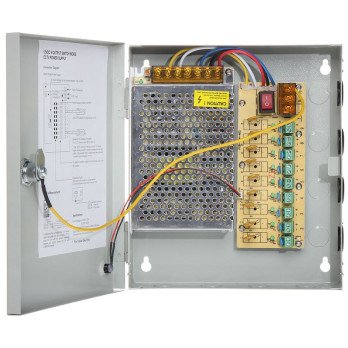

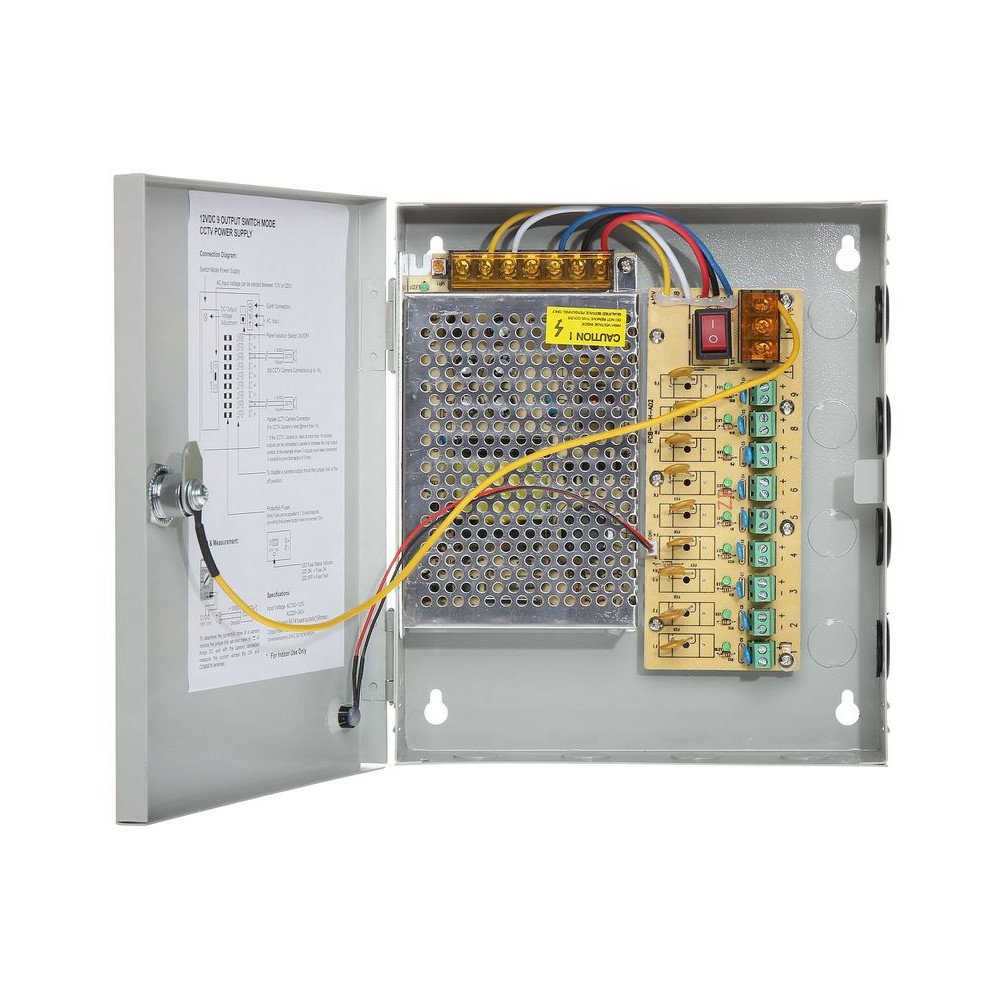

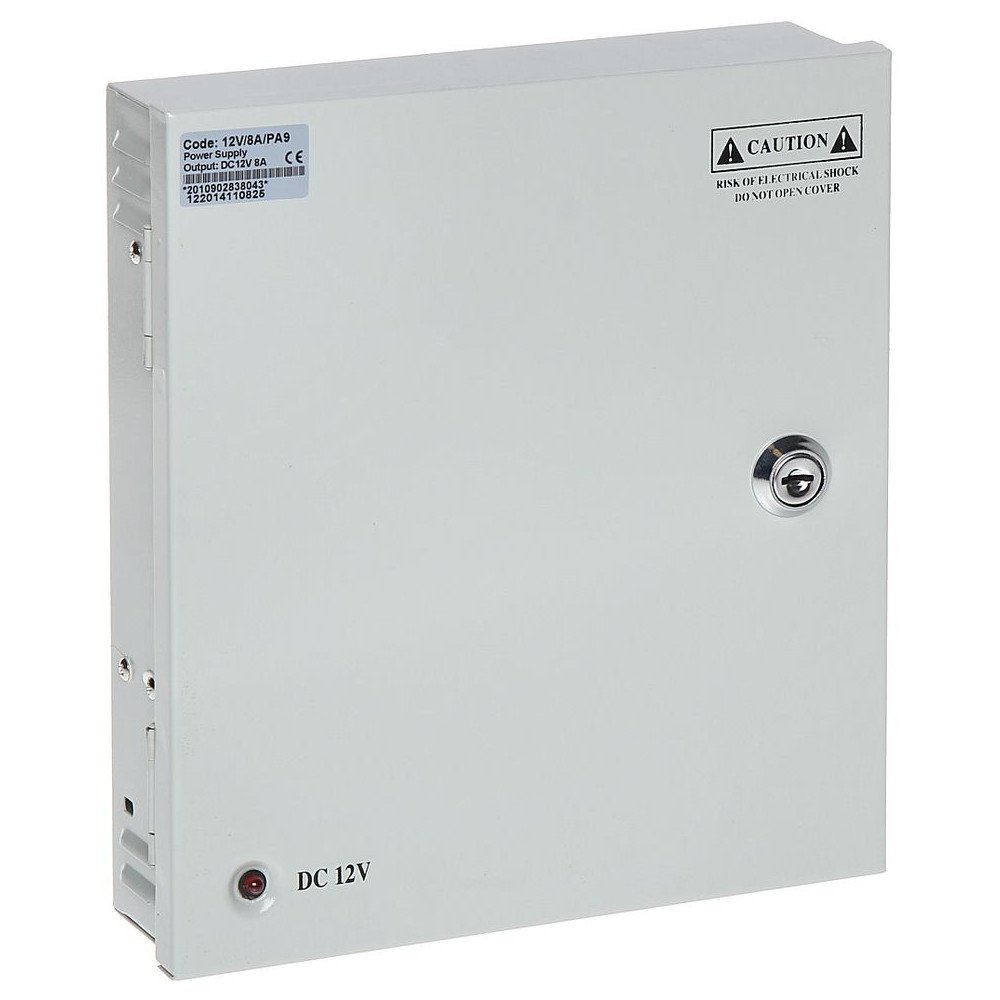

The power supply is placed in an aesthetic, solid metal housing
The operation of the power supply is indicated by an LED diode located in the housing
The output voltage of the power supply is stabilized

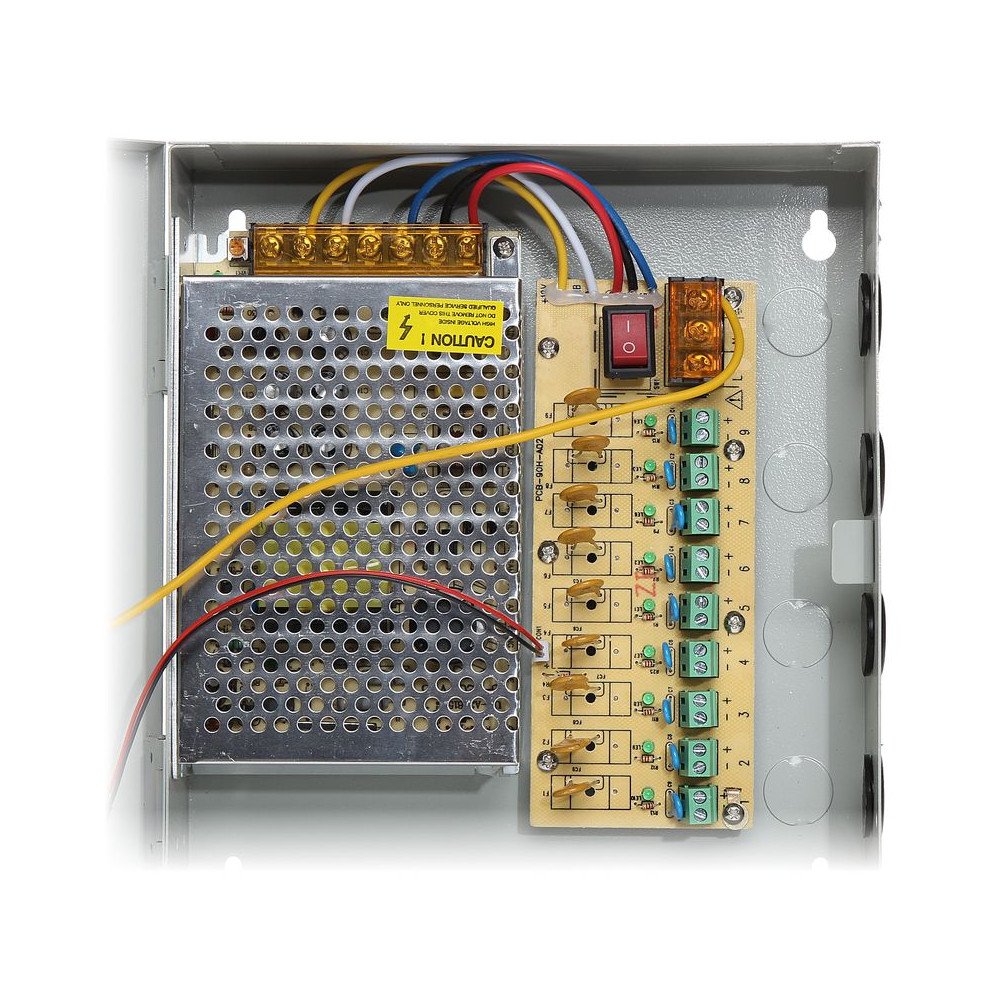

The power supply has 9 independent current paths (supports up to 9 devices)
The maximum load of a single output is 1.5A, but the total should not exceed 8A
When all 9 outputs are used evenly, the maximum load for a single output is 880mA
Each current path is protected with a polymer fuse and has an LED indicating the voltage at a given output
Attention! If the power supply is intended for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current.
Pay special attention to proper cooling of the power supply during operation!
| Power supply type: | Impulse |
| Output voltage: | 12V DC |
| Output voltage regulation: | 11 ... 12.7 V |
| Current efficiency (total): | 8 A |
| Max output current of single output: | 1.5 A |
| LED signaling: | NO |
| Security: |
|
| Input voltage: | 230 V AND |
| Moc: | 96 W |
| Number of outputs: | 9 |
| Connector type: | Cable clamps |

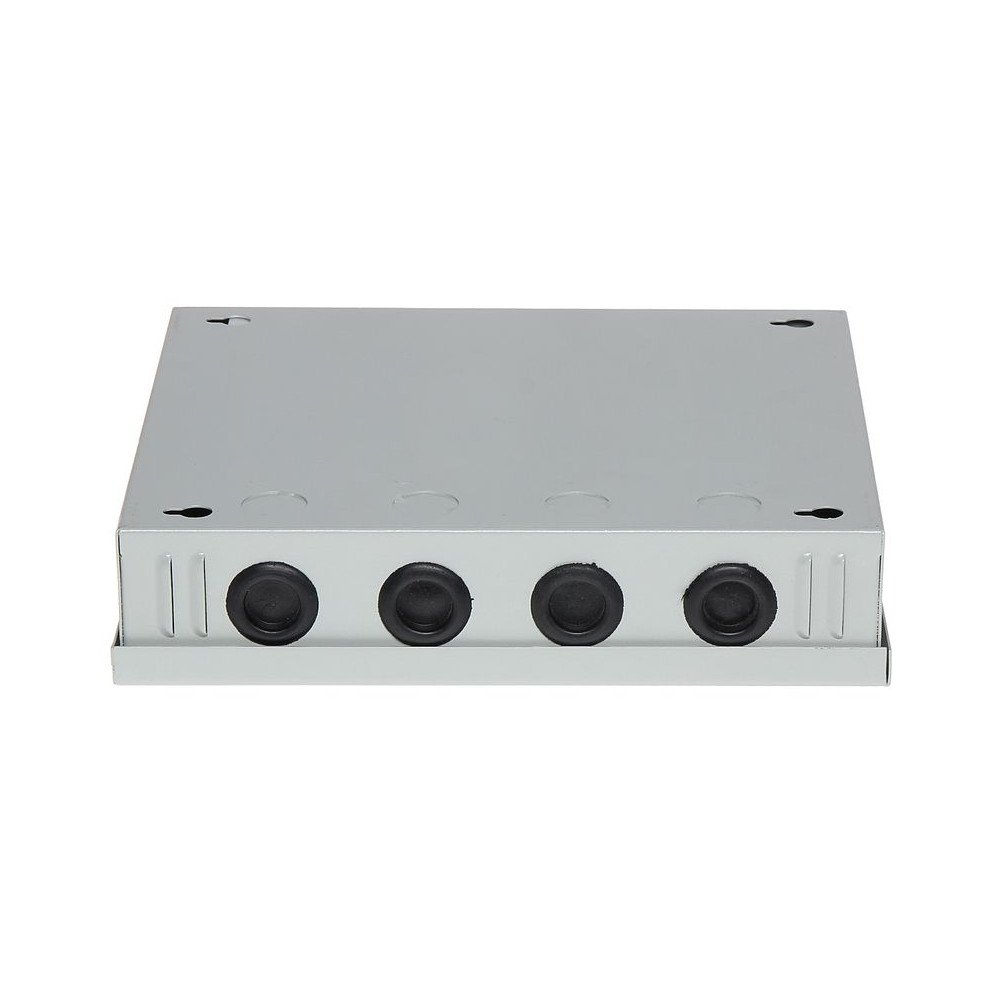

| Housing type: | Metal, mounted on the wall |
| Lockable: | NO |
| Libra: | 1.47 kg |
| Dimensions: | 236 x 207 x 52 mm |
| Guarantee: | 2 lata |
