TESTER DO KABLI CS-NT24-PRO

€1,188.72

Tax included

Tested cables: STP / UTP cat. 5, 5e, 6, 6e - RJ45 (8P8C), RJ11 (6P4C), Coaxial cable
Selected features: TDR 2.0 test: Cable damage point search, HD video signal level meter on coaxial cable

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

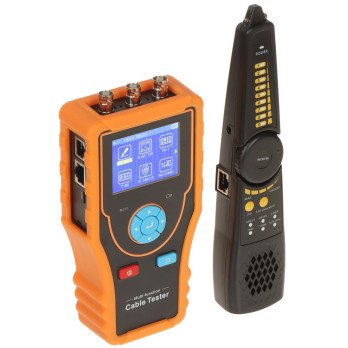

The CS-NT24-PRO tester is used to measure cabling continuity, check the UTP cable type and detect the condition of the telephone line

The device allows you to perform measurements on telephone line cables, twisted pair cables and coaxial cables

An additional function is the ability to search for a specific wire among a larger number of tangled cables or in a large bundle of wires

The tester has a built-in TDR reflectometer, allows you to test the cable length and attenuation as well as find a break point or short circuit.

HD video level meter on coaxial cable, can detect the peak value of TVI/CVI/AHD/CVBS signal

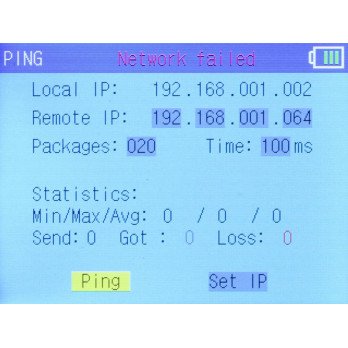

The PING test checks whether the Ethernet port of an IP camera or other network equipment is working properly and whether the IP address is free

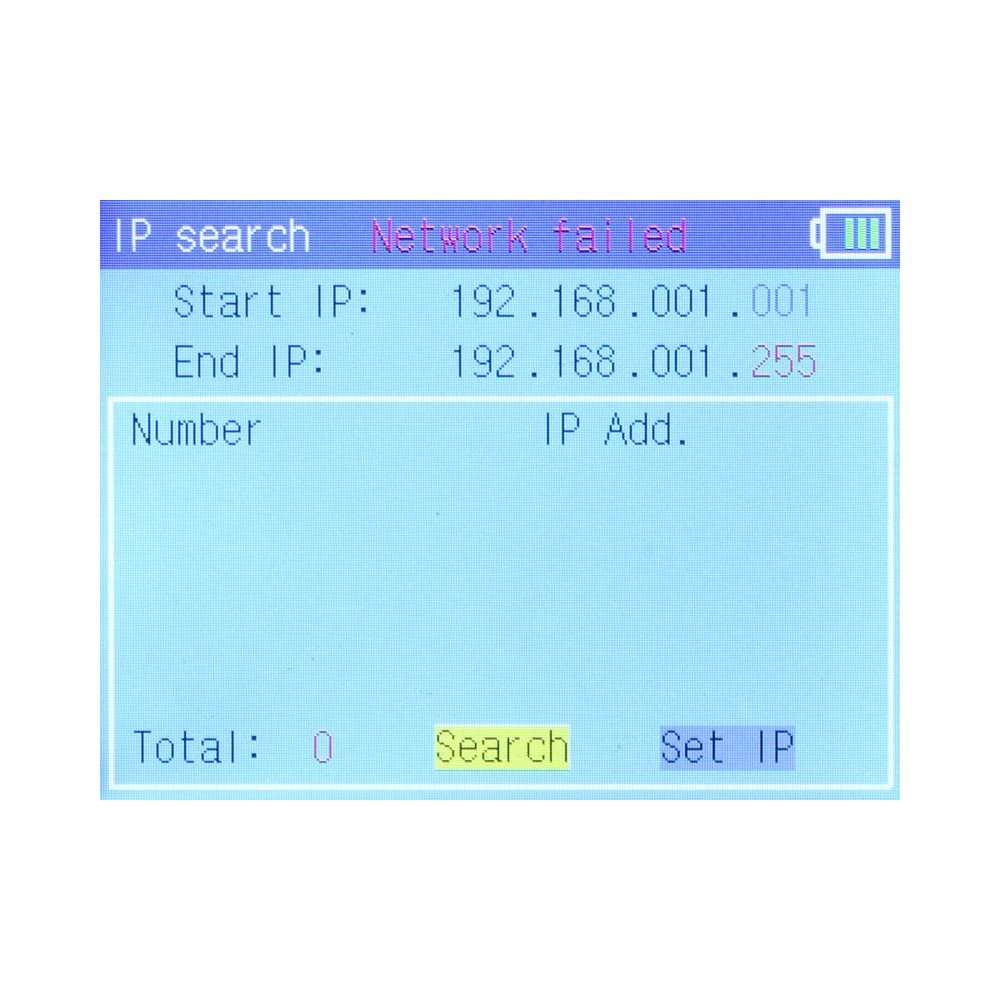

The device finds the IP address of the camera or other connected network equipment

Large, readable LCD display

The device uses a built-in Li-Ion battery, which guarantees operation for up to 16 hours on a single charge

Tested cables:	STP / UTP kat. 5, 5e, 6, 6e - RJ45 (8P8C), RJ11 (6P4C), Kabel koncentryczny
Power supply:	Cable tester: Li-Ion battery 3.7 V / 2000 mAh, USB DC 5V/2A power supply (included) Probe : 2 x 1.5V battery, type AA/LR6/FR6 (not included)
Typical battery charging time:	3 h
Battery life:	16 h
Selected features:	2.4" LCD display - 320 x 240 px Cable test and cable locator: cable type, UTP cable sequence and type test, RJ45 connector damage TDR - RJ45 test: pair condition, length, attenuation, reflection coefficient, impedance, inclination - Cable lengths max. 180 m TDR 2.0 test: Finding the point of cable damage - Cable length max. 1200 m, Detecting the connected port in the switch PING test: correct operation of the IP camera's Ethernet port, correct IP address IP network scanning Network port and duplex mode identification Identification of the wire in the bundle Telephone line status detection Detection and location of a cable break or short circuit HD video signal level meter on coaxial cable Automatic shutdown : 10 ... 120 minutes
Libra:	0.34 kg - Cable tester 0.11 kg - Probe
Dimensions:	175 x 88 x 40 mm - Tester do kabli 220 x 47 x 32 mm - Sonda
Guarantee:	2 lata
