- Optical fiber type: multimode (MM) - G.651, single mode (SM) - G.652 G.657, single mode (DS / NZDS) non-zero shifted dispersion (G.655)
- Connection to computer: USB 2.0

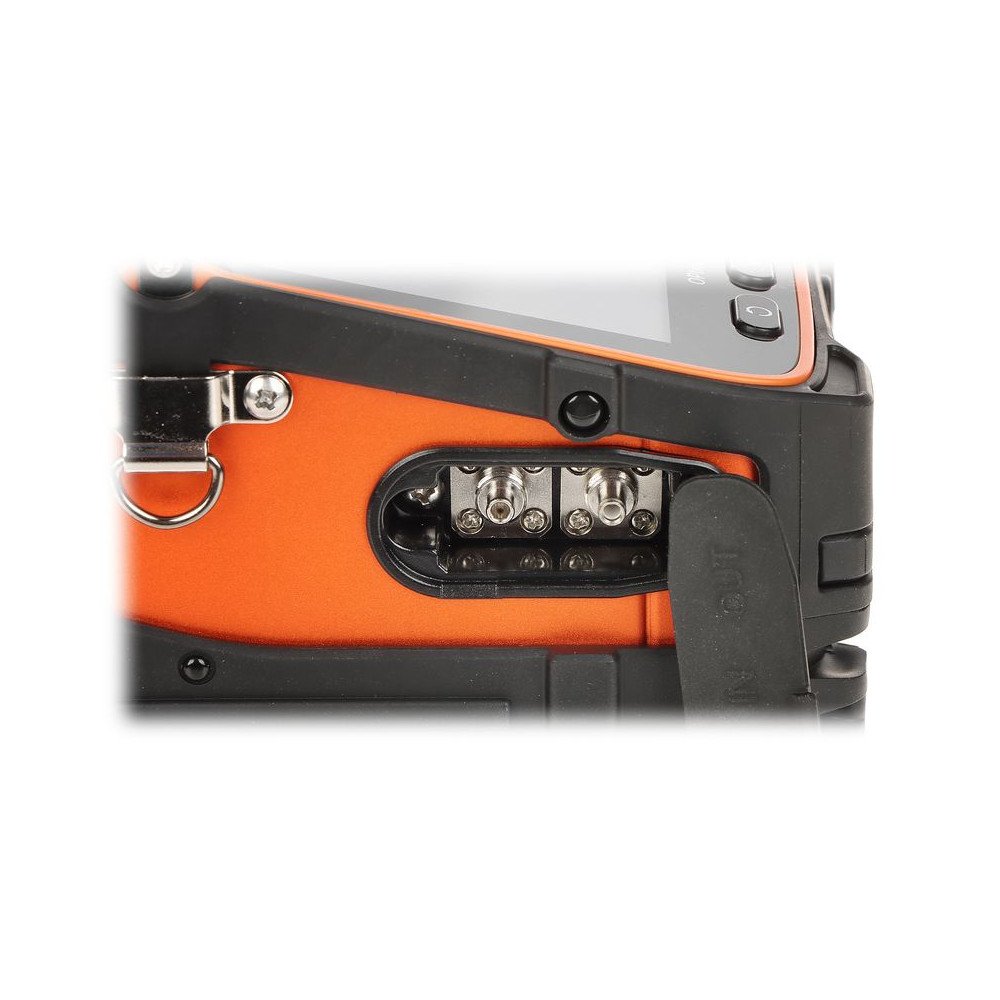

- Selected functions: Built-in VLS optical power meter (VFL) - visual optical fiber fault locator

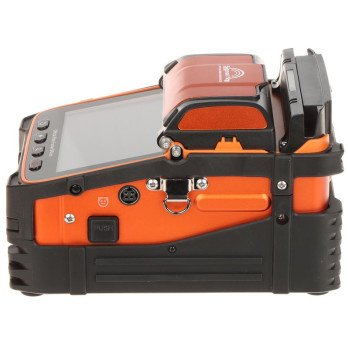

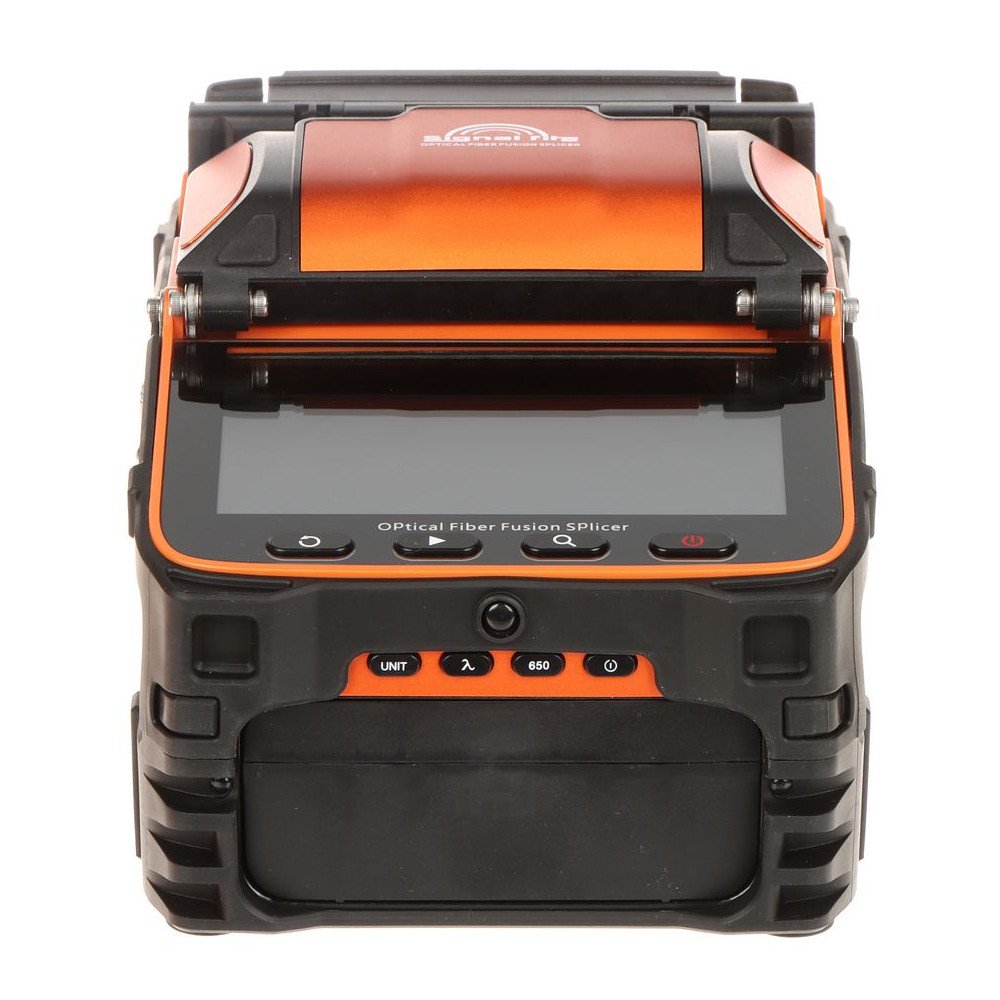

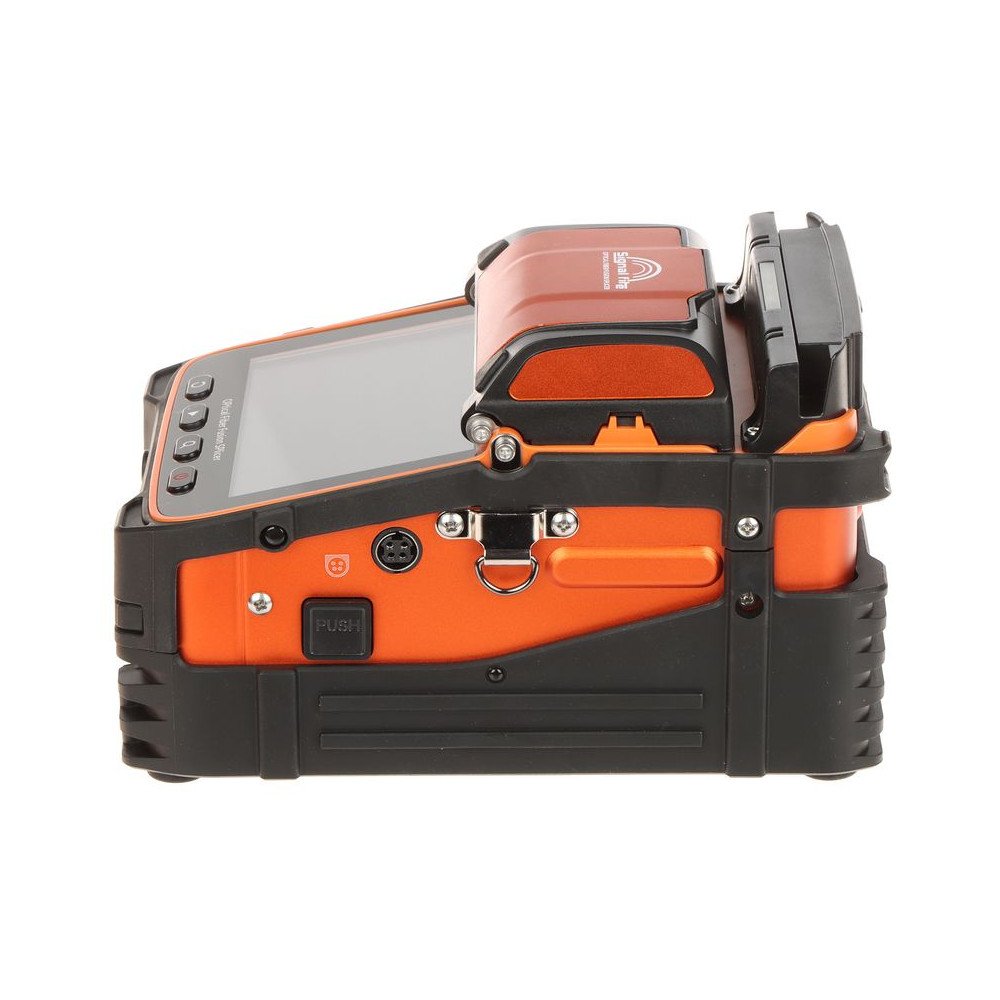

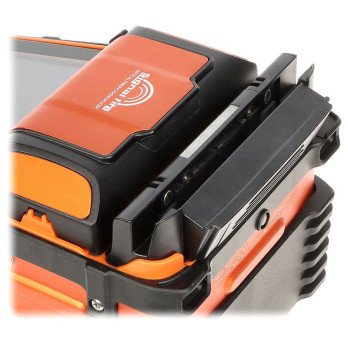

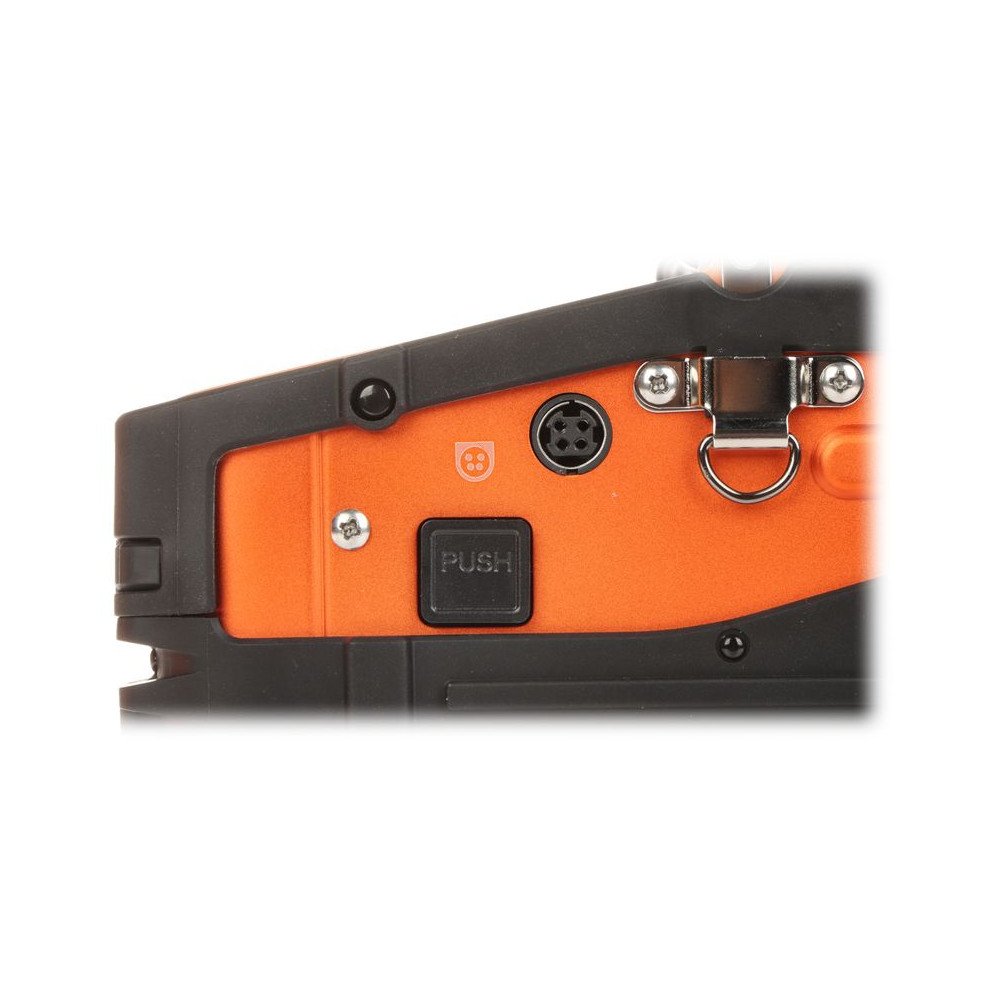

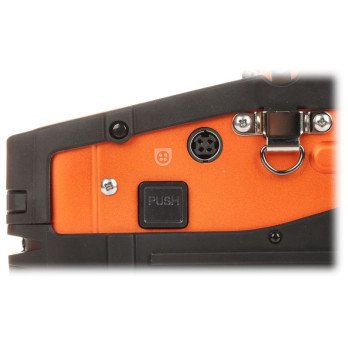

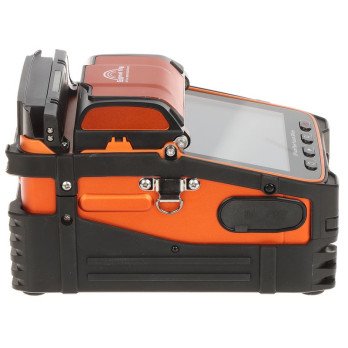

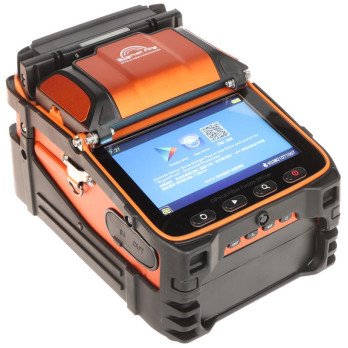

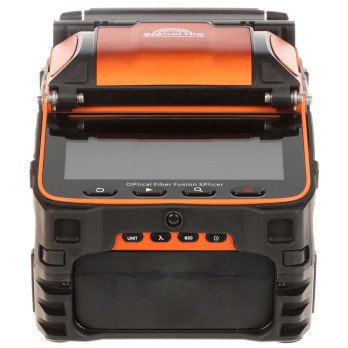

AI-9 fiber optic splicer
€5,982.77
Tax included
- Optical fiber type: multimode (MM) - G.651, single mode (SM) - G.652 G.657, single mode (DS / NZDS) non-zero shifted dispersion (G.655)
- Connection to computer: USB 2.0
- Selected functions: Built-in VLS optical power meter (VFL) - visual optical fiber fault locator
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The AI-9 fiber optic splicer, thanks to fast image processing and an advanced core centering process, allows automatic welding with excellent parameters in less than 10 seconds.
Attention!
By default, the device is configured in automatic mode
In the vast majority of situations, no adjustments to the default settings are required
Calibration is also not required - it should only be performed if there are problems with obtaining a correct weld

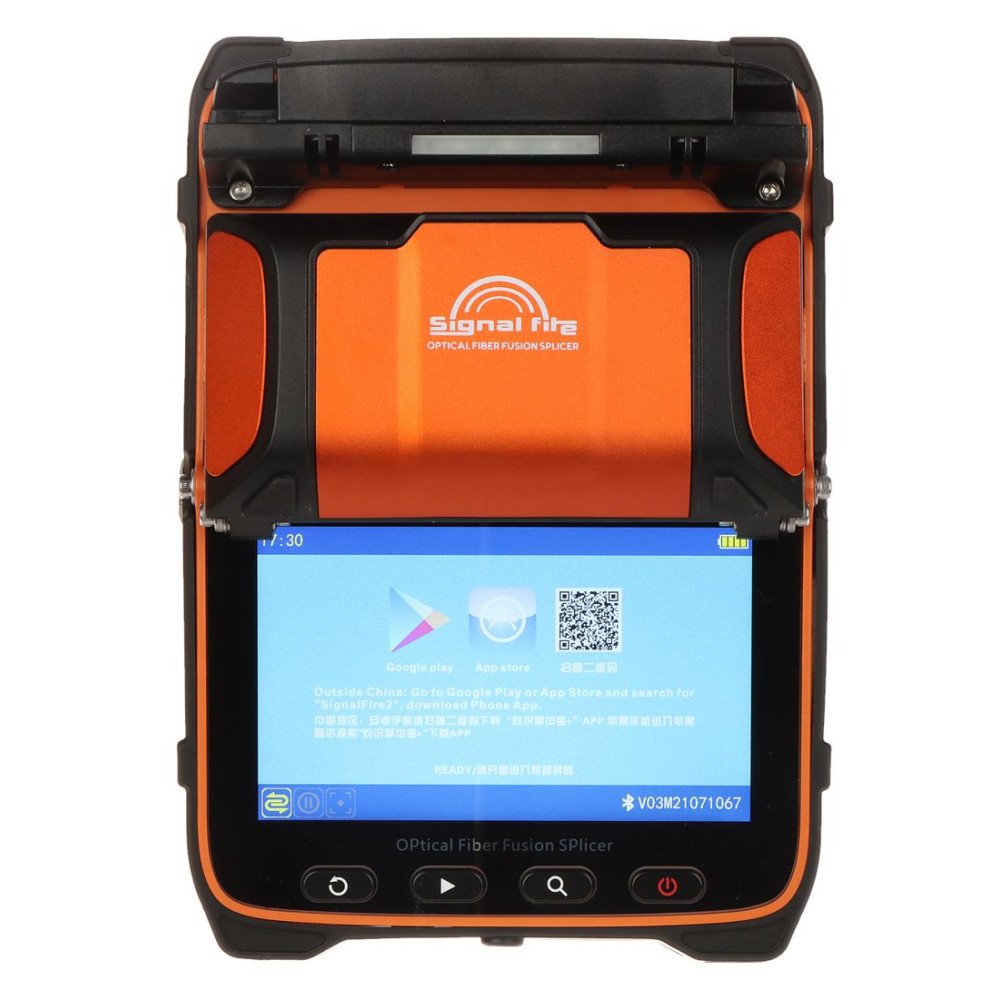

The application, available in the Google Play store and AppStore, is required, for example, if you want to change the default welding or calibration program due to extremely changing environmental conditions.
Changing parameters and configuring the welding machine is done only via the Bluetooth interface using dedicated applications for Android / iPhone
| Optical fiber type: |
|
| Jacket Diameter: | 80 ... 150 µm |
| Primary covering diameter: | 0.1 ... 1 mm |
| Length of peeled fiber: | 16 mm |

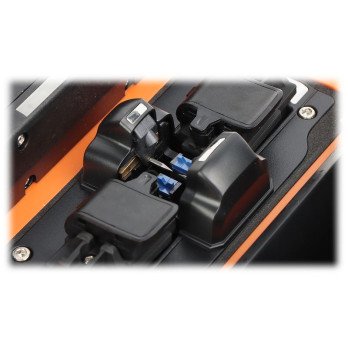

| Centering method: | centering to the core, centering to the shell, manually |
| Display: | 5.1" liquid crystal (LCD), 800 x 480 px Image: simultaneous display in two planes (X-Y) |
| Average attenuation: | 0.01 dB (MM) 0.025 dB (SM) 0.04 dB DS / NZDS |
| Average welding time: | 5 s |
| Average heating time: | 15 s |
| Welding programs: | (factory programs) + (user programs) |
| Internal backlight: | NO |
| Internal heating: | NO |
| Set weld parameters: |
|
| Splice memory: | NO |
| Mechanical strength test: | 2 N |
| Connection to computer: | USB 2.0 - Ability to charge smartphones |
| Selected features: |
|
| Power supply: | 13.5 V DC / 4.8 A (power supply included) |
| Battery powered: | 11 V DC Li-Ion battery, 7800 mAh |
| Electrode life: | 3,000 welds |
| Working temperature: | -15 °C ... 50 °C |
| Permissible relative ambient humidity: | 95 % (non-condensing) |
| Libra: | 2.16 kg |
| Dimensions: | 202 x 145 x 128 mm |
| Manufacturer / Brand: | Signal Fire |
| Guarantee: | 3 lata |
