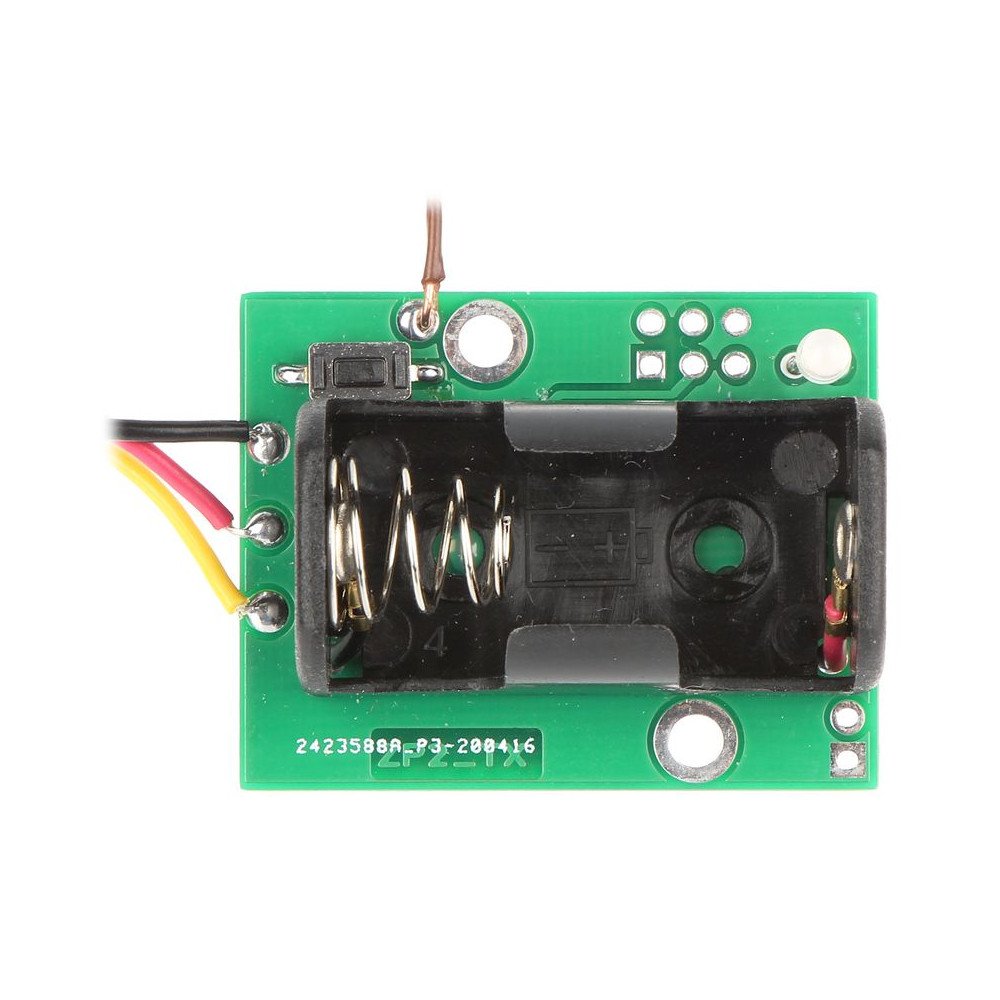

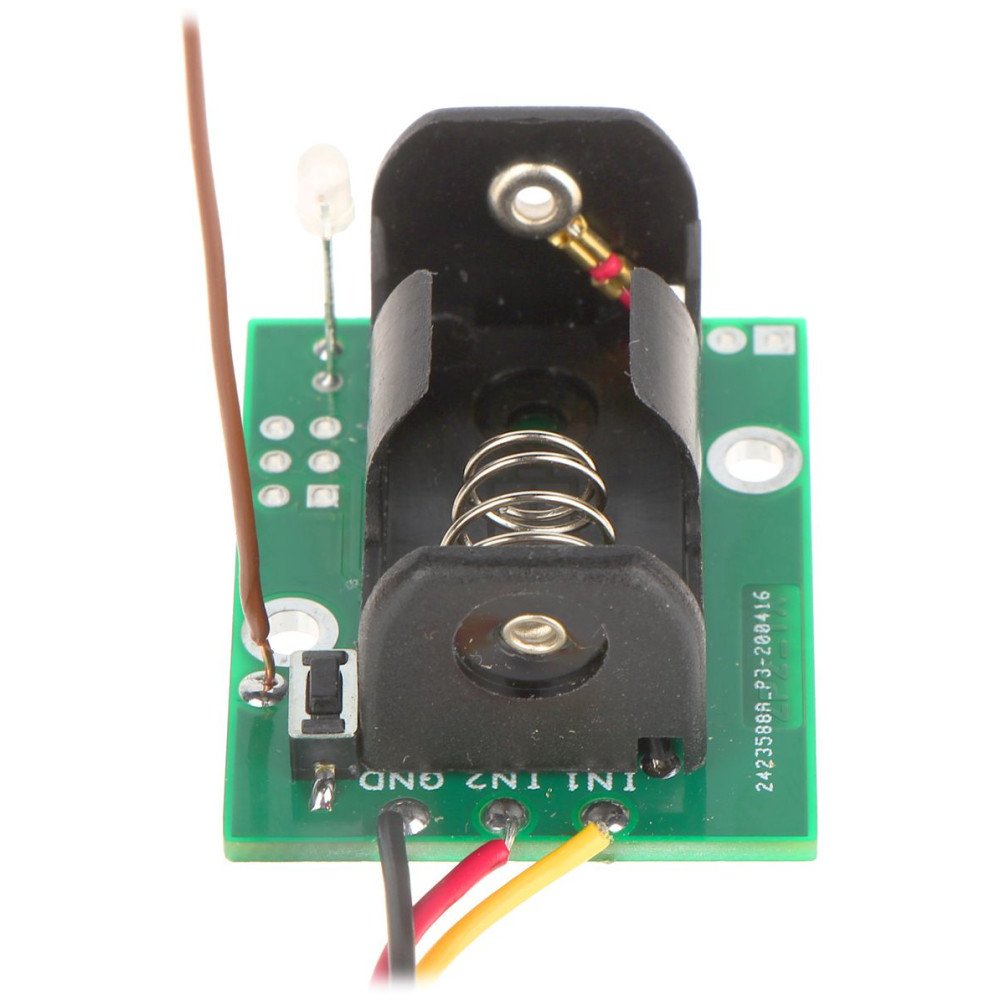

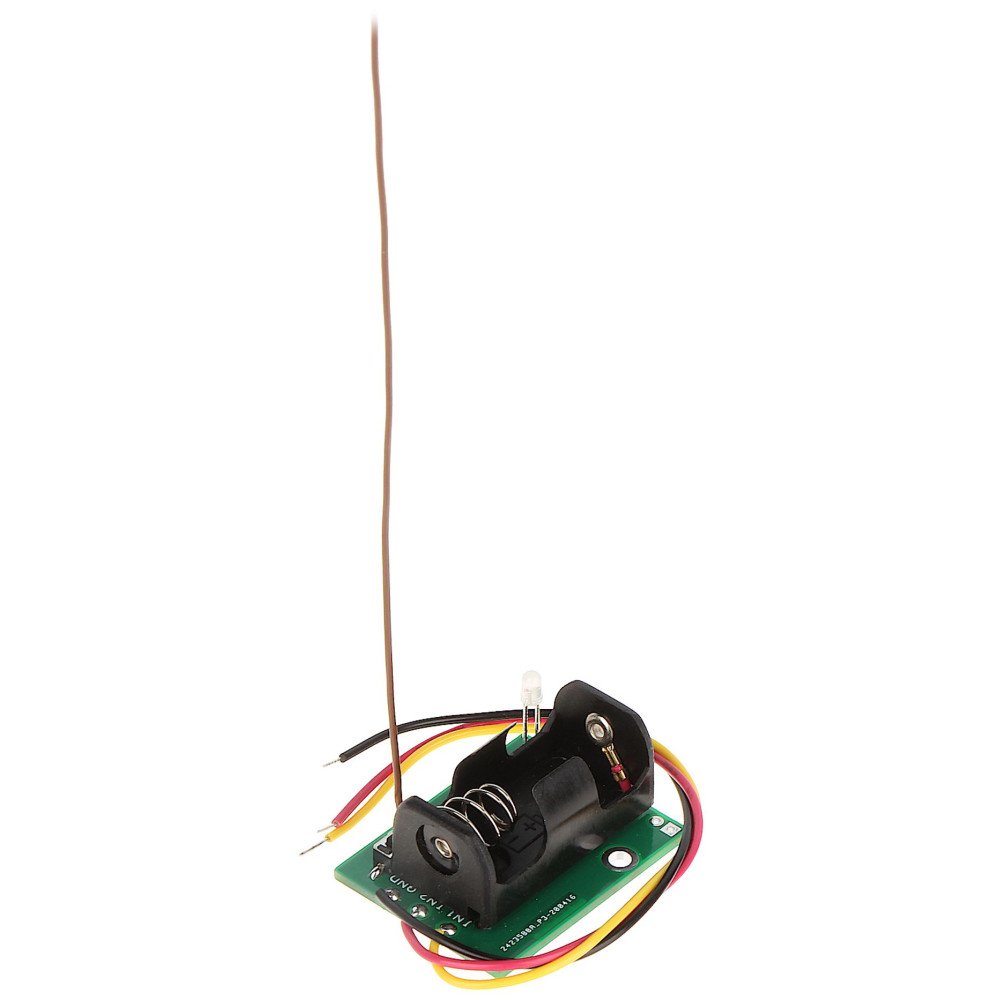

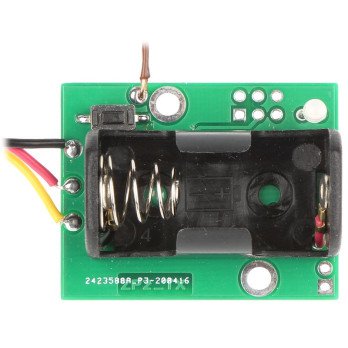

ZP-2/TX WIRELESS SYSTEM TRANSMITTER

The ZP-2 wireless system enables wireless control of devices using the ISM 433 MHz band

Remote control includes 2 separate channels

Each channel is controlled by one dedicated input in the transmitter

On the receiver side, a separate NO/NC relay is assigned to each channel

The maximum load of each relay is 2300 W (AC), making the system suitable for a very wide range of applications.

The ZP-2 device set allows you to wirelessly control, for example, lighting, electrically controlled sprinklers, power supply for household appliances, etc.

The system can also be used to control automatic roller shutters or a gate

The method of controlling the ZP-2/TX transmitter also makes the device perfect for integration with access control and alarm systems, enabling the installation of e.g. door opening buttons, panic buttons or detectors in places where laying additional cables is difficult or impossible.

The system consists of a transmitter and a receiver, but connections in any configuration are possible: (1:1, 1:N, N:1, N:N)

A maximum of 128 transmitters can be assigned to each receiver, while the number of receivers that can work with one transmitter is limited only by the transmission range.

The system allows operation in one of three modes: monostable (the relay is switched on as long as the input in the transmitter is closed), bistable (a momentary closing of the input causes a change in the operating state of the relay) and time (a momentary closing of the input causes a change of the relay state for a defined time).

Attention!

The ZP-2/TX device requires the ZP-2/RX receiver to operate
