- Output voltage: 12 V DC
- Output voltage regulation: 10.8... 13.2 V
- Power supply current capacity: 0.84 A
- Power supply power: 10 W

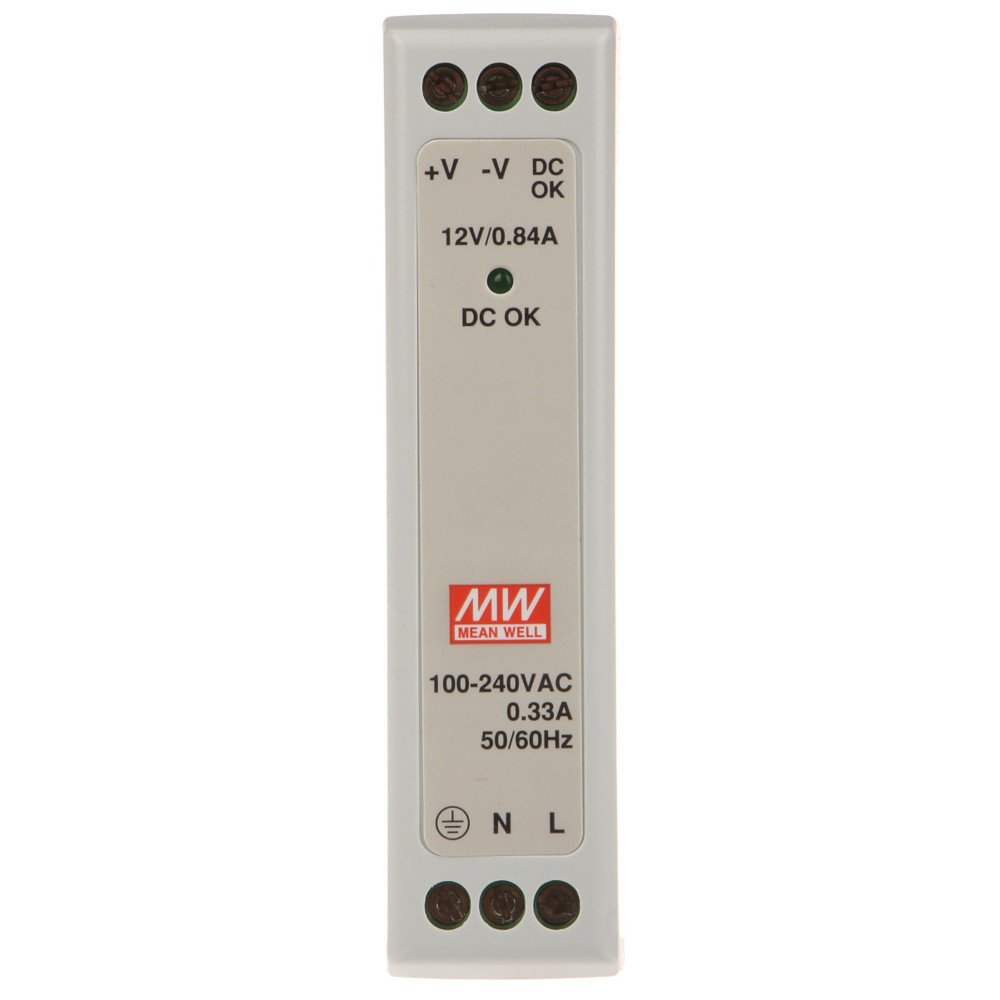

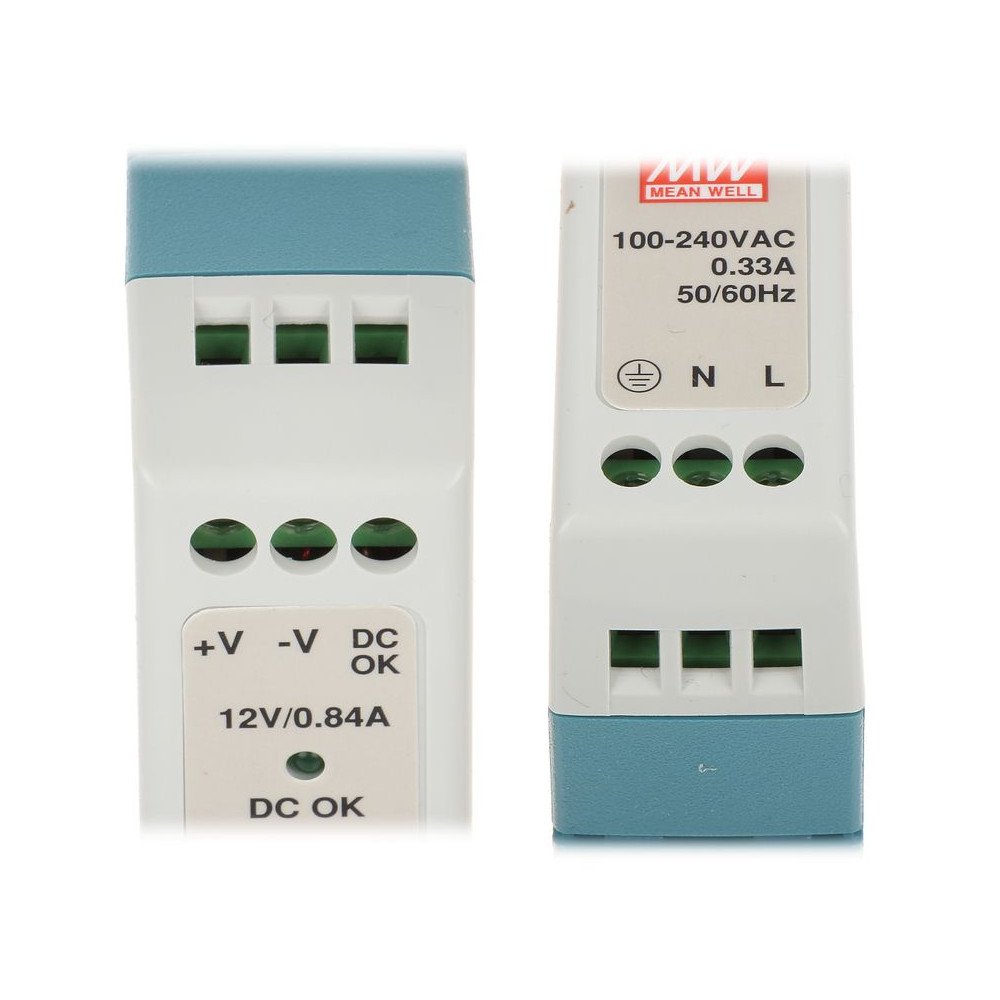

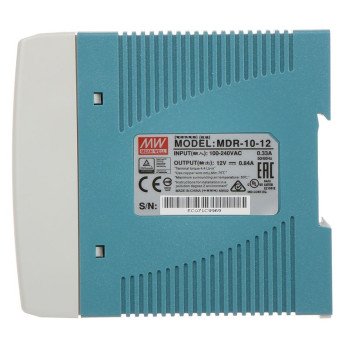

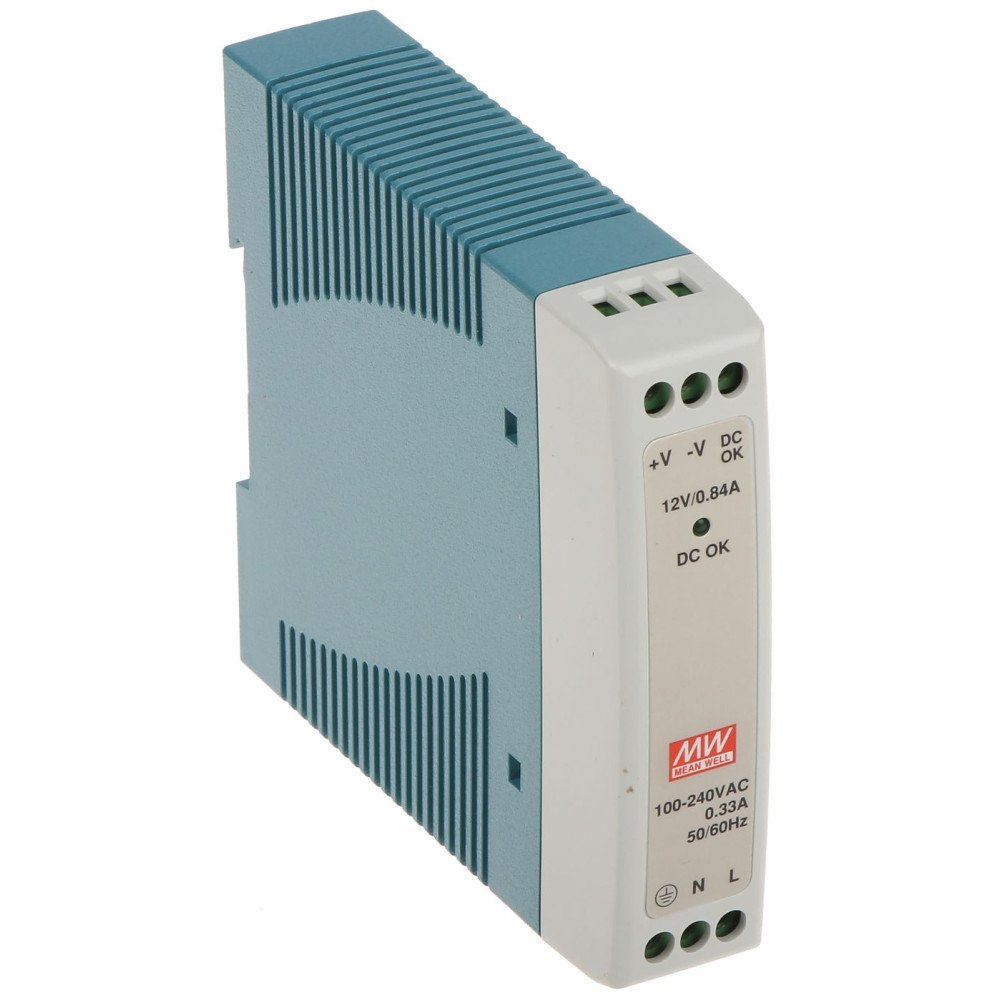

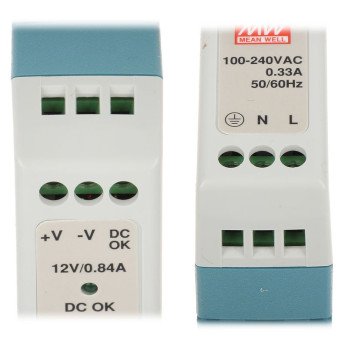

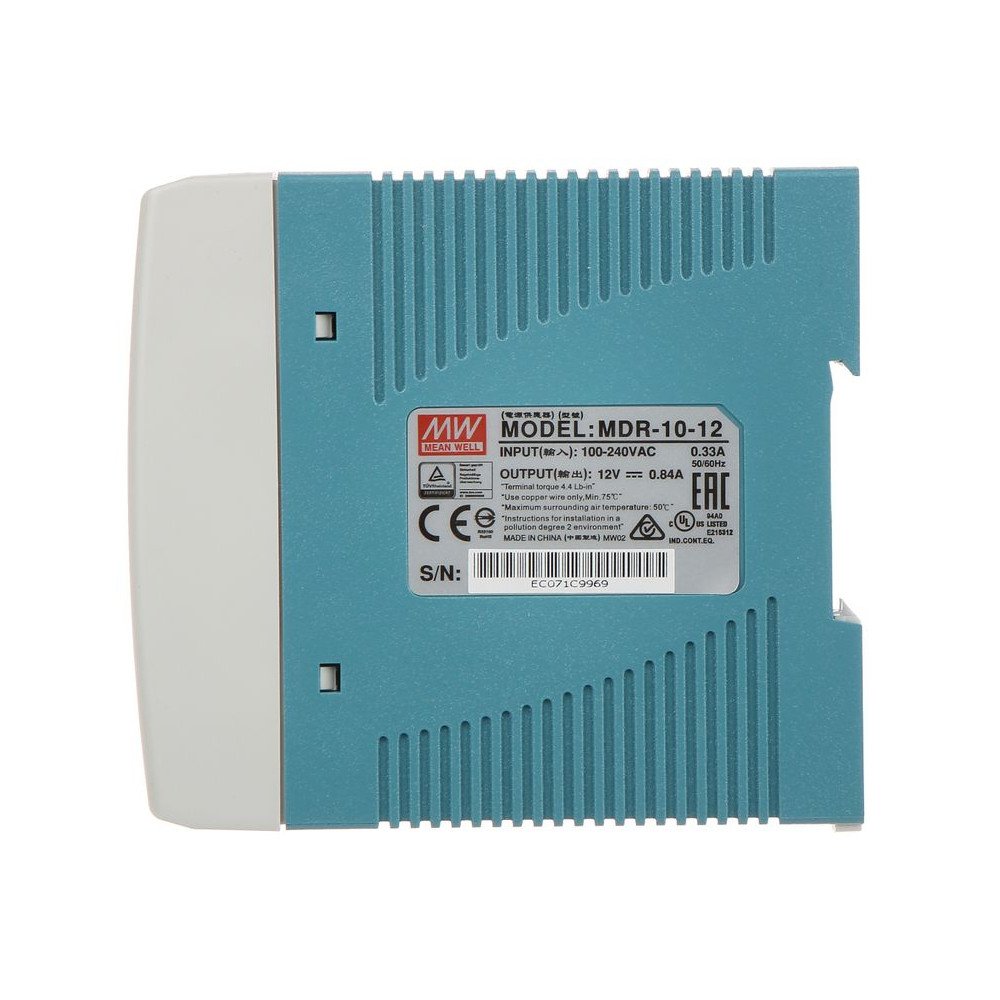

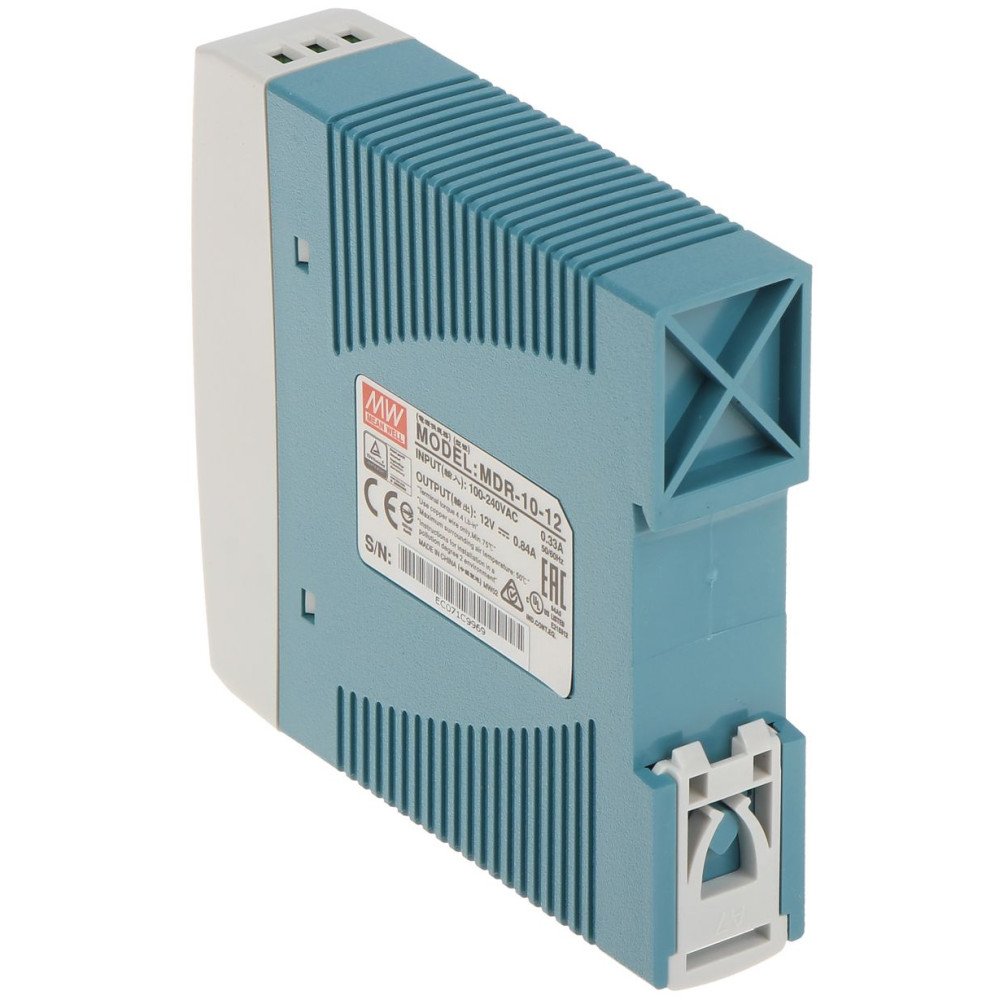

SWITCHING POWER SUPPLY MDR-10-12
€144.73
Tax included
- Output voltage: 12 V DC
- Output voltage regulation: 10.8... 13.2 V
- Power supply current capacity: 0.84 A
- Power supply power: 10 W
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Switching power supply installed on a TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
| Power supply type: | Impulse |
| Supply voltage: | 100 ... 240 V AND |
| Output voltage: | 12V DC |
| Output voltage regulation: | 10.8 ... 13.2 V |
| Voltage Tolerance: | ± 1 % |
| Power supply current efficiency: | 0.84 A |
| Power supply power: | 10 W |
| Number of outputs: | 1 pc. |
| Efficiency: | 81 % |
| Housing type: | FROM |
| MTBF (mean time between failures): | 584000 hours |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 2 G for 90 minutes |
| Security: |
|
| Operating temperature / relative humidity: | -20 °C ... 70 °C / 95 % |
| Libra: | 0.14 kg |

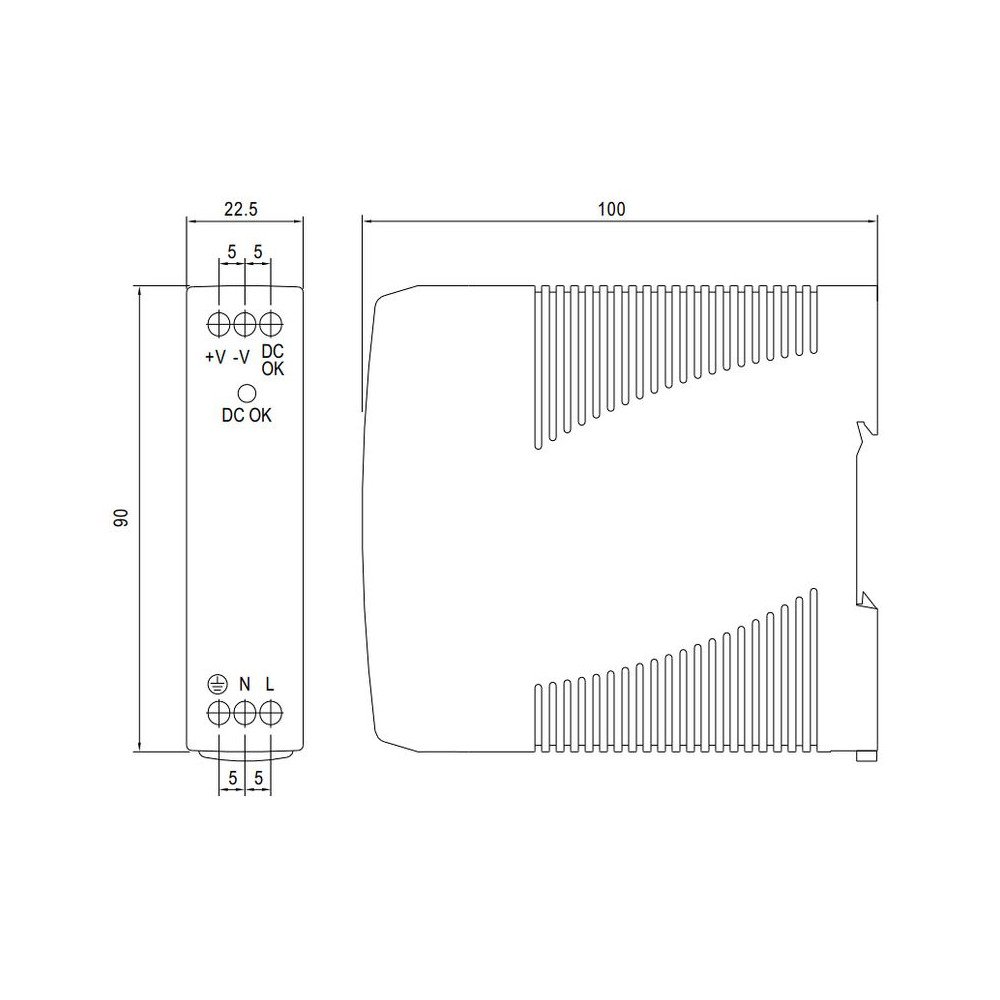

| Dimensions: | 22.5 x 100 x 90 mm |
| Guarantee: | 3 lata |
