PROTECT-LED-KL-1 CONTROL PANEL

PROTECT-LED-KL-1 CONTROL PANEL

€268.43
Tax included
  • The PROTECT-LED-KL-1 control panel is used to monitor the operating status of the mobile recorder and serves as an IR extender; Application: PROTECT mobile recorders
  • Communication interface: RS-485
  • Power supply: 12 V DC
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

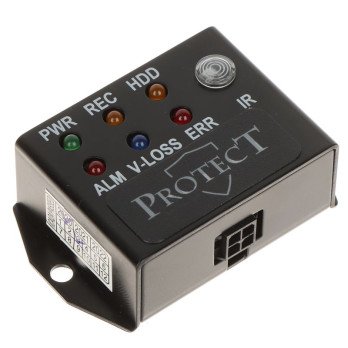

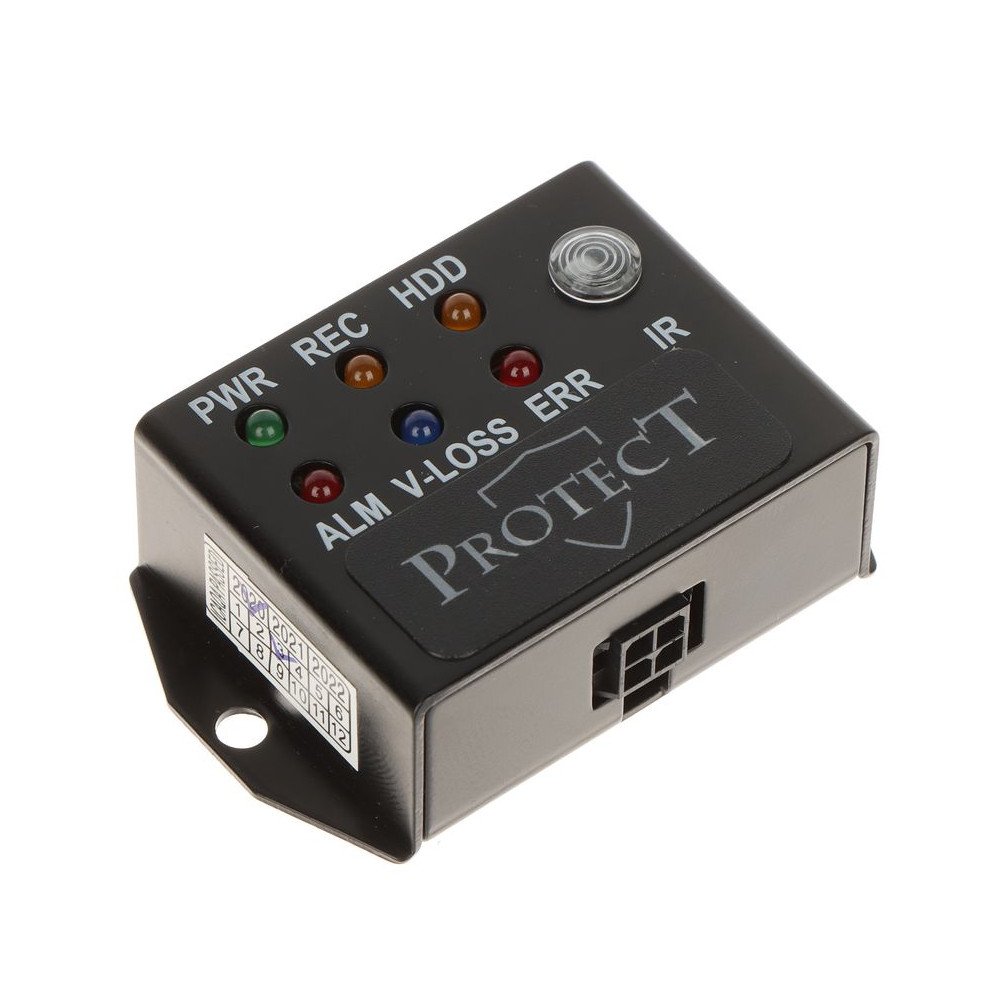

The PROTECT-LED-KL-1 control panel is used to monitor the operating status of the mobile recorder and serves as an IR extender

Application: PROTECT mobile recorders

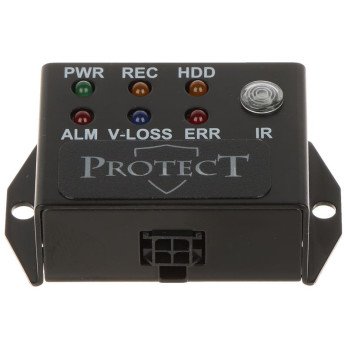

LEDs indicating the device's operating status:
  • PWR - Power supply
  • REC - Video recording
  • HDD - Installed and formatted SD memory card
  • ALM - Alarm output
  • V-LOSS - VIDEO signal loss alarm
  • ERR - Error

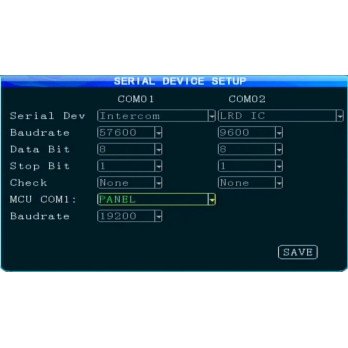

Communication interface: RS-485

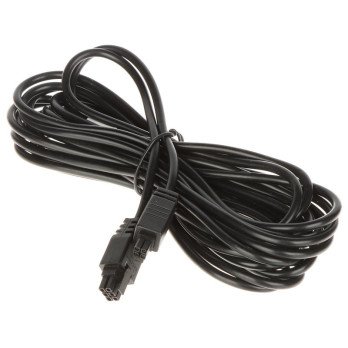

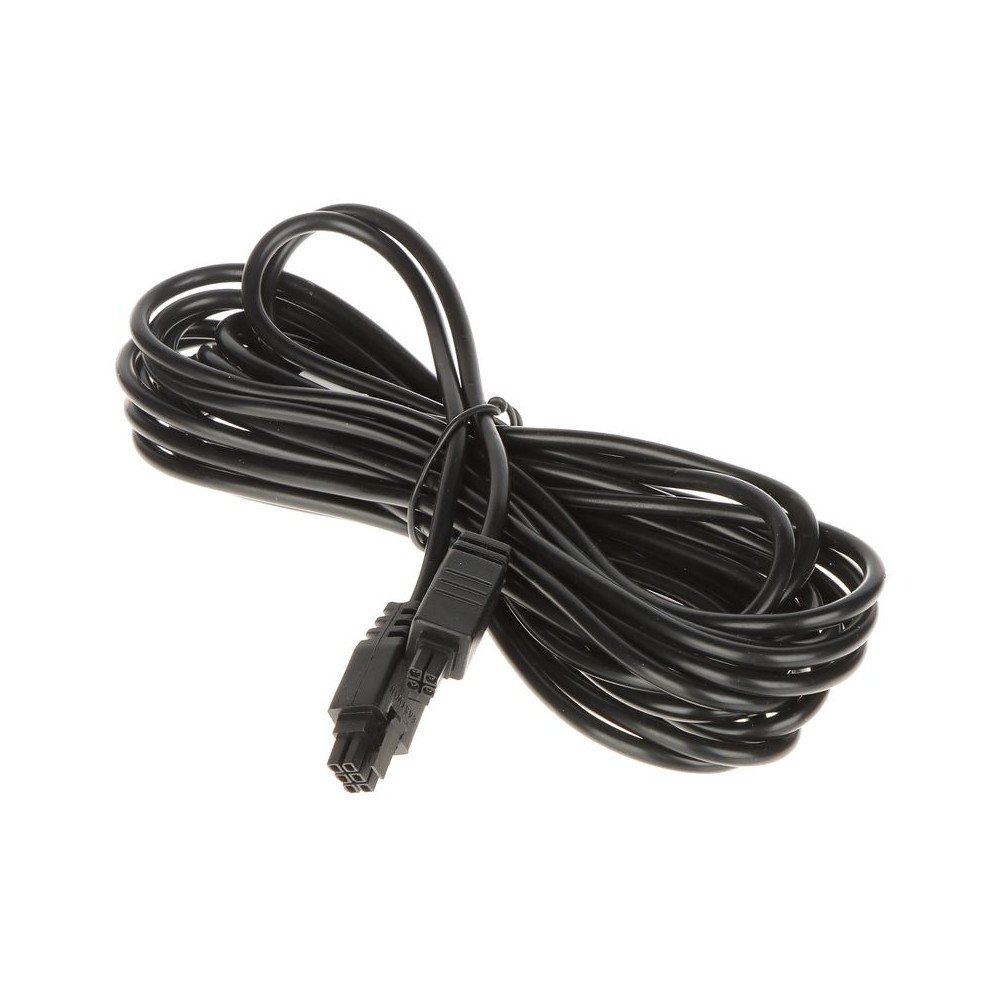

Cable description: CONTROL PANEL / RECORDER:
  • White / RS485B
  • Red / 12 V Output
  • Green / RS485A
  • Black / GND
    To connect, it is necessary to cut off the factory connector and manually connect it to the appropriate connectors of the recorder
Power supply: 12V DC
Libra: 0.18 kg

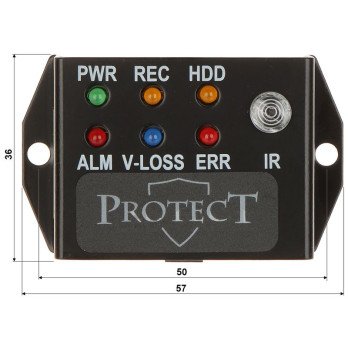

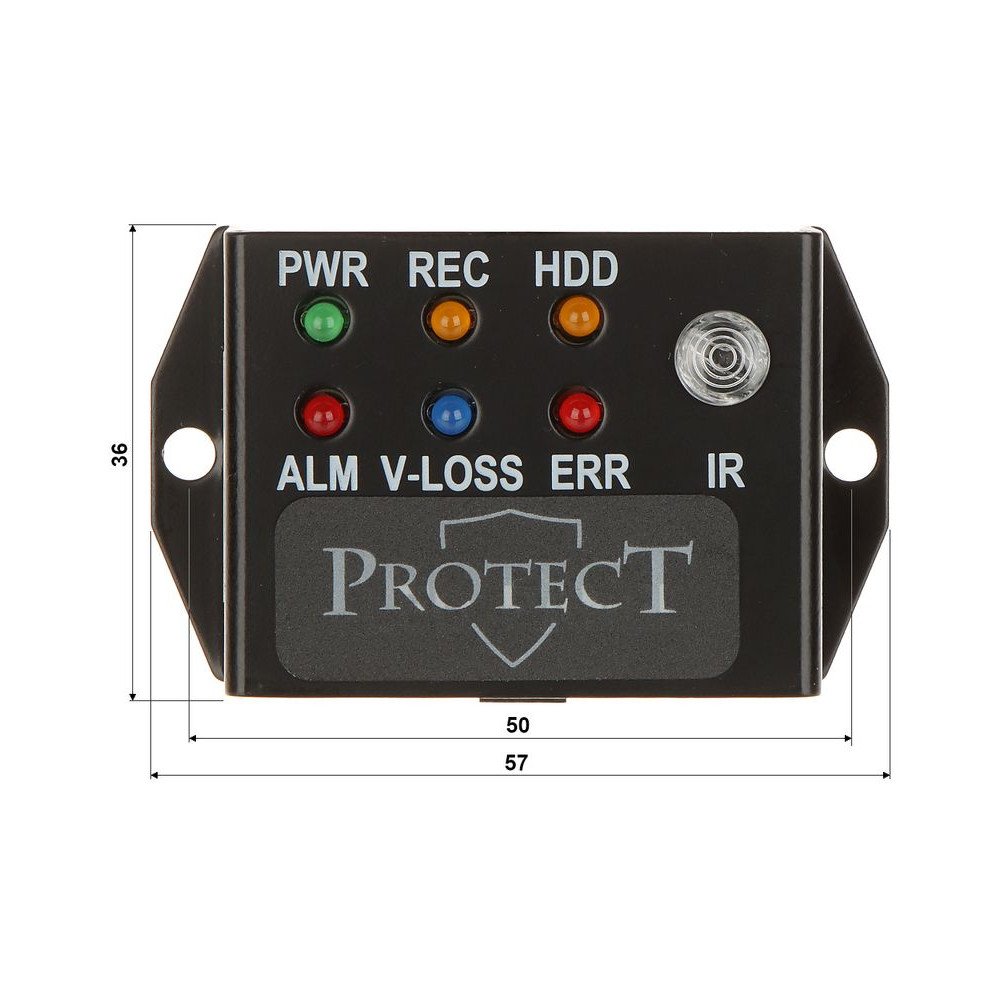

Dimensions:
  • 57 x 35 x 20 mm
  • 4 m - Cable length
Guarantee: 2 lata
Genway
NS32496
1 Item

Data sheet

Protocol
BLE
GRE
RS-485
Voltage
12V
