The WL-03NL digital intercom system is intended for installation in multi-family buildings for up to 400 users. The outer panel is made of aluminum.

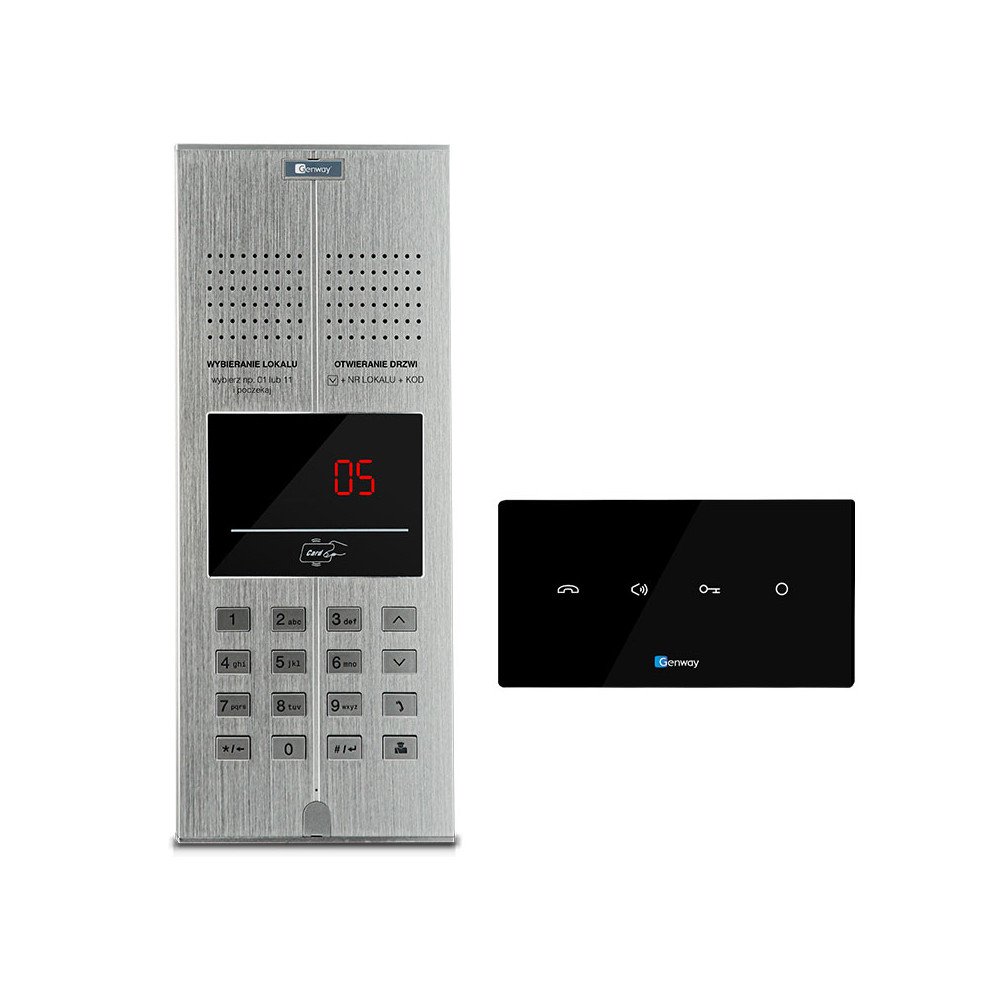

6-family digital intercom GENWAY WL-03NL V2 Hands-free Uniphone
€2,145.03
Tax included
The WL-03NL digital intercom system is intended for installation in multi-family buildings for up to 400 users. The outer panel is made of aluminum.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Functionality of the WL-03NL-V2 system

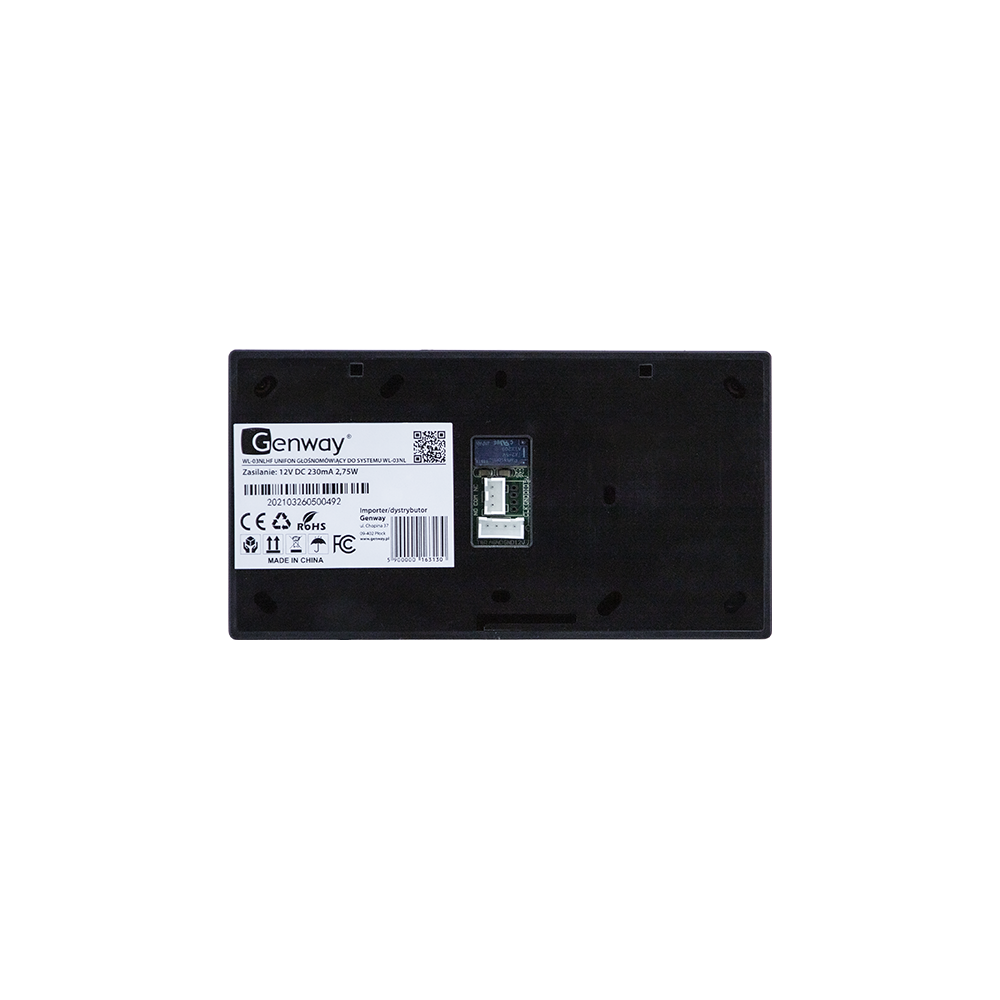

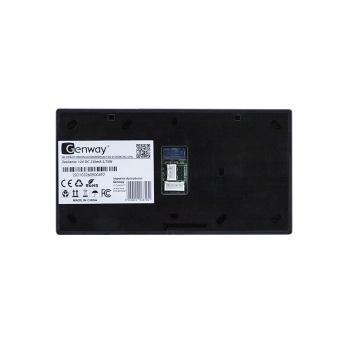

Uniphone (handset)

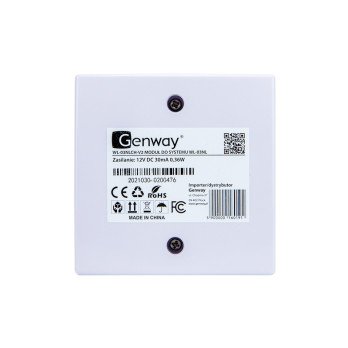

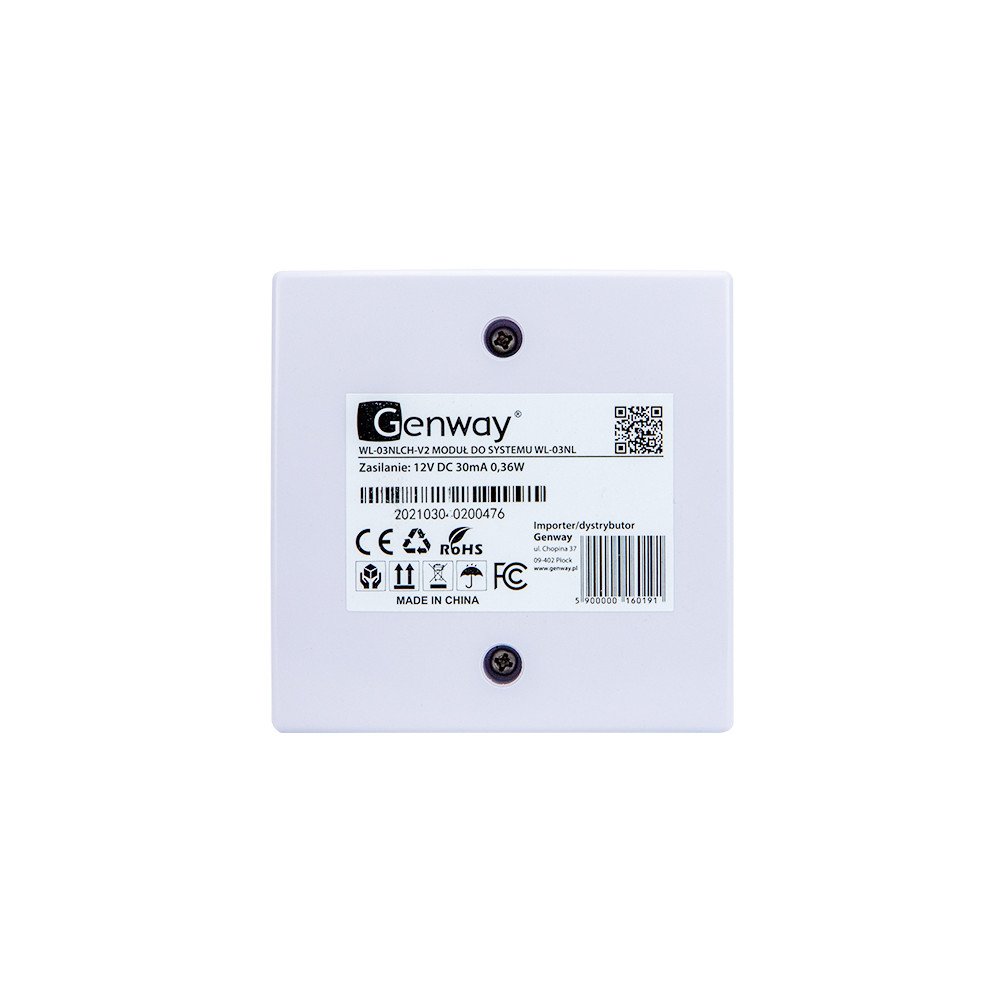

WL-03NLCH V2 module

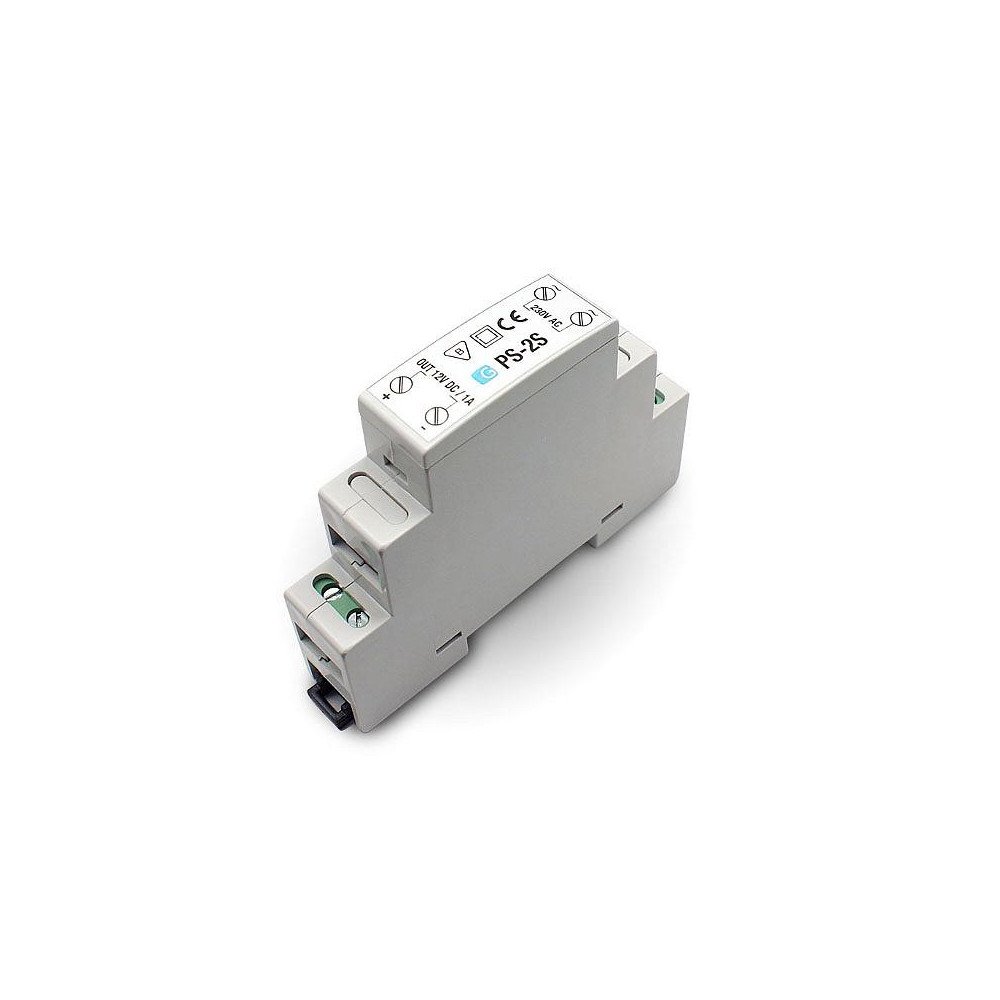

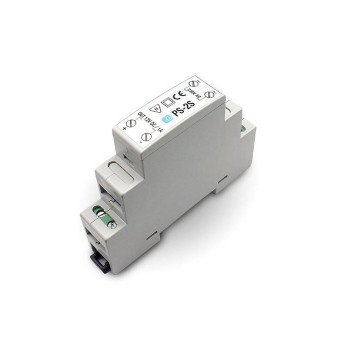

PS-2S power supply

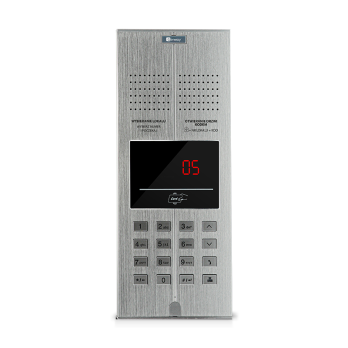

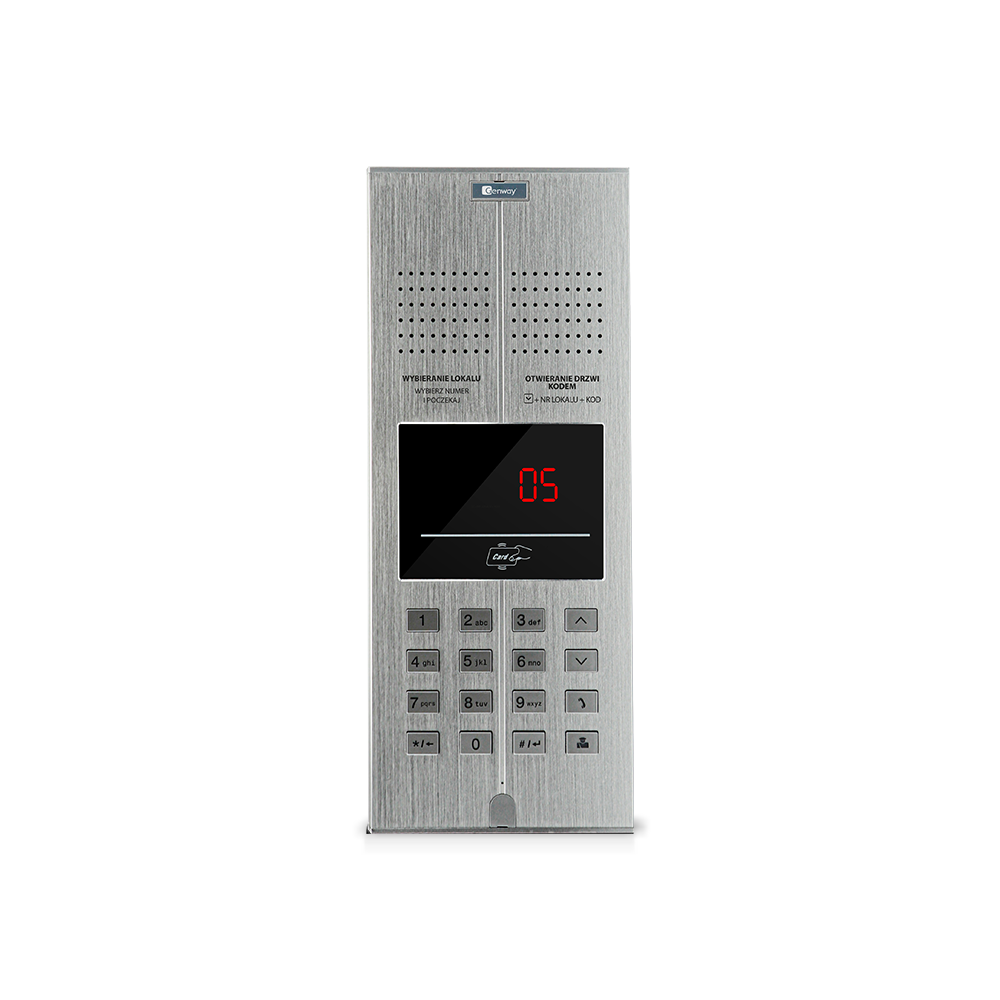

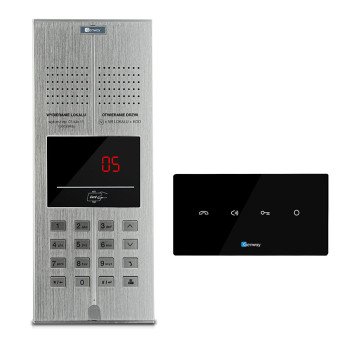

Digital intercom systemWL-03NL-V2is intended for installation in multi-family buildings up to400 users.The outer panel is made of aluminum. It has a built-in display and a backlit alphanumeric keyboard. Modular system (4-wire bus) with error isolation function. The failure of a single device does not disable the entire system. Connection of modules with uniphones using 2 polarity-free cables. We can expand this system to:7 entriespeers using the WL-03NQH-8 module. Up to 4 uniphones connected to the WL-03NLCH-4 module can operate under one calling number. Every user hasindividual codeopening the door. The panel is suitable for flush mounting.
Technical specifications
Panel WL-03NL-V2| information |
|
| power supply | DC 12-13,5V |
| energy consumption during standby (working) | Standby: ≤70mA(DC12V) Working: ≤250mA |
| temperature range | from -40°C to +70°C |
| maximum humidity | 90% |
| panel dimensions (height × width × depth) | 331 x 134 x 45mm |
| can dimensions (height x width x depth) | 325 x117 x 35mm |
| information | illuminated buttons, ringtone and conversation volume adjustment, built-in relay control button |
| power supply | DC 12 V ±10% |
| energy consumption during standby (working) | |
| temperature range | from -20°C to +60°C |
| maximum humidity | 90% |
| dimensions (height × width × thickness) | 150×80×15 mm |
| information | allows you to connect up to 4 uniphones (earphones) with different numbers |
| power supply | DC 12 V ±10% |
| energy consumption during standby (working) | 30 at (5 in) |
| temperature range | from 0°C to +55°C |
| maximum humidity | 90% |
| dimensions (height × width × thickness) | 85×85×40 mm |
| input voltage | AC AC 85V-265V, 11,5W, 50/60Hz |
| output voltage | DC 12V |
| mounting on a DIN rail | DIN-3 (35mm) |
| dimensions (height × width × thickness) | 90x18x65 mm |
Volume control and ringtones
The new version of the WL-03NL digital intercom also supports extensive volume control. It is global, for all uniphones at the same time. You can therefore set the ringtone volume in the uniphone and panel as well as the sound intensity during the conversation on both sides. There are also six ringtones to choose from.

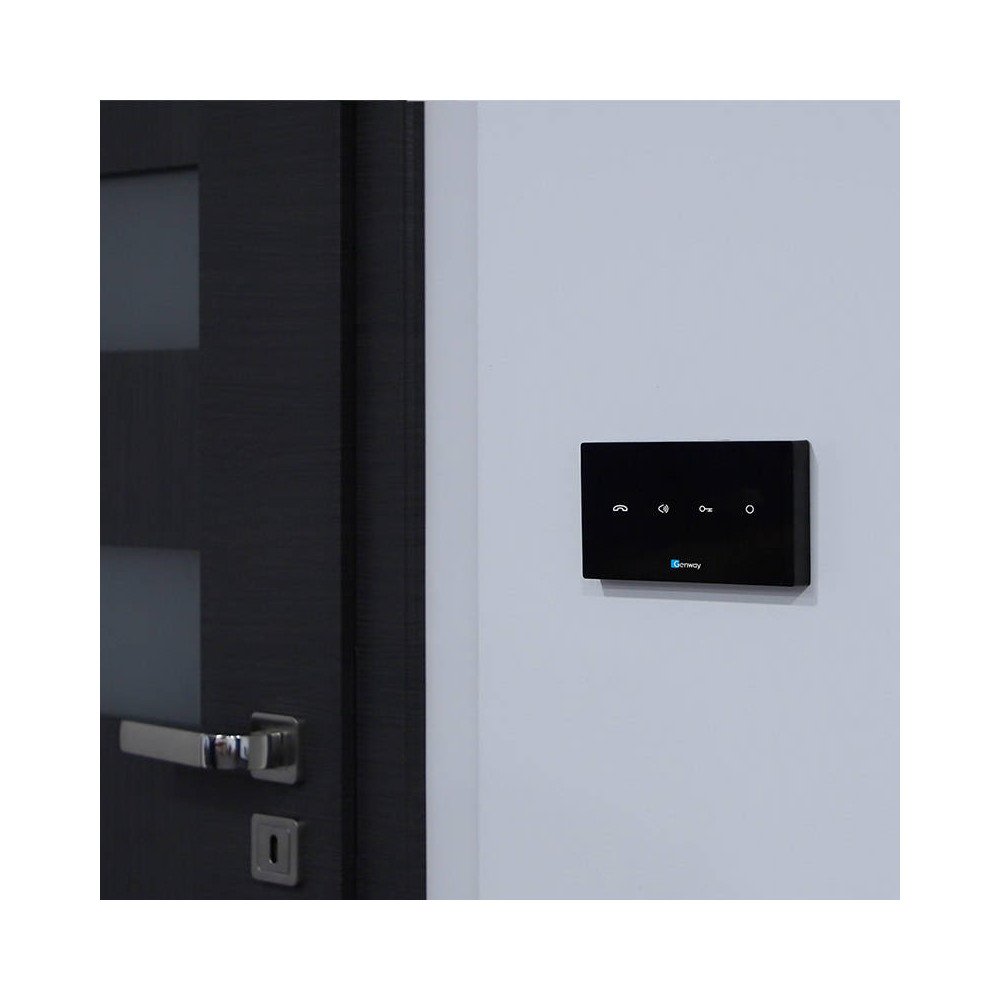

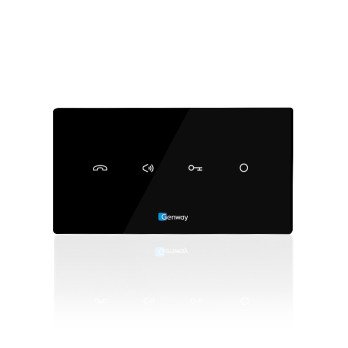

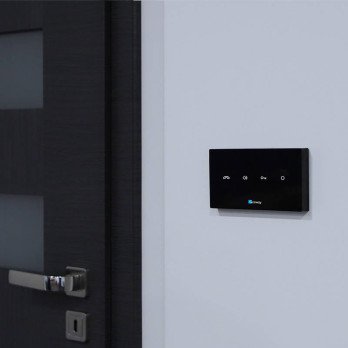

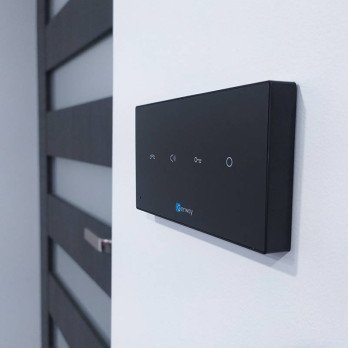

Hands-free uniphone
The device allows you to conveniently conduct a conversation. Just touch a button to answer a call or open the door for a guest. Thanks to this, the conversation can be conducted hands-free. Thanks to the volume control, it is also possible to conduct a conversation at a certain distance from the uniphone. In places with increased noise, such as kindergartens, schools, open space offices and when there is a need to maintain confidentiality of conversations, it is recommended to use headphones.
Polish voice messages
A female voice informs the guest about the pressed keys, confirms the opening of the door or provides information about an error. Thanks to this, even visually impaired people will be able to operate the intercom efficiently.
Card reader
A proximity tag can take many forms. From classic cards that we keep in our wallet, through a pendant attached to our keys, to a sticker that we put on our phone case. It is much more difficult to forget about the key in this form.
The set includes:
- WL-03NL-V2 intercom panel x 1
- PS-2S power supply x 1
- WL-03NLCH x 2 module
- Unifon x 6
