ATTE APS-90-480-S1 power supply

SMPS power supply unit, Vin 230VAC, Vout 48VDC, Iout 2A, Pout 96W, in external housing ABOX-S1, type APS-90-480-S1

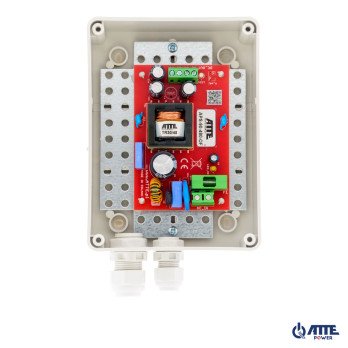

APS-90-480-S1is a power supply that provides stable DC voltage for demanding electronic devices, including: CCTV cameras, recorders, etc. Thanks to the integration of overvoltage and short-circuit protection, it is especially recommended for operation in monitoring systems that require high power supply reliability. The power supply system is a highly efficient impulse converter that ensures isolation between the 230 VAC network and the powered device.

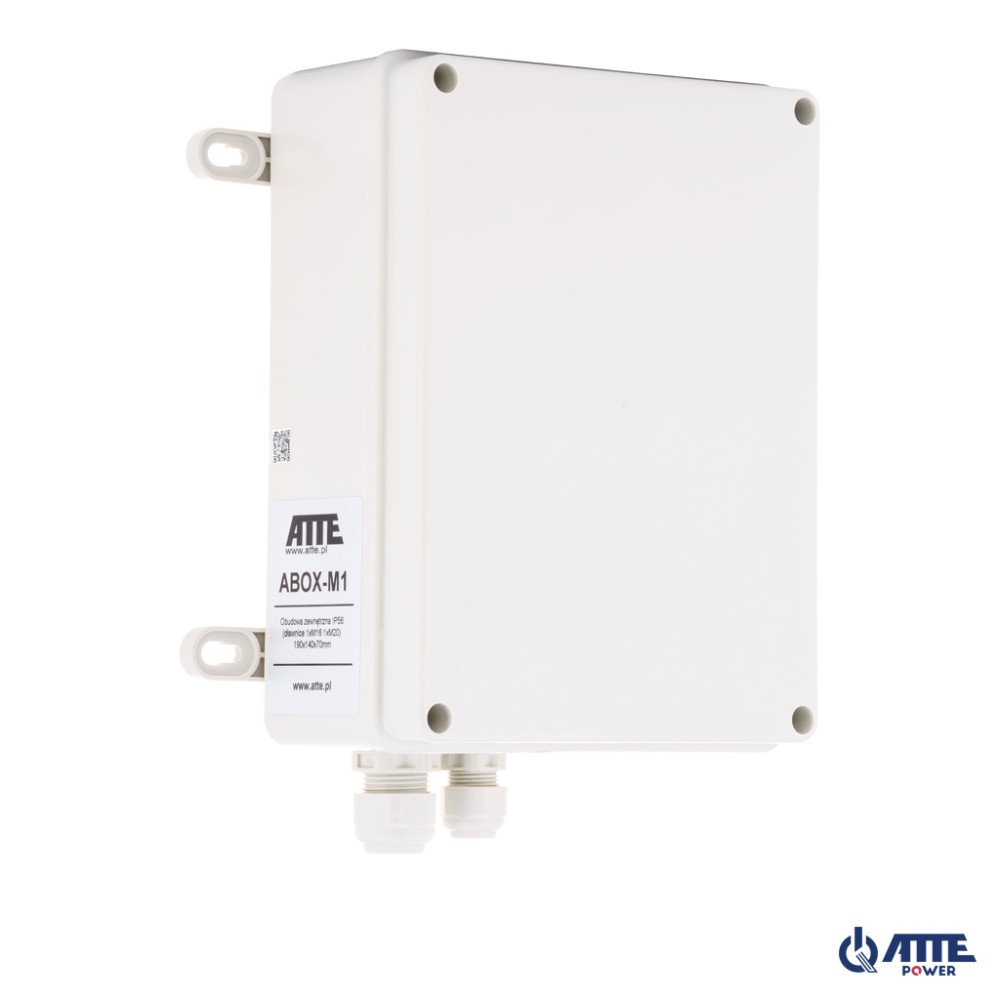

ABOX series external enclosuresare a convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable atmospheric factors. The models available in the offer are equipped with a mounting plate with special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the mounting plate. KEY FEATURES:

• a complete solution for powering CCTV devices in a small housing
• low heating of the inside of the housing thanks to the high efficiency of the power supply
• resistance to short circuits and overloads
• resistance to overvoltages both from the 230 VAC network and the power supply output
• easy installation of modules with holes in a 10.8 mm pitch

TECHNICAL DATA:

Output voltage	48 VDC +/-3%
Output current	2A
Power supply power	96W
Efficiency	93% @90W
Supply voltage	190 ... 260 VAC, 50 Hz
Entry security	T3.15A fuse
Power supply overload protection	Electronic security at level 3A
DC_OUT output short-circuit protection	Electronic protection (requires power supply restart)
Surge protection	AC input – varistor, DC output – transil diode
Operating temperature	-10 ... +40°C

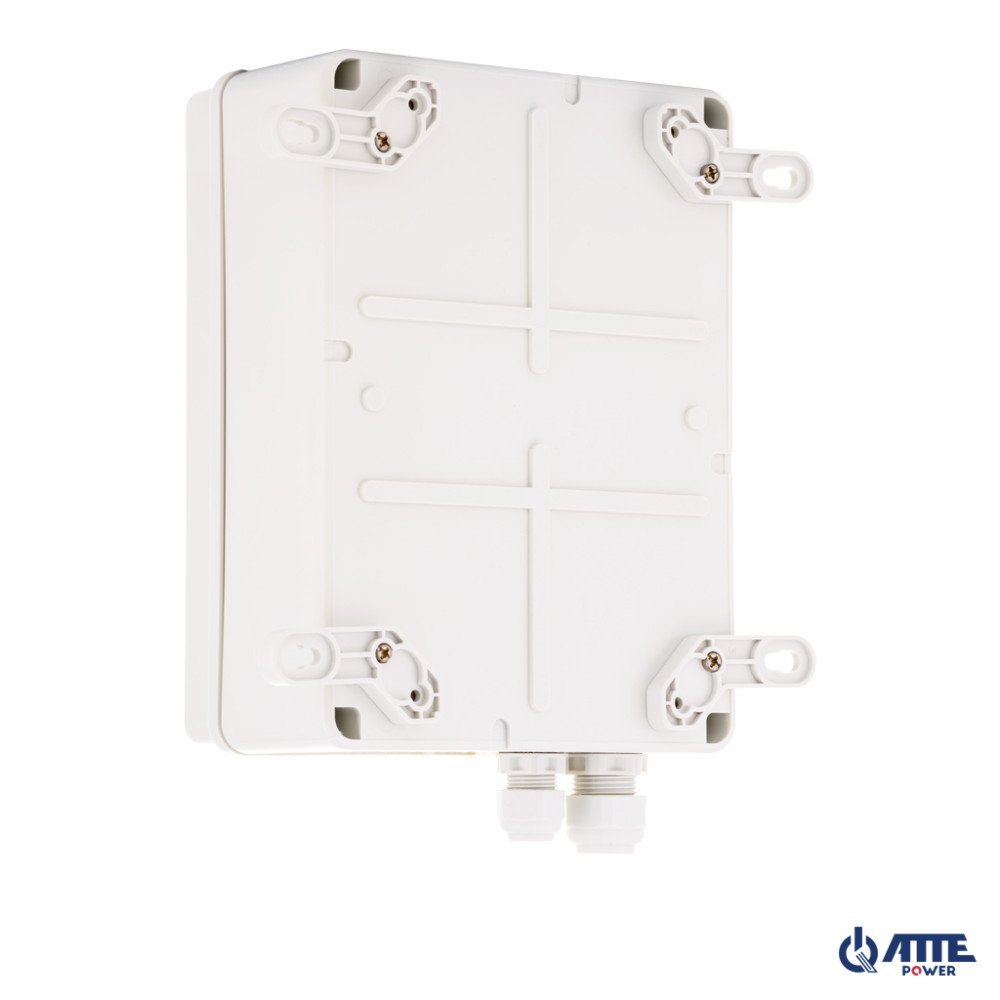

Installation	Mounting brackets, can be hung on the wall

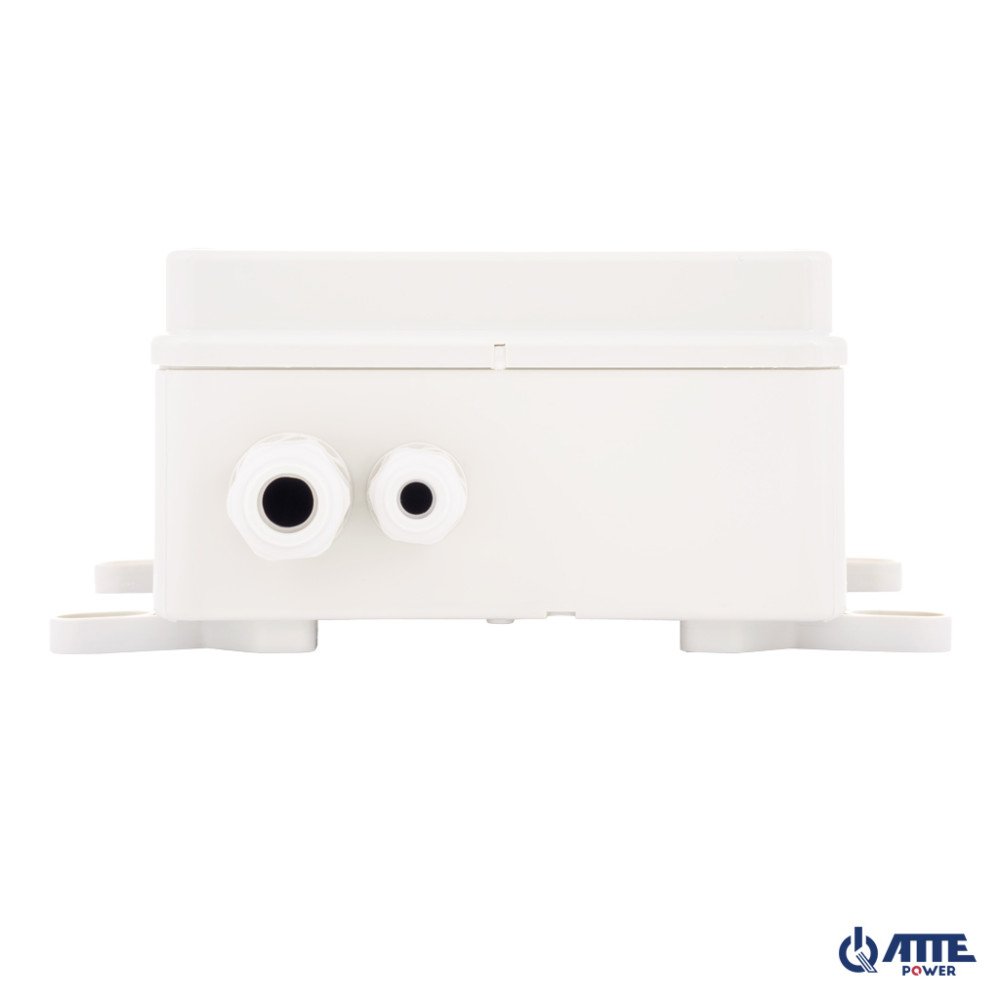

Housing design	Housing material - plastic, gray color (RAL7035) Installed glands 1 x M16, 1 x M20
Degree of protection	IP56
Dimensions	150 x 110 x 70 mm
Libra	0,42 kg
