SMPS mains power supply, Vin 230VAC, Vout 24VDCSMPS mains power supply, Vin 230VAC, Vout 24VDC, Iout 3A, Pout 72W, external ABOX-L1 housing, ATTE type APS-70-240-L1
ATTE APS-70-240-L1 power supply
€507.58
Tax included
SMPS mains power supply, Vin 230VAC, Vout 24VDCSMPS mains power supply, Vin 230VAC, Vout 24VDC, Iout 3A, Pout 72W, external ABOX-L1 housing, ATTE type APS-70-240-L1
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
SMPS power supply unit, Vin 230VAC, Vout 24VDC, Iout 3A, Pout 72W, external housing ABOX-L1, type APS-70-240-L1
APS-70-240-L1is a power supply that provides stable DC voltage for demanding electronic devices, including: CCTV cameras, recorders, etc. Thanks to the integration of overvoltage and short-circuit protection, it is especially recommended for operation in monitoring systems that require high power supply reliability. The power supply system is a highly efficient impulse converter that ensures isolation between the 230 VAC network and the powered device.
ABOX series external enclosuresare a convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable atmospheric factors. The models available in the offer are equipped with a mounting plate with special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the mounting plate. KEY FEATURES:- a complete solution for powering CCTV devices in a small housing
- low heating of the inside of the housing thanks to the high efficiency of the power supply
- resistance to short circuits and overloads
- resistance to overvoltages both from the 230 VAC network and the power supply output
- easy installation of modules with holes in a 10.8 mm pitch
| Output voltage | 21 ... 26 VDC (adjustable with V_adj potentiometer) |
| Output current | 3A |
| Power supply power | 72W |
| Efficiency | 90% @60W |
| Input voltage | 180 ... 240 VAC |
| Entry security | T3.15A fuse |
| Short circuit protection | 5A (requires power supply restart) |
| Overload protection | 5A |
| Operating temperature | -20 ... +50°C |
| Housing design | Housing material - plastic, gray color (RAL7035) Installed glands 1 x M16, 1 x M20 |
| Degree of protection | IP56 |

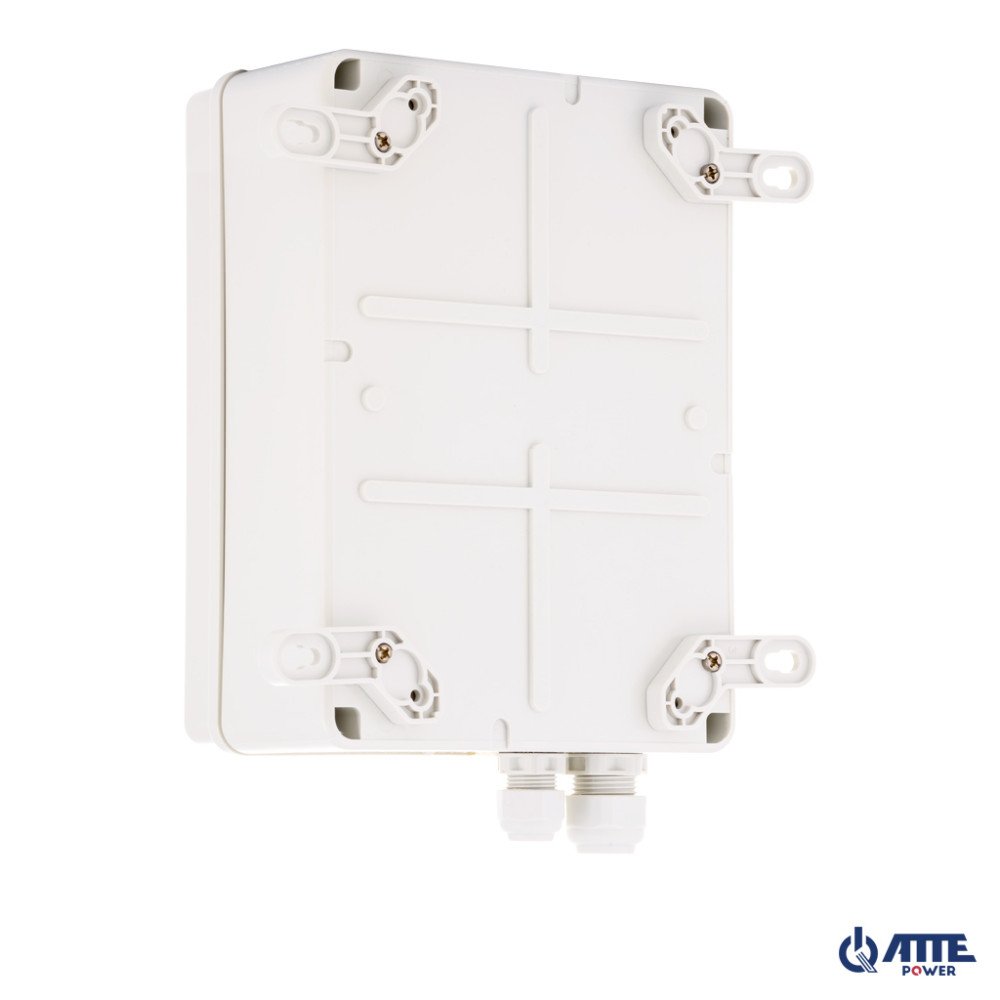

| Installation | Mounting brackets, can be hung on the wall |
| Dimensions | 241 x 190 x 90 mm |
| Libra | 0,9 kg |
