PoE adapter lowering voltage, Vin 35...56VDC, Vout 5VDC, Iout 1A, Pout 5W, compatible with PoE PASSIVE and 802.3af switches, RJ45/RJ45 connectors + DC plug, ATTE type ASDC-05-050-HS

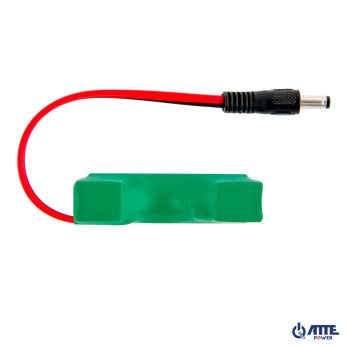

ATTE ASDC-05-050-HS voltage step-down PoE adapter
€122.16
Tax included
PoE adapter lowering voltage, Vin 35...56VDC, Vout 5VDC, Iout 1A, Pout 5W, compatible with PoE PASSIVE and 802.3af switches, RJ45/RJ45 connectors + DC plug, ATTE type ASDC-05-050-HS
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
PoE adapter lowering voltage, Vin 35...56VDC, Vout 5VDC, Iout 1A, Pout 5W, compatible with PoE PASSIVE and 802.3af switches, RJ45/RJ45 connectors + DC plug, type ASDC-05-050-HS
The ASDC-05-050-HS adapter is a non-isolated DC/DC step-down converter. The device is powered by a 48 V PoE line and provides a stabilized output voltage of 5 VDC. In the ASDC-05-050-HS version of the adapter, the 5 V output voltage is available only in the wired DC plug (it is not available in the RJ-45 plug). The device can be powered by 802.3af/at and PoE PASSIVE switches. Typical use is to power IP cameras or WiFi devices that do not support the PoE standard. TECHNICAL DATA:| Supported PoE power supplies | PASSIVE PoE 802.3af 802.3at |
| Connectors | RJ-45 - input voltage DC plug - output voltage |
| Output voltage | 5 VDC +/-3% - DC plug There is no output voltage on the RJ-45 PoE connector |
| Output current | 1A |
| Input voltage | 35 ... 56 VDC - RJ-45 (PoE) |
| Signaling | Red LED inside the RJ-45 socket - presence of output voltage |
| Housing design | Insulating polyethylene foil |
| Degree of protection | IP20 |
| Operating temperature | -10 ... +40°C |
| Dimensions/weight | 75 x 21 x 17 mm / 0,015 kg |
