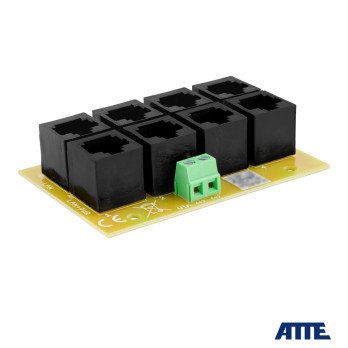

PoE PASSIVE 4-channel adapter, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, polymer fuses, built-in module, ATTE type AEPI-4-10-OF
PoE PASSIVE 4-channel ATTE AEPI-4-10-OF adapter
€109.90
Tax included
PoE PASSIVE 4-channel adapter, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, polymer fuses, built-in module, ATTE type AEPI-4-10-OF
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
PoE PASSIVE 4-channel adapter, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, polymer fuses, built-in module, type AEPI-4-10-OF
Key features and functions:- Possibility to power 4 PoE 802.3at/af or PASSIVE receivers
- clear optical indication of power supply status
- up to 40W of power on PoE ports
- polymer fuse independently for each PoE channel
- easy and quick commissioning without the need to configure parameters
- wide input voltage range
- output voltage = input voltage
- small module size
OF (Open Frame) constructionallows the device to be installed in any housing, but the most convenient method of installation is dedicated ABOX series housings and mounting plates equipped with special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing or mounting plate.
TECHNICAL DATA:| RJ45 ports | 4x LAN 10/100Mbps (input from switch) 4x LAN + PoE (output to PoE devices) |
| Supported PoE receivers (standard / max power) | 802.3af - do 15,4W LAN_1...LAN_5 (Vin 45VDC) 802.3at - do 30W LAN_1...LAN_5 (Vin 45VDC) PoE PASSIVE - do 70W LAN_5 / do 40W LAN_1...LAN_4 |
| PoE outputs (standard / power mode) | PoE PASSIVE, mode B (4,5+) (7,8-) |
| PoE output protection (overcurrent/short circuit) | 4x 0.75A / polymer (requires restart) |
| Input voltage range | Vin 10...56VDC |
| Output voltage for PoE devices | Vout = Vin |
| Housing (type / color) | built-in module / green |
| Operating temperature range | -10°C...+40°C |
| Installation | snap-on spacer pins, mounting holes in a 10.8 mm pitch |
| Dimensions/weight | 77x51x17mm / 0,1kg |
