The DC-015L antenna diplexer with 3 inputs is used as an element summing signals from 3 antennas (FM+VHFI/II band signal (47...108 MHz), VHFIII (174...230 MHz) and UHF band (470...790 MHz)), and is mounted on the antenna mast, near the antenna set. It is possible to send 12 V DC power to the antenna preamplifier via the UHF input.
The crossover has a built-in LTE signal filter enabling the elimination of unwanted signals in the 800 MHz band (frequencies 791...862 MHz) intended for LTE data transmission services.
The cast housing ensures high shielding effectiveness, preventing interference signals from penetrating inside the device.

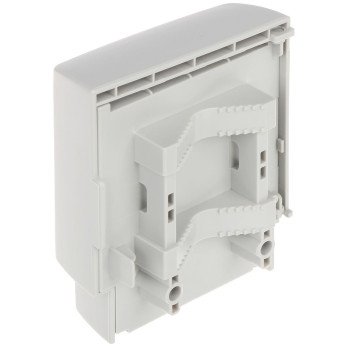

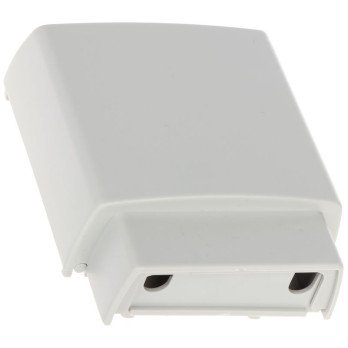

DC-015L TERRA CROSSROOM
€153.98
Tax included
The DC-015L antenna diplexer with 3 inputs is used as an element summing signals from 3 antennas (FM+VHFI/II band signal (47...108 MHz), VHFIII (174...230 MHz) and UHF band (470...790 MHz)), and is mounted on the antenna mast, near the antenna set. It is possible to send 12 V DC power to the antenna preamplifier via the UHF input.
The crossover has a built-in LTE signal filter enabling the elimination of unwanted signals in the 800 MHz band (frequencies 791...862 MHz) intended for LTE data transmission services.
The cast housing ensures high shielding effectiveness, preventing interference signals from penetrating inside the device.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

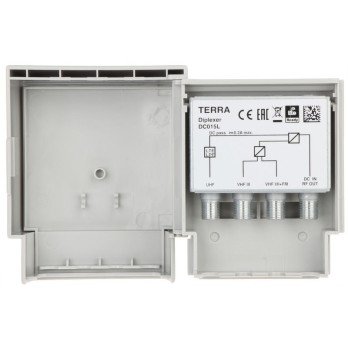

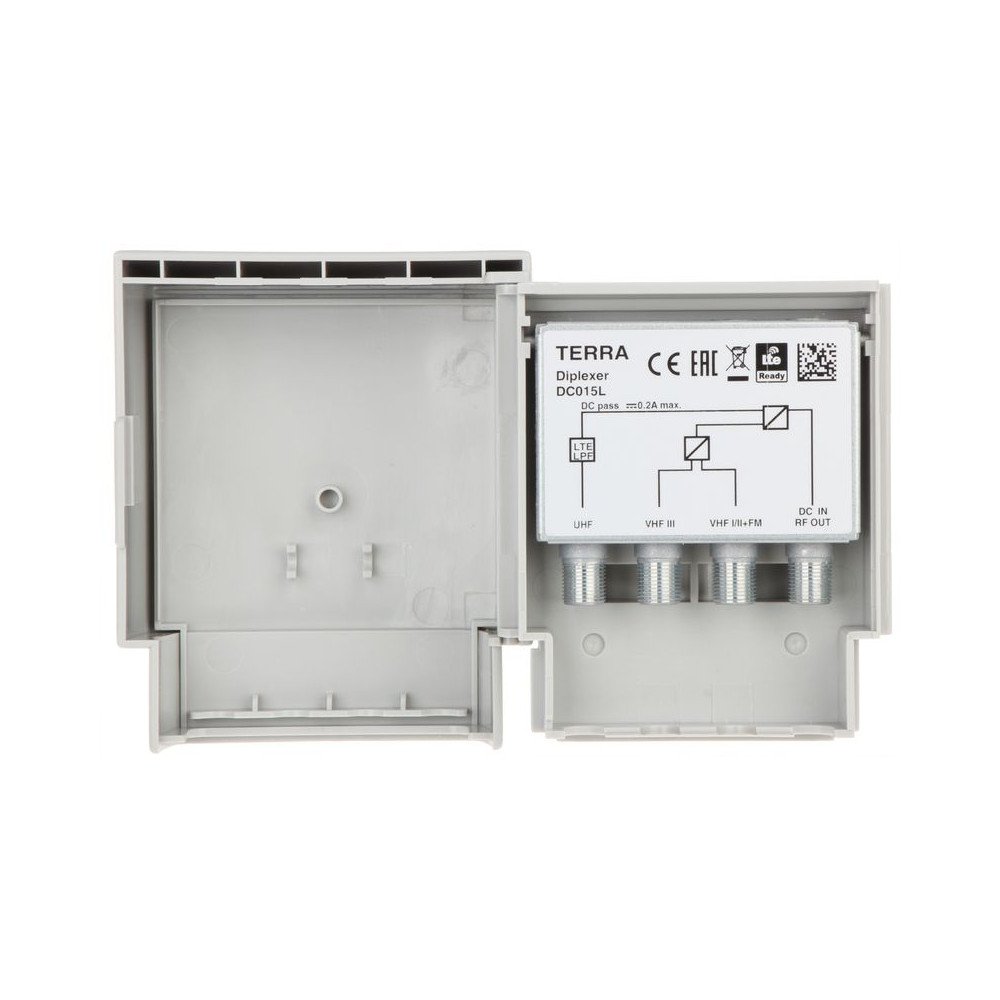

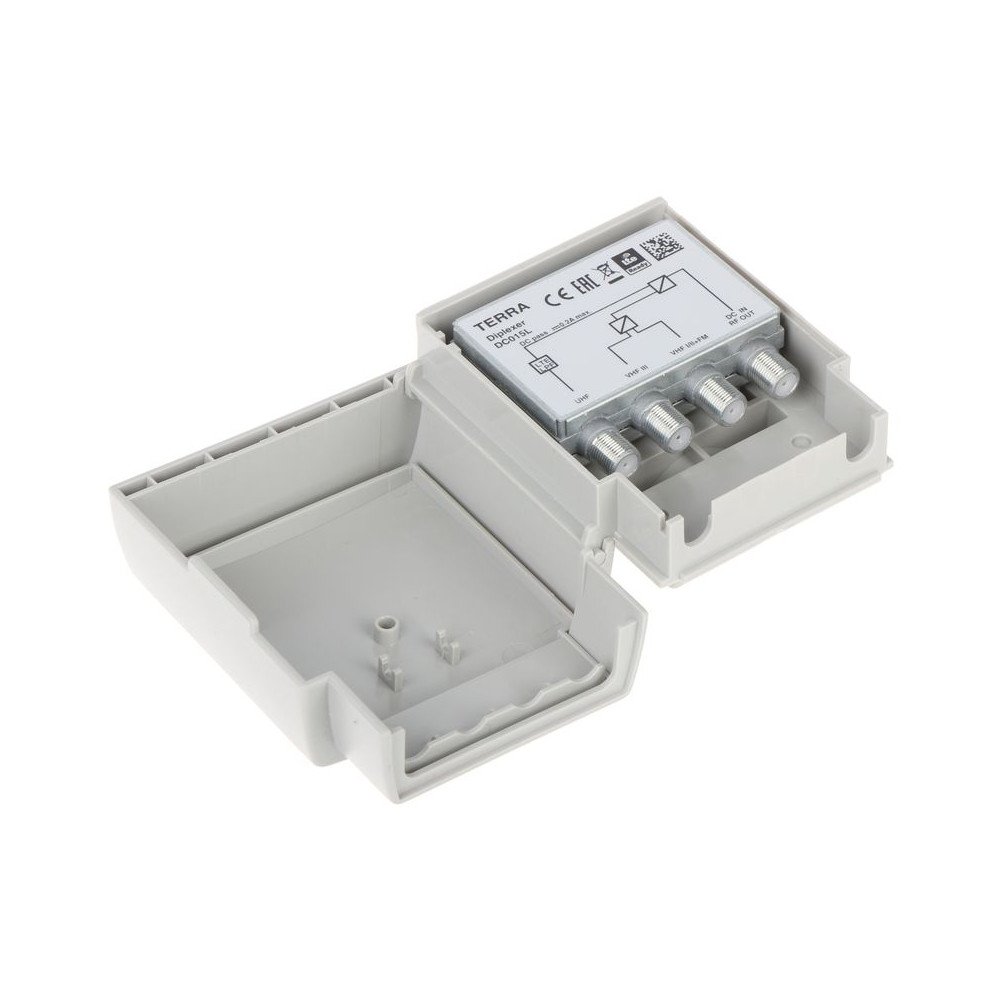

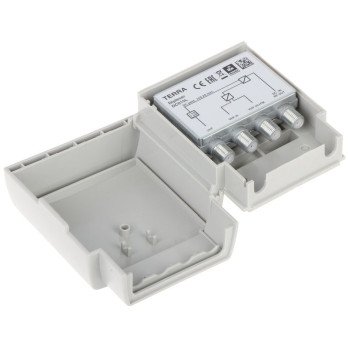

The DC-015L antenna diplexer with 3 inputs is used as an element summing signals from 3 antennas (FM+VHFI/II (47...108 MHz), VHFIII (174...230 MHz) and UHF band (470...790 MHz) signals), mounted on the antenna mast, near the antenna set
It is possible to send 12 V DC power to the antenna preamplifier via the UHF input
The crossover has a built-in LTE signal filter enabling the elimination of unwanted signals in the 800 MHz band (frequencies 791...862 MHz) intended for LTE data transmission services.
The cast housing ensures high shielding effectiveness, preventing interference signals from penetrating inside the device
| Entry: |
|
| Impedance: | 75 OH |
| Throughput loss: | 1 dB @ FM / VHF (I/II) 1 dB @ VHF (III) 2 dB @ UHF |
| DC transition: | 24 V / 200 mA |
| Selected features: |
|

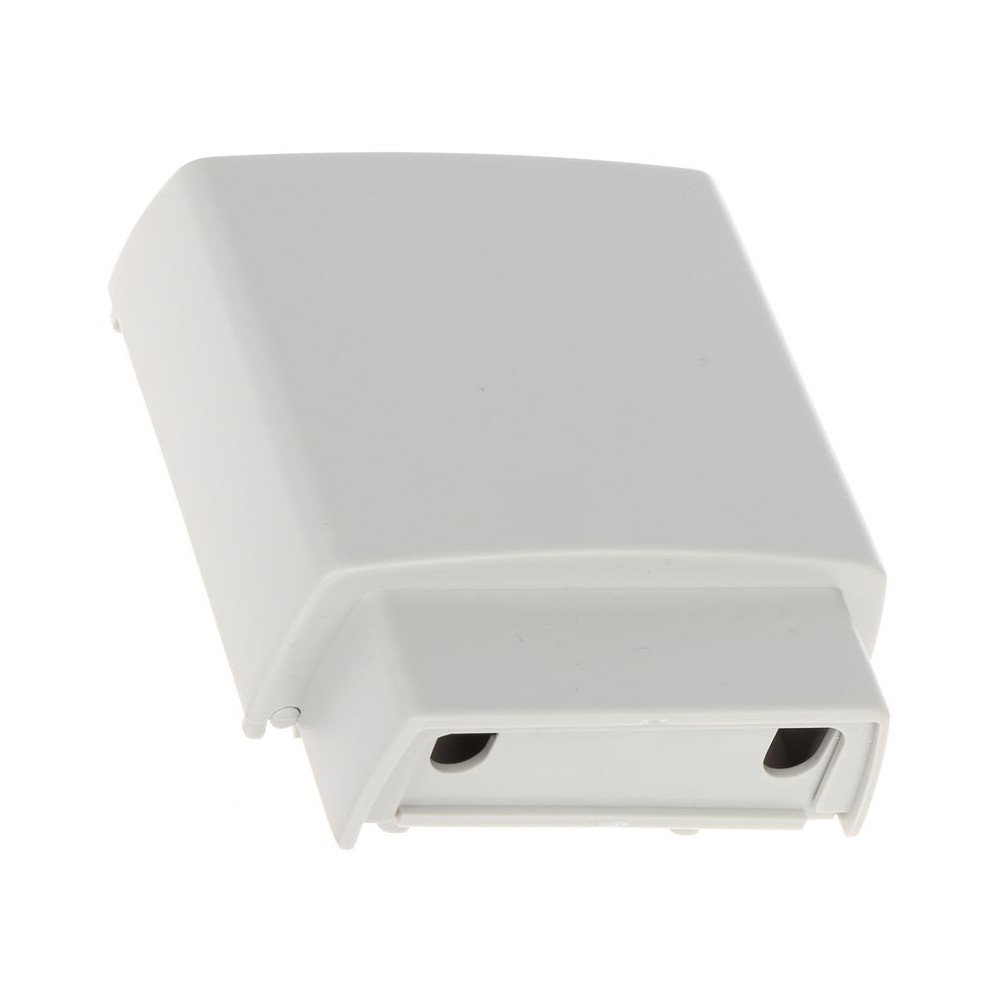

| Case: | die-cast housing mounted inside a compact plastic housing |

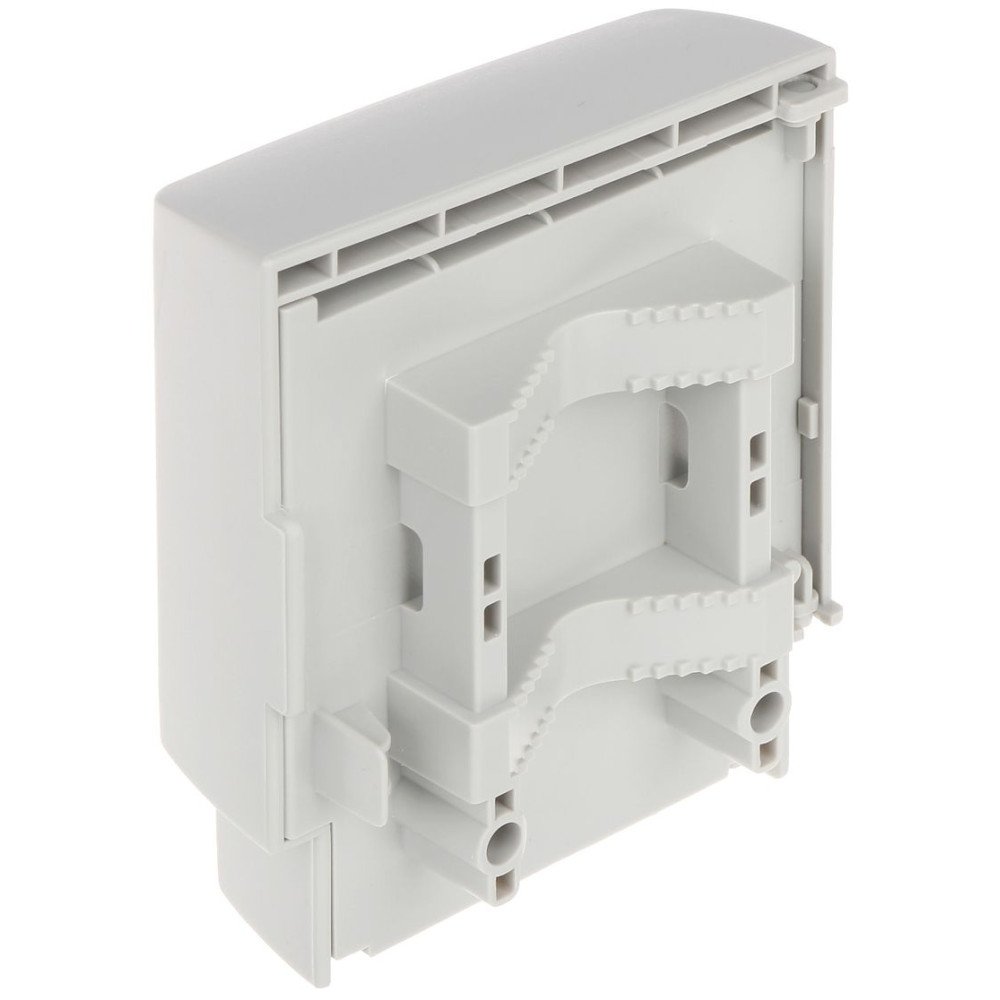

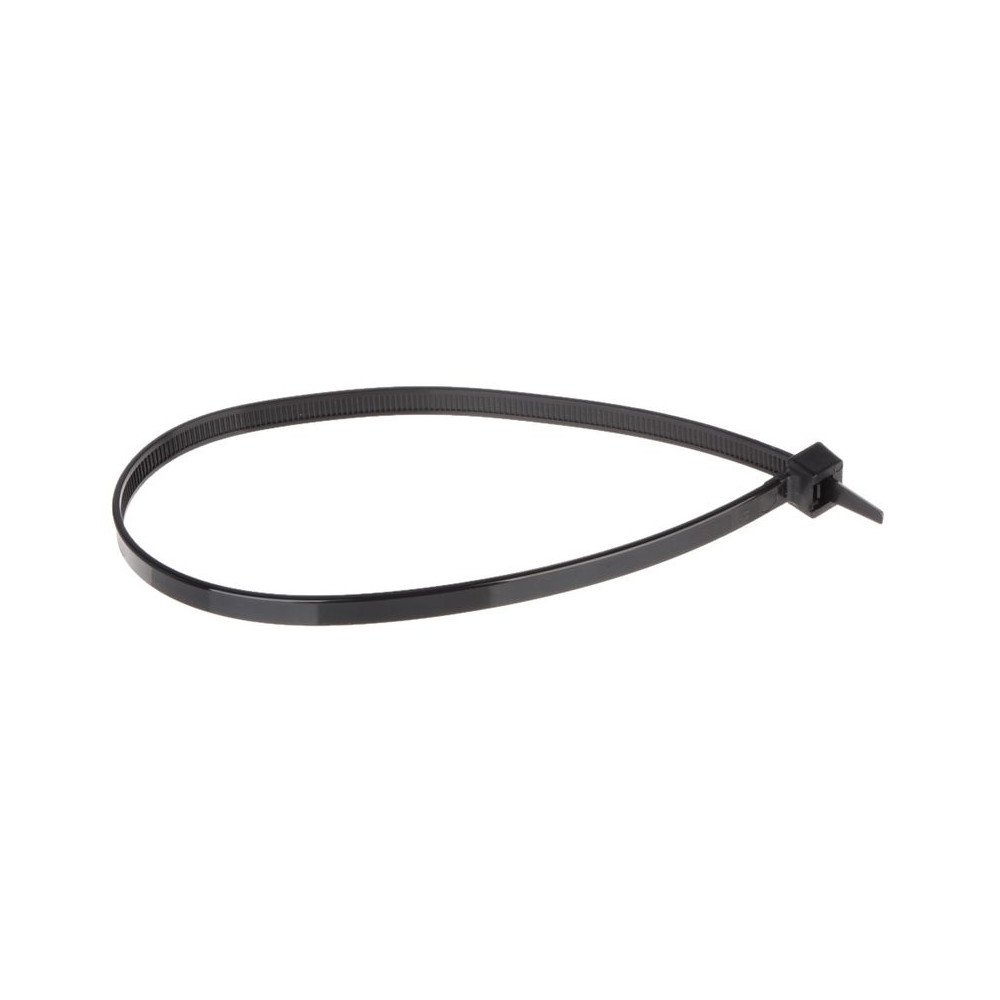

| Mounting: | The housing can be screwed to the wall with screws or attached to the mast with a tie |
| Working temperature: | -20 °C ... 50 °C |
| Libra: | 0.18 kg |
| Dimensions: | 107 x 89 x 43 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 lata |
