The device protects all pairs of wires in a four-pair cable

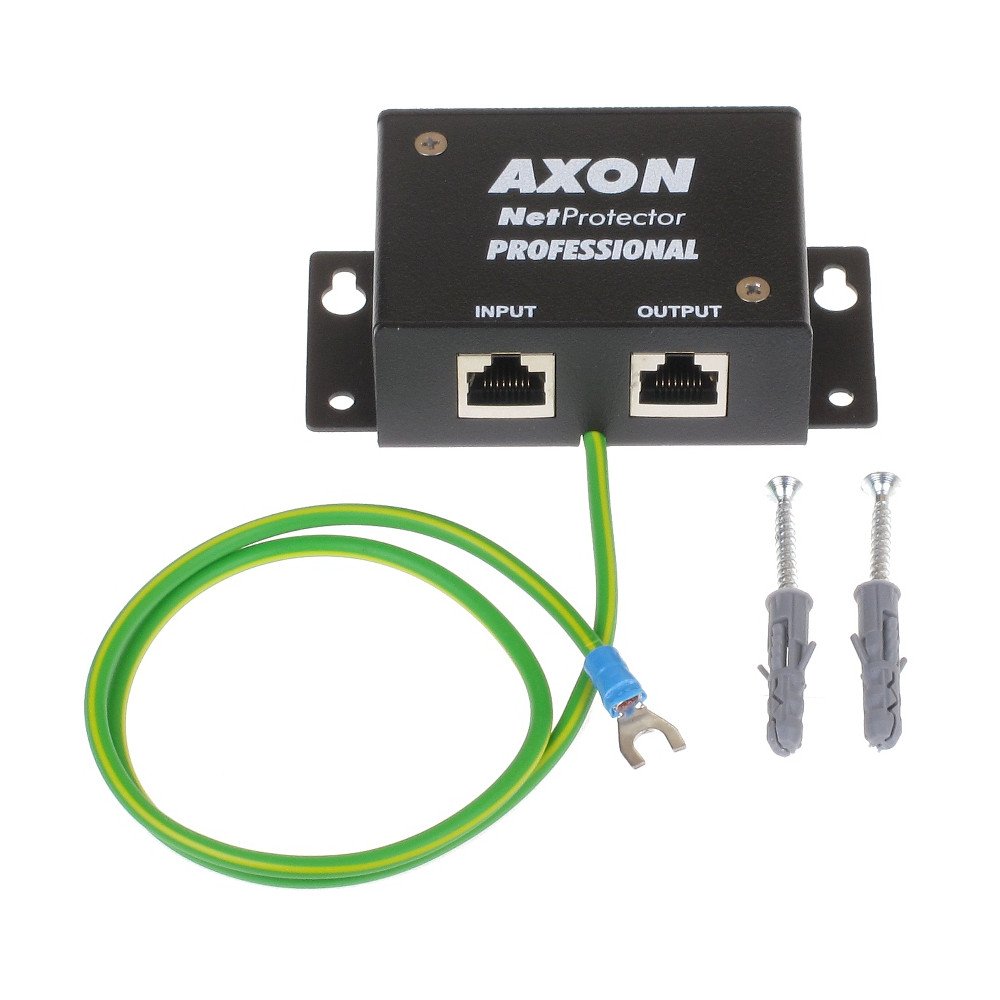

AXON-NET/PROF. OVERVOLTAGE LIMITER
€323.95
Tax included
The device protects all pairs of wires in a four-pair cable
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The device protects all pairs of wires in a four-pair cable
Within each pair, overvoltage between the lines is eliminated and the emerging charge is discharged to the ground via the PE protective conductor.
AXON-NET/PROF is a reinforced version of the popular AXON-NET
The metal casing guarantees greater resistance to all types of mechanical damage and provides shielding of the entire protective system
The use of a shielded RJ-45 socket allows for maintaining screen continuity when using an FTP cable
The socket shield is connected to ground
| Rated voltage: | 5 V |
| Maximum voltage: | 6 V |
| Line-to-line protection level: | 40 V ... 1 kV/µs |
| Line-ground protection voltage: | 600 V ... 1 kV/µs |
| Nominal discharge current (line-line): | 20 A (10/1000µs) |
| Nominal discharge current (line-ground): | 20 A (10/1000µs) |
| Protected wire pairs: | 1-2, 3-6, 4-5, 7-8 |
| Socket type: | RJ45 (8P8C) |
| Case: | Metal, black |
| Norma: | Compliant with PN-EN61643-21 |
| Dimensions: | 94 x 50 x 31 mm |
| Libra: | 0.17 kg |
| Guarantee: | 2 lata |
