The device protects all pairs of wires in a four-pair cable

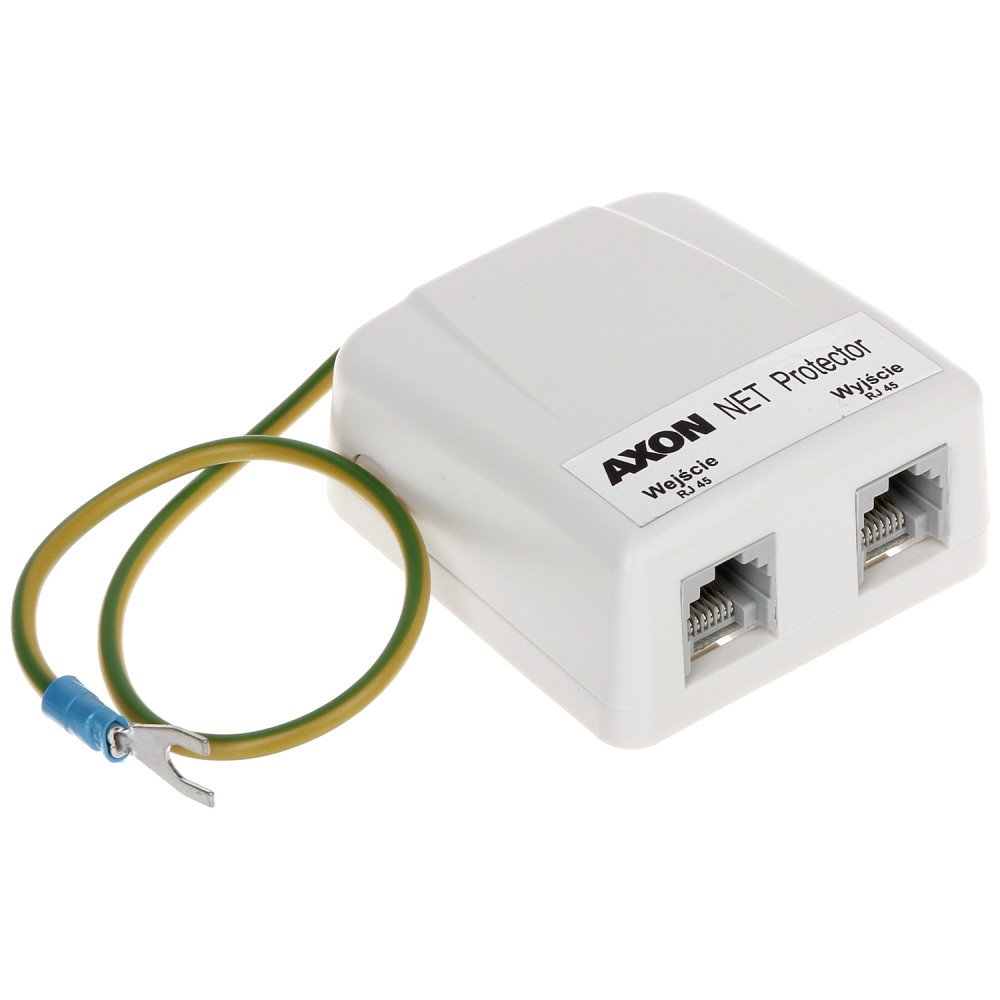

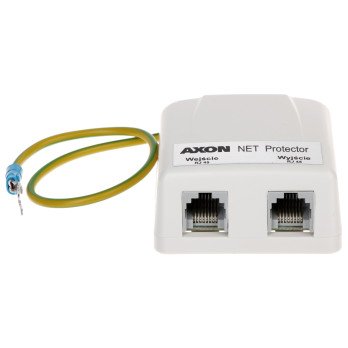

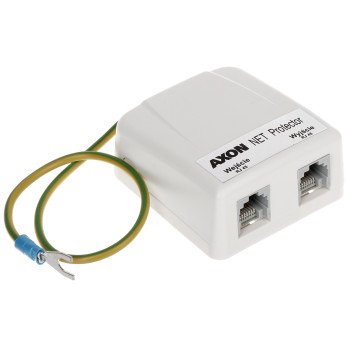

AXON-NET-PROTECTOR OVERVOLTAGE LIMITER
€178.08
Tax included
The device protects all pairs of wires in a four-pair cable
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The device protects all pairs of wires in a four-pair cable
Within each pair, overvoltage between the lines is eliminated and the emerging charge is discharged to the ground via the PE protective conductor.

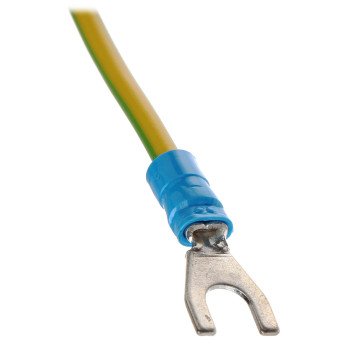

The condition for proper operation of AXON-NET-PROTECTOR is to connect it to an efficient grounding or PE protective conductor.
| Rated voltage: | 5 V |
| Maximum voltage: | 6 V |
| Line-to-line protection level: | 40 V ... 1 kV/µs |
| Line-ground protection voltage: | 600 V ... 1 kV/µs |
| Nominal discharge current (line-line): | 20 A (10/1000µs) |
| Nominal discharge current (line-ground): | 20 A (10/1000µs) |
| Protected wire pairs: | 1-2, 3-6, 4-5, 7-8 |
| Socket type: | RJ45 (8P8C) |
| Case: | Plastic |
| Color: | White |
| Norma: | Compliant with PN-EN61643-21 |
| Libra: | 0.052 kg |
| Dimensions: | 67 x 60 x 29 mm |
| Guarantee: | 2 lata |
