The OPV-4S surge arrester effectively protects the transmission line by allowing the surge current to be discharged to the ground, thus ensuring proper surge protection for electronic devices.

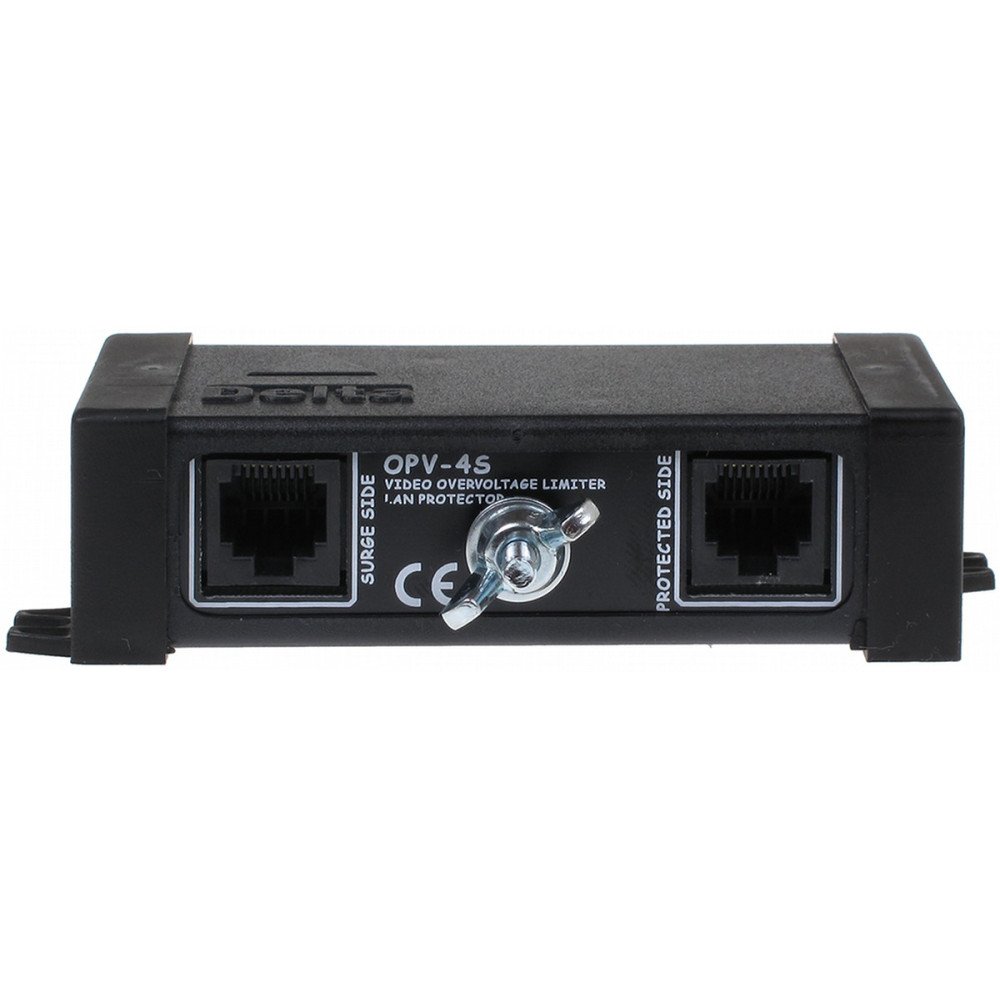

OPV-4S VIDEO SURGE LIMITER
€78.06
Tax included
The OPV-4S surge arrester effectively protects the transmission line by allowing the surge current to be discharged to the ground, thus ensuring proper surge protection for electronic devices.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The OPV-4S surge arrester effectively protects the transmission line by allowing the surge current to be discharged to the ground, thus ensuring proper surge protection for electronic devices.

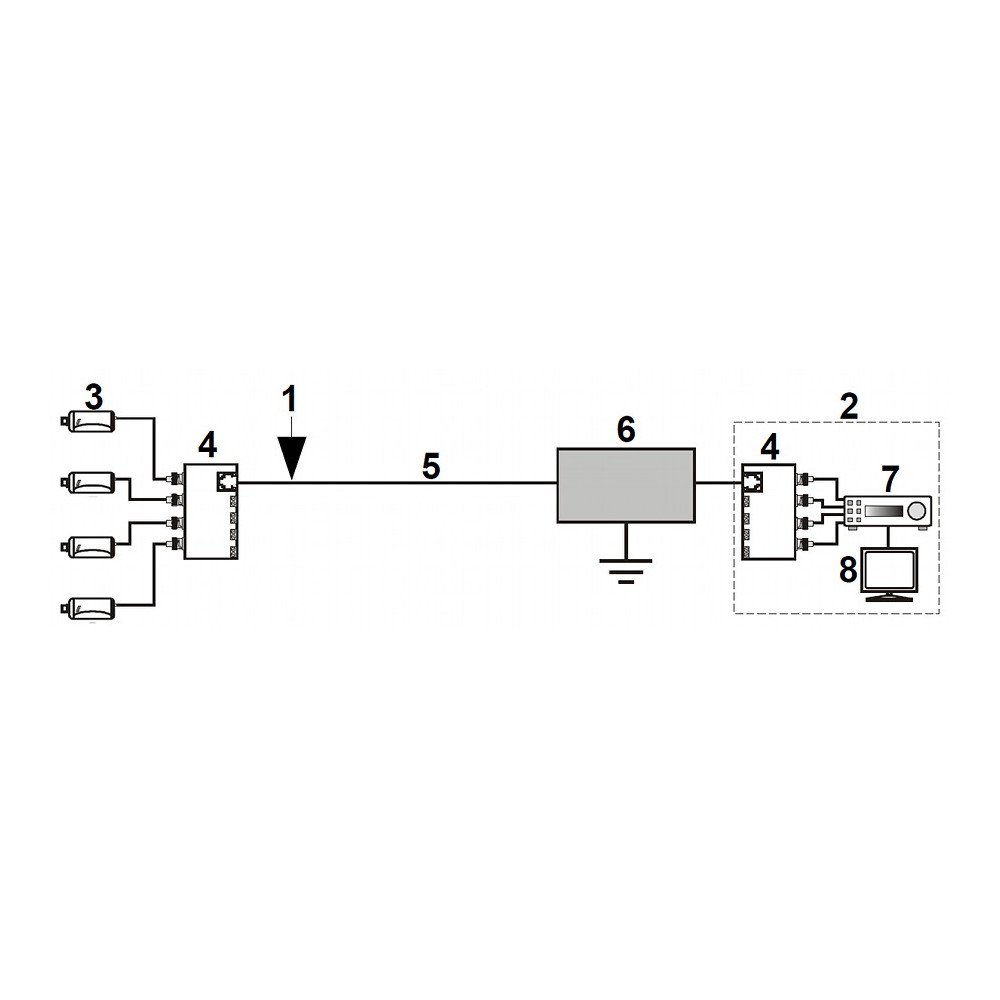

The device is dedicated to applications in which video signals are transmitted differentially via twisted pair cable
OPV-4S does not cause loss of signal quality and is a passive device that does not require power supply
ATTENTION! Before installation, please read the following recommendations: Connection work cannot be carried out during a storm. OPV-4S should be connected to a good grounding installation. The limiter should be placed as close to the protected device as possible
| Standard: |
|
| Protection voltage (core-core): | 2.4 V |
| Earth protection voltage (core-ground): | 18.4 V |
| Maximum discharge current (8/20µS): | 5 The |
| Line series impedance: | 1 OH |
| Capacity: | 7 pF |
| Action time: | 15 ns |
| Ground: | screw 5mm |
| Number of channels: | 4 |
| Protected wires in the RJ-45 connector: | 1, 2, 3, 4, 5, 6, 7, 8 |
| Destiny: |
|
| Symmetrical I/O connector type: | RJ-45 (8-pin, 4 pairs) |
| Operating temperature / relative humidity: | -50 °C ... 55 °C / 95 % |
| Dimensions (width x height x depth) / weight: | 120 mm x 30 mm x 60 mm / 0.08 kg |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 lata |
