The HG-140-15W semiconductor heater works based on a PTC thermistor
SEMICONDUCTOR HEATER HG-140-15W
€51.70
Tax included
The HG-140-15W semiconductor heater works based on a PTC thermistor
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The HG-140-15W semiconductor heater works based on a PTC thermistor
Heaters and heating blowers prevent condensation of water vapor and maintain the appropriate operating temperature of the devices
In order to obtain optimal air circulation, it is recommended to install convection heaters in the lower part of the switchboard in a vertical position.
Attention!
The device is intended for use only in closed switchboards
For safety reasons, a minimum distance of 50 mm should be maintained from cables and other devices
PTC thermistors are not suitable for series connection
In order to maintain a constant temperature in the cabinet, an appropriate thermostat should be connected in series to the heater
| Heating element: | PTC thermistor - semiconductor, self-regulating |
| Radiator: | Aluminum - Extruded profiles, Anodized surface |
| Connectors: | Cable clamps - 3 pcs. |
| Power supply: | 110 V ... 265 V AC/DC |
| Power consumption: | max. 1.5 A - at the moment of switching on |
| Moc: | 15 W |

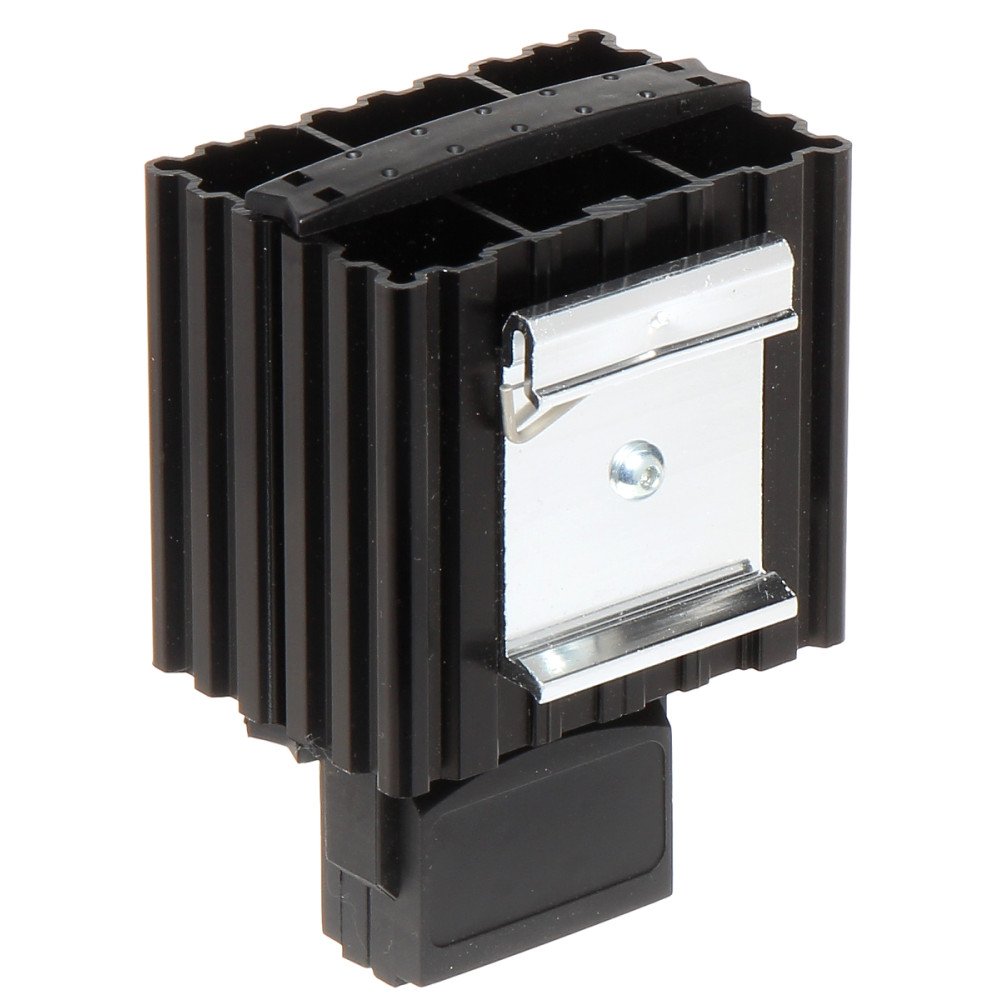

| Installation: | DIN TS-35 rail, vertical |
| Thermostat activation temperature: | 120 °C ... 140 °C |
| Working temperature: | -45 °C ... 70 °C |
| Libra: | 0.174 kg |

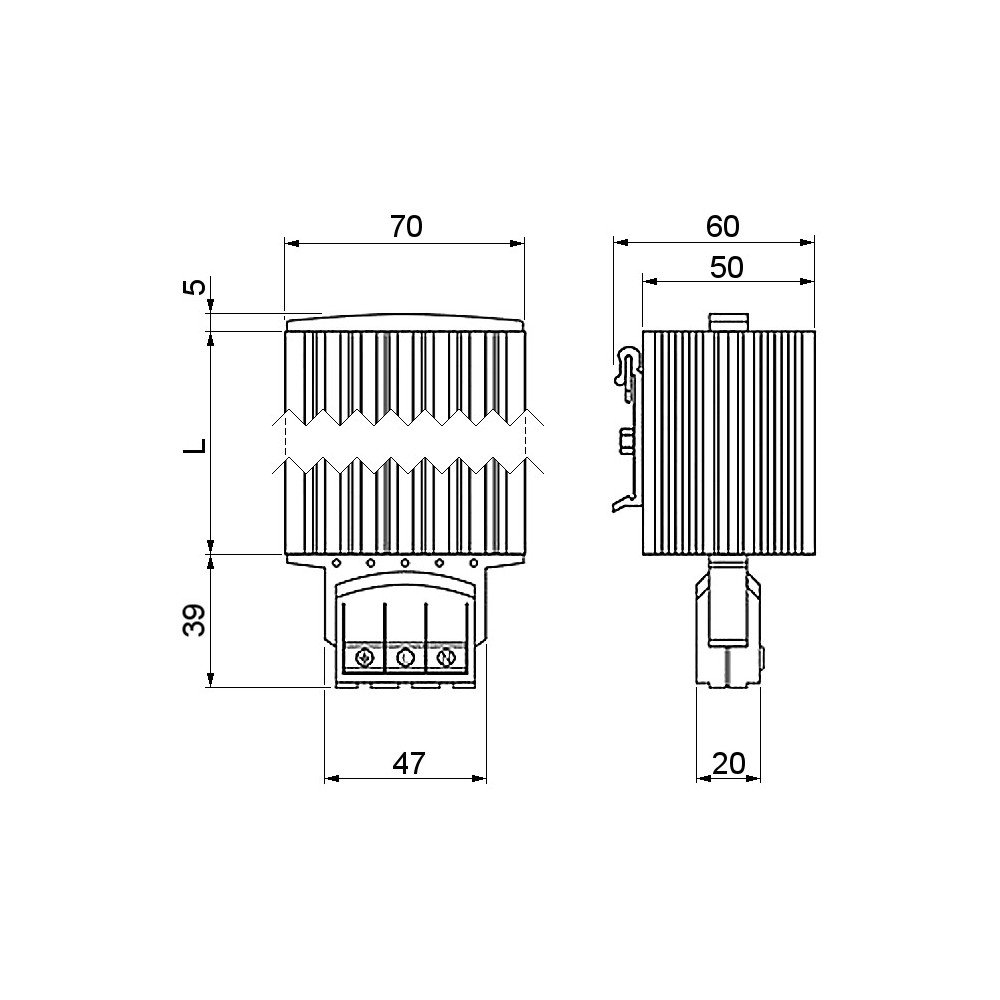

| Dimensions: | 109 x 70 x 58 mm |
| Guarantee: | 2 lata |
