The device allows you to transmit an HDMI and IR signal via single-mode optical fiber over a distance of up to 20 km
CONVERTER HDMI-OFT-20IR
€1,147.48
Tax included
The device allows you to transmit an HDMI and IR signal via single-mode optical fiber over a distance of up to 20 km
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The device allows you to transmit an HDMI and IR signal via single-mode optical fiber over a distance of up to 40 km

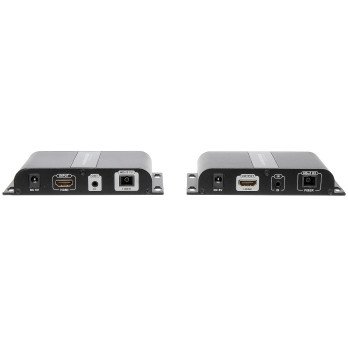

| Transmitter: | |
| Entries: | 1 pc. HDMI |
| Outputs: | 1 pc. LC 1 pcs JACK IR transmitter |
| Receiver: | |
| Outputs: | 1 pc. HDMI |
| Entries: | 1 pc. LC 1 pcs JACK IR Receiver |
| Supported HDMI input resolutions: | 480i @ 60Hz 480p @ 60Hz 576i @ 50Hz 576p @ 50Hz 720p @ 50/60Hz 1080i @ 50/60Hz 1080p @ 50/60Hz |
| Supported HDMI output resolutions: | 480p @ 60Hz 576p @ 50Hz 720p @ 50/60Hz 1080p @ 50/60Hz |
| Optical Wavelength: |
|
| Connector type: | LC |
| Optical fiber type: | SMF 0-40km |
| Receiver sensitivity: | ≤ -32 dBm |
| Output power: | ≥ -11 dBm |
| Damping: | ≤ 14 dB |
| IR Frequency: | 38 kHz |
| Dimensions: | 138 x 79 x 25 mm |
| Guarantee: | 2 lata |
