- Entries:Video Cinch, RF(F), Audio Cinch x2
- Video Frequency Range:20Hz...6MHz
- Audio Frequency Range:20Hz...15kHz
- Impedance:75 Ω

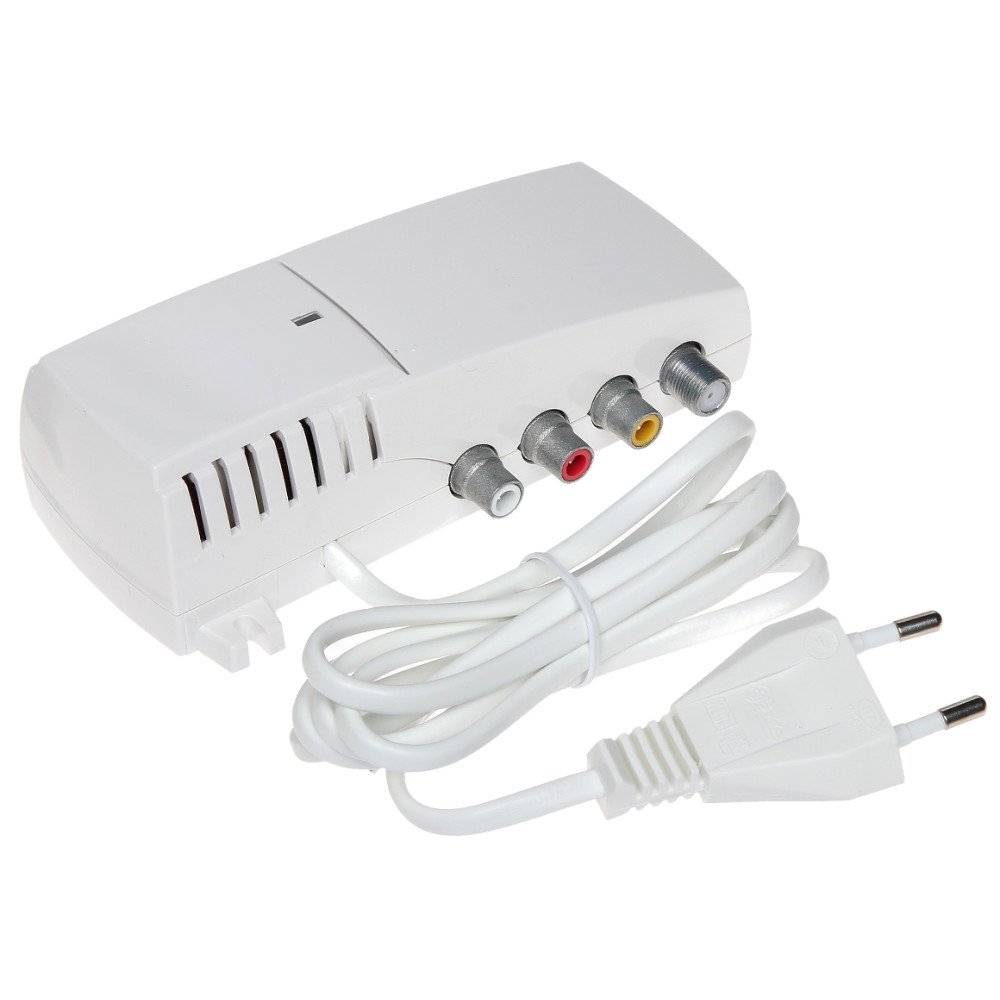

MODULATOR TV MT-47
€249.09
Tax included
- Entries:Video Cinch, RF(F), Audio Cinch x2
- Video Frequency Range:20Hz...6MHz
- Audio Frequency Range:20Hz...15kHz
- Impedance:75 Ω
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Double-band modulator with microprocessor control

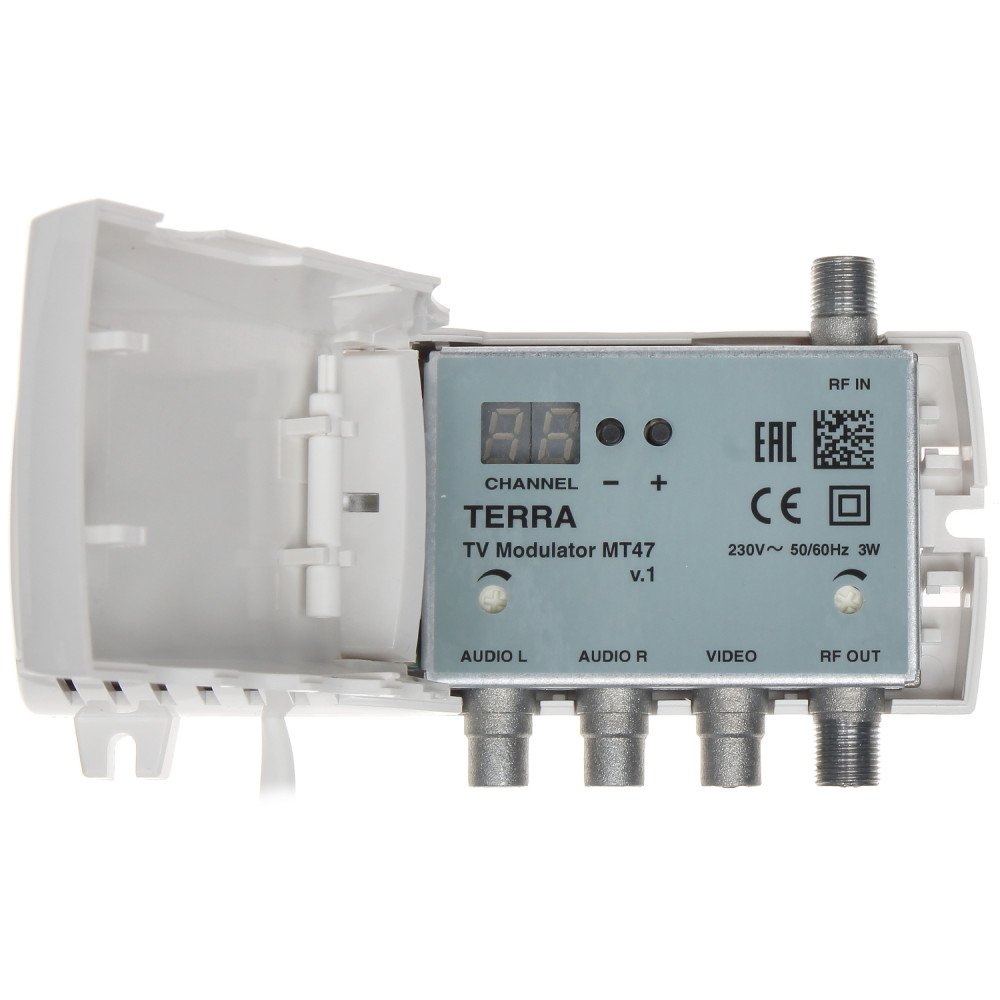

The output channel is selected using two buttons (visible after opening the cover), and its number, like any parameter described below, the value of which can be changed, is displayed on the LED display
The channel number and the values of other parameters are saved in non-volatile memory
The use of a quartz stabilization system (PLL) ensures almost zero frequency error
These modulators can be cascaded
They also enable summing of the modulated signal with the terrestrial television signal
It is possible to protect the modulator against unauthorized access
It should be noted that compared to the previous series of modulators, Terra has implemented more variants of the PAL system
| Entries: | 1pcs Video composite (Cinch) 1pcs RF (F) 2pcs Audio (Cinch) |
| Exit: | 1 pc RF (F) |
| Video input frequency range: | 20 Hz ... 6 MHz |
| Input level/impedance video: | 1 V ± 1 dB / 75 Ω |
| Audio input frequency range: | 20 Hz ... 15 kHz |
| Input level adjustment. audio: | 1 ... -14 dB |
| Level/impedance/input deviation audio: | 775 mV RMS / 10 kΩ / 50 kHz |
| Level (typical) / output impedance RF: | 85 dBµV / 75 Ω |
| Output level adjustment RF: | 0 ... -20 dB |
| PAL output signal version RF: | B/G/D/K/H/I/L/M/N/Australia |
| Frequency range (channels) output RF: | 170 MHz ... 230 MHz 470 MHz ... 862 MHz (K6-12, K21-69) |
| Carrier Accuracy: | ± 50 kHz |
| Audio subcarrier frequency: | 4.5 ; 5.5 ; 6.0 ; 6.5 MHz |
| Video carrier adjustment range: | ± 2.25 MHz max. in 0.25 MHz steps |
| SAT/Terr pass attenuation: | 2.5 dB / 1.5 dB |
| SAT/Terr flight frequency range: | 47 MHz ... 2150 MHz |
| Video frequency response: | ± 1 dB |
| A/V Ratio: | 12 / 16 dB |
| Amplitude modulation depth (typical): | 81 % |
| SNR (weighted): | ≥ 55 dB |
| Power supply: | 230 V AC @ 50Hz |
| Power consumption: | 2.5 W |
| Working temperature: | -10 °C ... 50 °C |
| Selected features: |
|
| Libra: | 0.336 kg |
| Dimensions: | 133 x 73 x 39 mm |
| Guarantee: | 2 lata |
