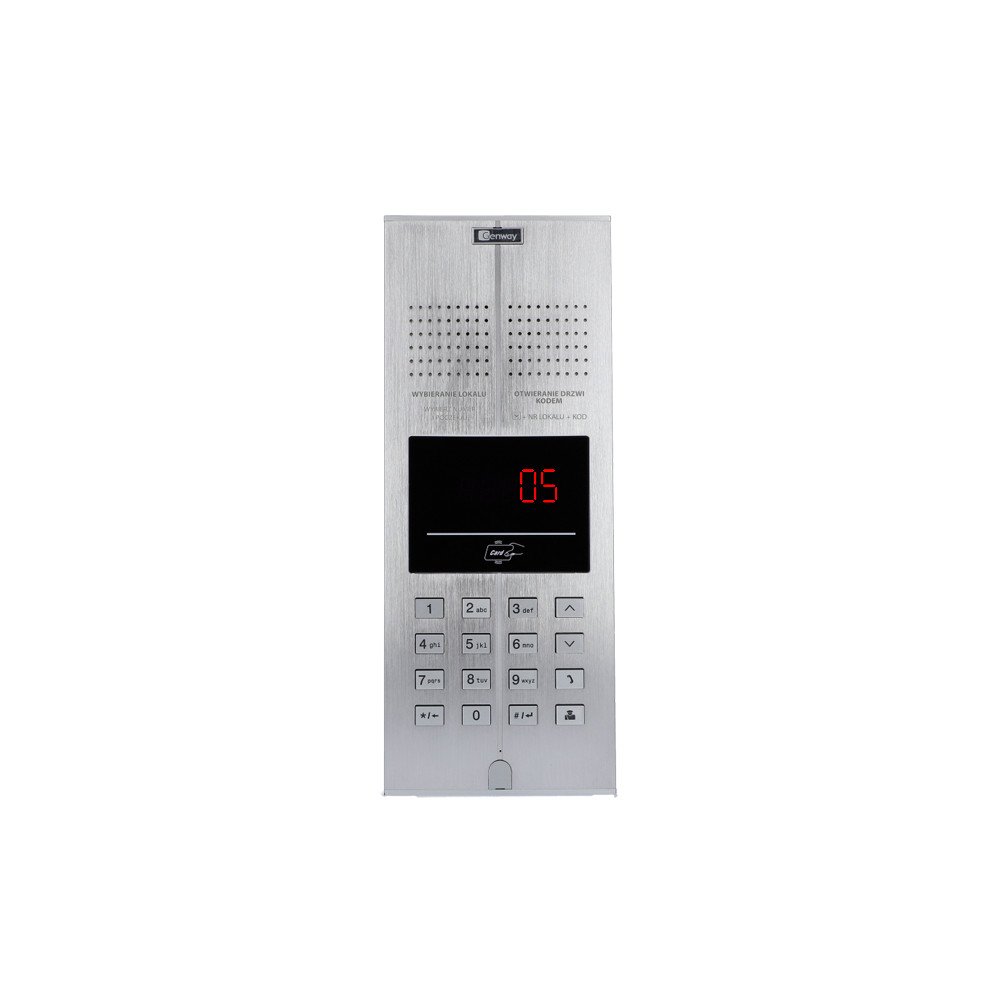

Digital intercom panel Genway WL-03NL V2 card reader Polish announcements

Digital intercom systemWL-03NL-V2is intended for installation in multi-family buildings for up to 400 users. The outer panel is made of aluminum. It hasbuilt-indisplay and backlitalphanumeric keyboard. Modular system (4-wire bus) with isolation functionerrors.

Single device failuredoes not causeimmobilization of the entire system. Connection of modules with uniphonesusing 2 cablesno polarization. This system can be expanded to 7 equivalent inputs using a moduleWL-03NQH-8. Each user has an individual door opening code.The panel is suitable for flush mounting.

A new version of the digital intercomWL-03NLalso supportsextensive volume control. It is global, foreveryoneuniphones simultaneously.

So you can setvolumebell in the uniphone and panel andintensitysound during conversation on both sides. There is also a choicesix bell tones.

The uniphone allows two-way communication with the external panel. It is used in WL-03NL series intercom systems.

A female voice informs the guest about the pressurekeys, confirmsopening the dooror transferserror information. Thanks to this, even visually impaired people will be able to operate efficientlyhandle the intercom.

Proximity tag can take ondifferentform. Fromclassicscards that we keep in our wallet, bybrelokclipped to your keys untilstickers, which we will place on the phone case. Much harderforgetabout the key inthis form.Unique 125kHz standard supported.

• aluminum cassette, vandal-proof
• connection between the external panel and the audio module - 4-wire bus
• connection between the audio module and headphone uniphones - 2 wires
• connection between the audio module and loudspeaking uniphones - 4 wires

Wiring:

• • up to 50 meters - cable with a cross-section of 0.75 mm
  • up to 100 meters - cable with a cross-section of 1.0 mm
• electric strike control using NO relay
• opening the lock using an individual code
• opening the lock using a 125kHz proximity tag (card, key fob, sticker)
• speech and ringtone volume adjustment
• Polish voice messages
• electronic bell - 6 types of bell to choose from
• power supply 12V-13.5/DC
• current consumption during standby - ≤70mA(DC12V)
• current consumption during operation - ≤250mA
• temperature range: -40 to +70 degrees Celsius
• maximum humidity: up to 90%
• panel dimensions: 331 x 134 x 45mm (height x width x depth)
• box dimensions: 325 x 117 x 35mm (height x width x depth)
• warranty 2 years
