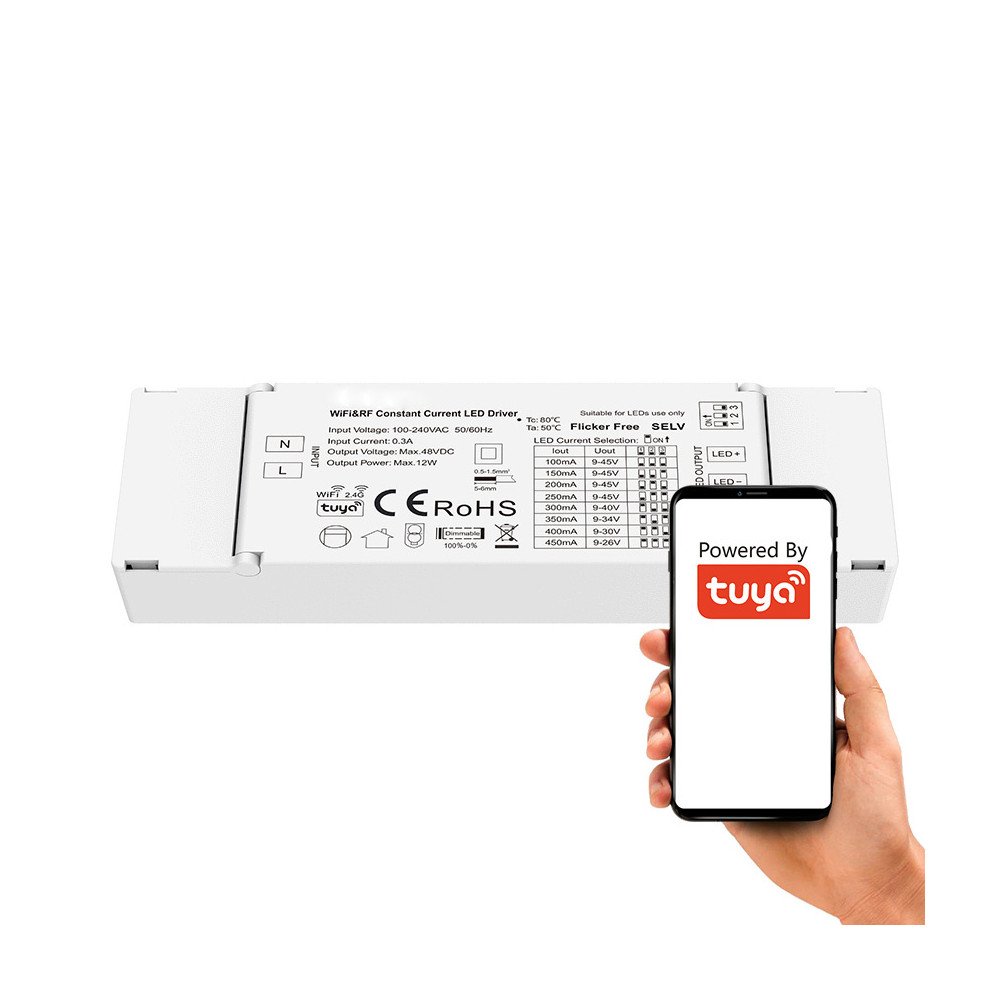

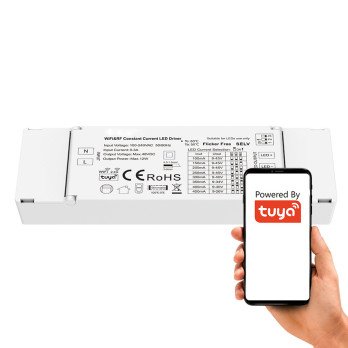

Mono LED Controller with 9-45V DC Power Supply SD Series WiFi + RF TUYA

Model from the SD series intended for MONO LED lamps - single-color.

WiFi + RF 2.4 GHz communication allows convenient and wireless lighting control with any smartphone via the TUYA Smart application.

The device has a built-in 230 V power supply, which allows you to connect lamps in the voltage ranges from 9 to 45 V. It also has a mA value setting (from 100 mA - 450 mA). This way, it is much easier to adjust the appropriate values ​​for the connected lighting.

It is also possible to additionally integrate RF remote controls from the SD Series, which communicate with each other at a dedicated 2.4 GHz frequency.

All SD series devices are available in our offers and in connected sets.

⭐ Main advantages: ⭐

• ✅ Control via the popular TUYA Smart | application Smart Life from anywhere in the world

• ⭐ Possibility to adjust the output parametersby means ofDIP switches
• ✅ Powered directly from the 230 V network
• ✅ Built-in power supply 12 W
• ✅ Collaborateswith lamps LED MONOabout tension9 - 45 V

• ✅Lighting functionw music rhythm(using smartphone microphone)
• ✅ Voice controlviaAmazon AlexatheGoogle Assistant, only for devices compatible with these systems
• ✅Unlimited possibilitiesautomation,cooperatingwith other TUYA devices

• ⭐ Pairing button for quick connection and disconnection

• ✅ Optionaltemporary effectwhen turning on and dimming the lights
• ✅ Configurationscheduleactivities, andtimerfrom the mobile application

• ⭐ Signal retransmission and synchronization, ensuring uninterrupted and correct operation

• ✅ Securityagainst overheating, overload or short circuit
• ✅ Mechanism to prevent erratic flickering of LED lights
• ✅ Works with RF remote controls2.4 GHzfrom the SD series(up to 10 simultaneously)

• ⭐An additional communication gateway is not required for the proper operation of the device,just connect to your home WiFi router

Examples of using the LED controller

Simultaneous support for multiple remote controls ✔️

One controller will support at a timeup to 10 RF remote controlsfrom a dedicated pageyou were SD,which you will find in our offer.

Signal retransmission and synchronization ✔️

The transmitted signal is synchronized and forwarded at the level of each receiver. This ensures stable operation of all connected light sources, while increasing the total wireless lighting range within one network.

Screenshots from the TUYA application

ℹ️ Visualization of the assembly

Below is a comparison of the LED lamp before installing the LED controller and after installing the LED controller from the dedicated SD series.

ℹ️ Communication system

*the presented range distances are approximate and refer to the absence of obstacles in the signal path

ℹ️ Current configuration

ℹ️ Technical drawing, dimensions and recommendations

• Every controller should keepminimum distance 50 cmso as not to shorten the life of the device due to poor heat distribution.

• The device should be installedat least 1 m from the floorso as not to shorten the signal range.

• Keep your distance20 cm from metal objects, which could block the transmission.

✨ Create an extremely advanced lighting system with the SD series! ✨

ℹ️ Specification:

• App:TUYA Smart | Smart Life
• Communication:WiFi + RF
• Power supply:100 ～ 240 V AND
• Dimming range:0～100％

• Max. output voltage:48 V DC
• Input current:maks. 0.3 A
• Output voltage:9-45 VDC
• Output current:100-450 mA
• Output power:max. 12 W
• PWM frequency:4000 Hz
• Frequency:50/60 Hz

• Temp. work:-20℃～50℃
• Max. housing temperature:80℃
• Degree of protection:IP20
• Certificates:CE

ℹ️ The set includes:

• Check the LED
• Instruction

ℹ️ Product code:LC099
