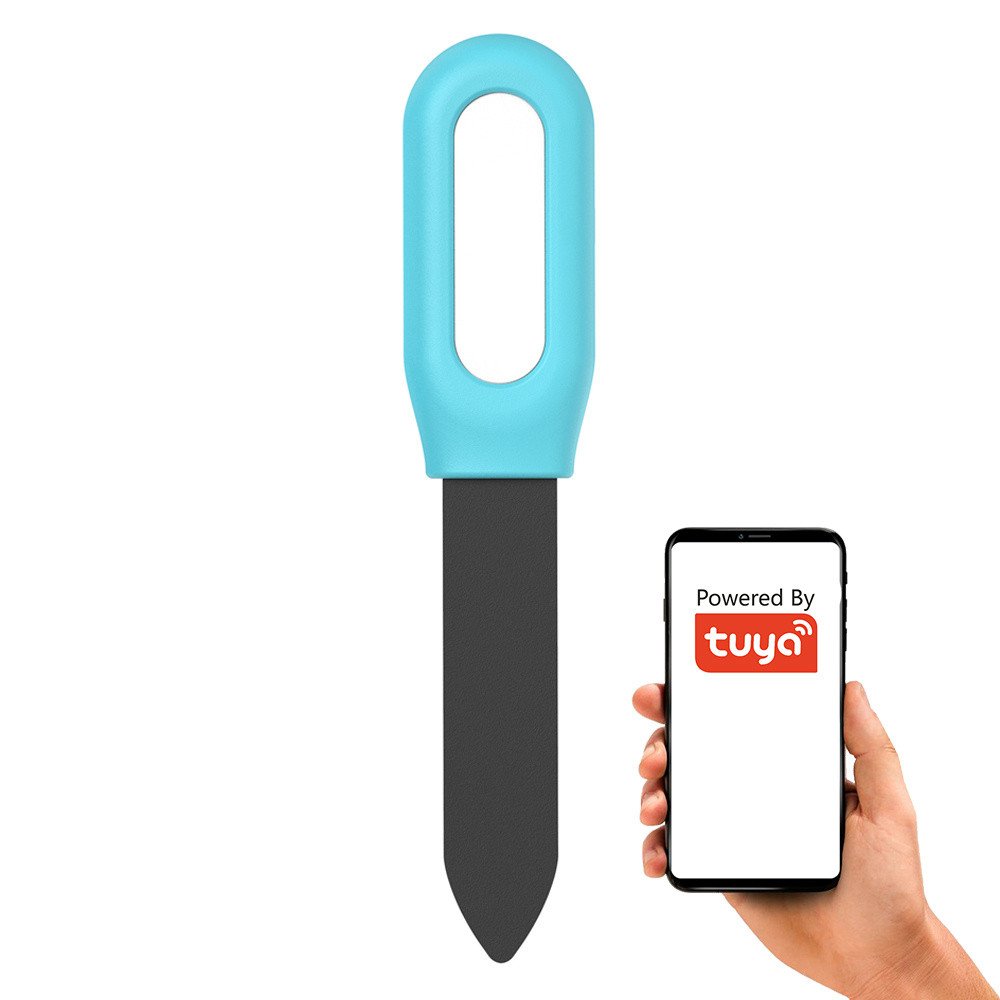

Wireless ZigBee soil temperature and humidity sensor for the TUYA application

A small, compact soil moisture sensor with ambient temperature measurement function.

After connecting to the ZigBee gateway, you can implement an automatic watering scenario based on soil moisture parameters from the T129 sensor.

Additionally, the device can serve as a reminder to manually water the flowers at home.

ATTENTION! For proper operation, a ZigBee gateway is required, which you can find in our offer.

Main advantages:

• Control via the free and popular TUYA Smart | application Smart Life from anywhere in the world
• It has an IP55 protection rating, so it can be used in a garden or greenhouse
• Measures humidity at the depth of the measuring rod and ambient temperature
• Can be used in conjunction with watering/valve controllers via automation
• Setting temperature units in the application (°C/°F)
• The data is visible in the application on an ongoing basis and historically in a chart
• Accurate temperature and humidity measurement
• Powered by two AAA batteries. You don't need any cable to operate the device!
• Possible notification on the phone when the battery reaches a low level of charge

ATTENTION! For proper operation, a ZigBee gateway is required, which you can find in our offer.

Accurate measurement

The device allows you to ensure adequate irrigation and prevent the soil from drying out or freezing. This will allow you to enjoybeautiful and healthygarden or flowers at homewithout unnecessary water wastage.

Application

The device can be used in greenhouses, on the terrace, on the balcony or at home, providing plants with appropriate conditions for growth and development.

If you are looking for an outdoor sensor for the garden, we recommend a model with IP67 water resistance, available in connected sets.

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi takes about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network problems. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

IP55 protection

Error 500 (Server Error)!!1500.That’s an error.There was an error. Please try again later.That’s all we know.it is fully dust resistant, which means that no particles will get inside it, ensuring its uninterrupted operation. Additionally, it is alsoresistant to water splashes,so they can be safely used in humid or splash-prone environments.

Dimensions of the soil temperature and humidity sensor

Specification:

• App:TUYA Smart | Smart Life
• Communication:ZigBee
• Power supply:2 x AAA battery(not included)
• Humidity measurement range:0-100%
• Humidity measurement accuracy:±3% (50%), ±5% (50%)
• Temperature measurement range:-20 ℃ do 60 ℃
• Temperature measurement accuracy:±1 ℃
• Protection Level:IP55
• Dimensions:161x31,5x19 mm

Included:

• ZigBee TUYA soil temperature and humidity sensor
• Instruction

Product code:T129
