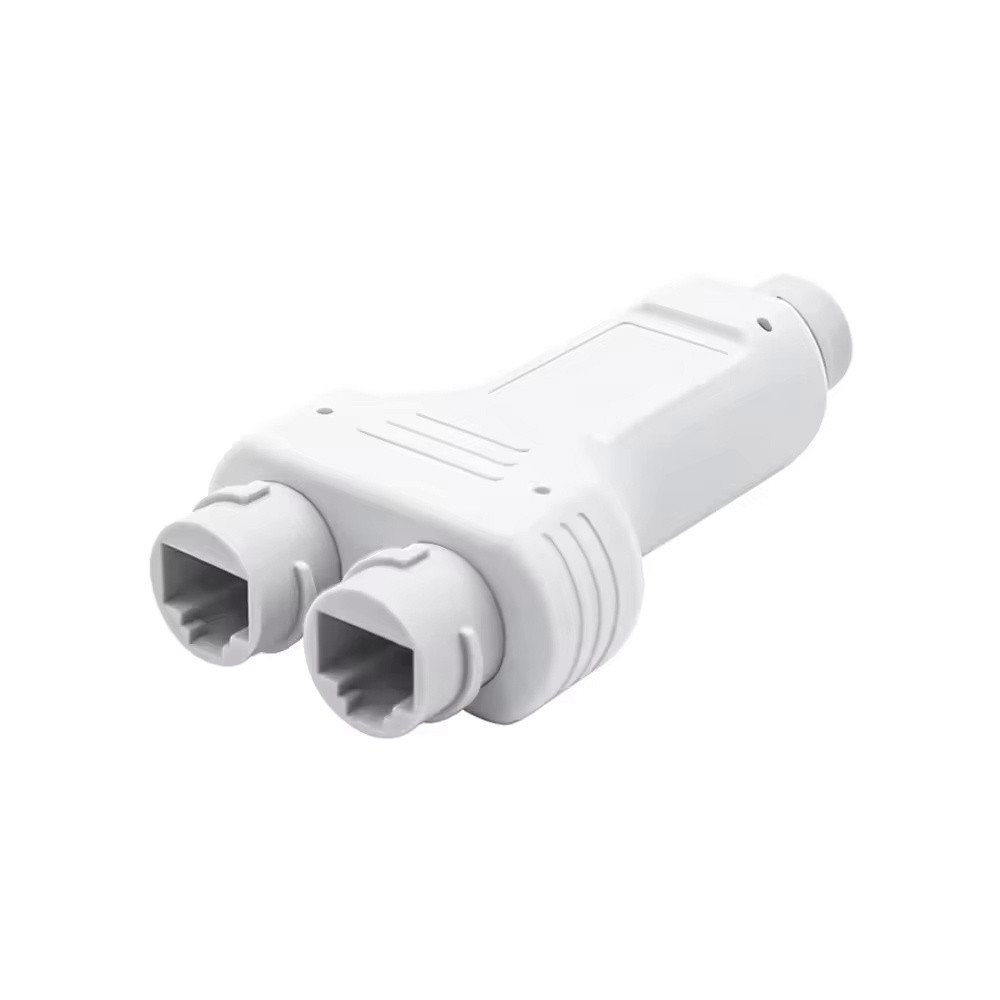

Splitter Repeater for IP cameras active POE 2 Ports 48V IP66

➡️ The device will allow you to easily and quickly expand security and CCTV monitoring systems, while saving unnecessary cabling. Two ports work within one connector, so you don't have to worry about details such as additional power or configuration of connected cables.

✅ The adapter allows you to divide one cable from the POE switch into two outputs, e.g. two cameras.

✅ The device works on the PlugPlay principle, which means that the cables are functional and ready for use the moment they are connected, without additional steps.

✅ A special feature of this model is its waterproof properties, which make it resistant to external factors such as rain and snow.

✨ If you are looking for how to split a POE cable for two cameras, this offer is perfect for you!

⭐ Main advantages ⭐

✅ Waterproofthanks to the high IP66 tightness class

✅ Intelligent power supplydirectly from the device connected to the input port

✅Power coming from the port with powerdo 30Wenables25.5W output powerwithin both ports

✅ Multi-stage tightness system,preventing moisture from penetrating the components

✅ Resistance to weather conditions,such as rain and snow

✅Using the standard IEEE802.3af/at protocol

✅Functionality without the need for additional configuration according to principlePlugPlay

✅ 2 in 1 functionalityas an extender and repeater/splitter

✅ Link bandwidth 0.6Gbpsandtransmission speed 10/100 Mbit

✅ Signal retransmission up to 100 m without noticeable interference or delay

✔️ Multi-stage tightness

The device consists of several waterproof elements, each of which provides a different degree of tightness. Together they create a system that prevents moisture from penetrating other components. This applies to the base, the rubberized plug, the outer casing and the seal. The set includes one such set for each port.

❄️ Resistance to weather conditions

Thanks to the above-mentioned structure and the way the material was constructed, the device casing gains properties that allow it to operate in difficult weather conditions. The POE splitter will remain in functional condition despite high or low temperatures ranging from -10°C ~ 60°C. It is also adapted to conditions such as direct rain and snow.

✔️ Expand your installation without the need for more cabling

One cable is able to retransmit the signals of two cameras at the same time.

✨ Plug it in and it's ready

The device works on the Plug Play principle. No additional configuration is needed for the device to be functional.

✔️ No more assembly puzzles

A POE splitter will solve many problems around additional power and range limitations. The device is able to retransmit the signal up to ~100 meters, does not require additional power supply and maintains fast synchronization of the connected elements.

This saves unnecessary maintenance costs due to the lack of additional components, reduces the time spent on installation and minimizes the amount of cabling needed. Thanks to this, the device can be used in various circumstances for security and monitoring systems.

ℹ️ Description of elements:

1. POE input port
2. Power indicator
3. Network signal indicator
4. Output port indicators
5. POE output ports

*The input port supports the IEEE802.3af/at protocol with a maximum power of 30 W, and is compatible with a standard PoE switch.

*Each output port also supports the IEE802.3af/at protocol with a maximum output power of 25.5W, allowing simultaneous connectivity to a standard POE Switch.

ℹ️ Connection system:

ℹ️ The set includes:

ℹ️ Specification:

• Output power of each POE port:max. 25.5 W
• Network interface:1*10/100Base-T PD receiving port 2*10/100Base-T port POE
• MAC Address List:1k
• Link bandwidth:0.6 Gb/s
• Transmission speed:10/100 Mbit
• Output port power pin:1/2(+), 3/6(-)
• Protocol:IEEE802.3af/at
• Signal range:≤ 100 m
• Working temperature:-10°C ~ 60°C
• Tightness class:IP66
• LPS class:2kV 8/20us
• Material:PVC
• Certificates:CE, FCC, RoHS

ℹ️Dimensions:92 x 46 x 22 mm

Product code: U013
