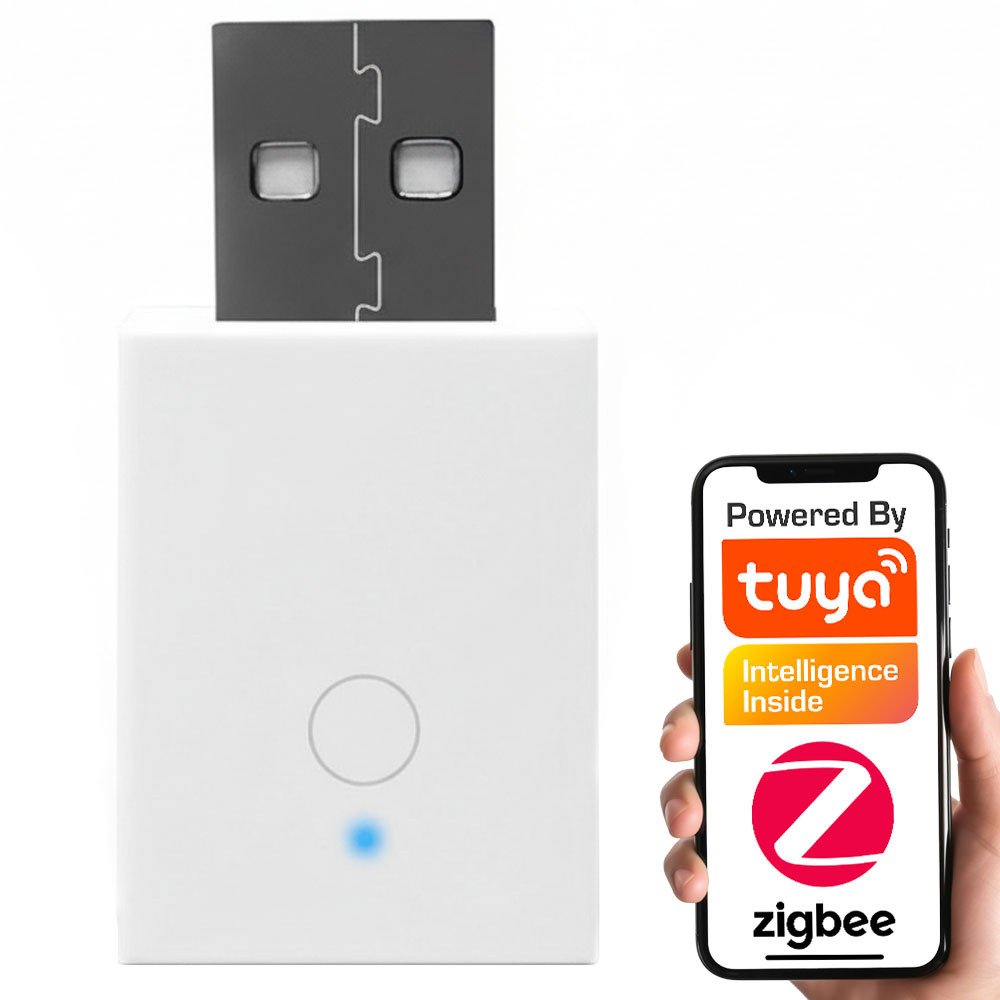

Signal amplifier USB Repeater +21dBm ZigBee TUYA Smart

This device effectively amplifies the signal (+21dBm) of ZigBee gateways. Thanks to it, you will strengthen the ZigBee communication signal.

The amplifier can be connected to any USB socket (including 5 V 1 A), e.g. to a charger, USB socket on a TV or laptop.

The use of the device will allow the ZigBee signal to reach places where the signal is very weak or non-existent.

Do you want to improve the quality of the ZigBee signal in your home? This device will be perfect for you.

Main advantages

• Control via the popular TUYA Smart | application Smart Life from anywhere in the world
• Increasing ZigBee coverage in your home
• The device has a transmitting power of +21 dBm
• Can be connected to any USB port
• Simple construction
• Small size and weight
• Durable material resistant to wear and high temperatures

ATTENTION! For proper operation, an additional ZigBee communication gateway is required, available in our offer.

Effectively extend your ZigBee range with a signal booster

If the signal in your ZigBee network is insufficient and you experience incorrect or delayed operation of smart devices, a signal booster will expand your network and increase its stability.

Reach even further

Thanks to our device, the main ZigBee gateway will forward its signal. The amplifier is equipped with the latest ZigBee 3.0 communication protocol.

Thanks to the amplifier, the signal from the gate will reach the furthest places, which are often blocked by various types of obstacles and barriers, such as walls, doors or interior furnishings.

Low weight and size of the amplifier

Entering pairing mode

When you turn on the device for the first time, it should automatically enter pairing mode, if this does not happen, hold down the button on the device for a few seconds. A flashing LED will indicate successful entry into pairing mode.

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network problems. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

Dimensions:

Specification:

• Communication: ZigBee
• App:Yours Smart | SmartLife
• Power supply:5 V 1A
• Temp. work:0 - 55°C
• Color:white
• Reception:20 ~ 30 m
• Dimensions:50,5 x 24 x 8 mm

Included:

• Signal amplifier USB Repeater +21dBm ZigBee TUYA Smart
• User manual

Product code:T021
