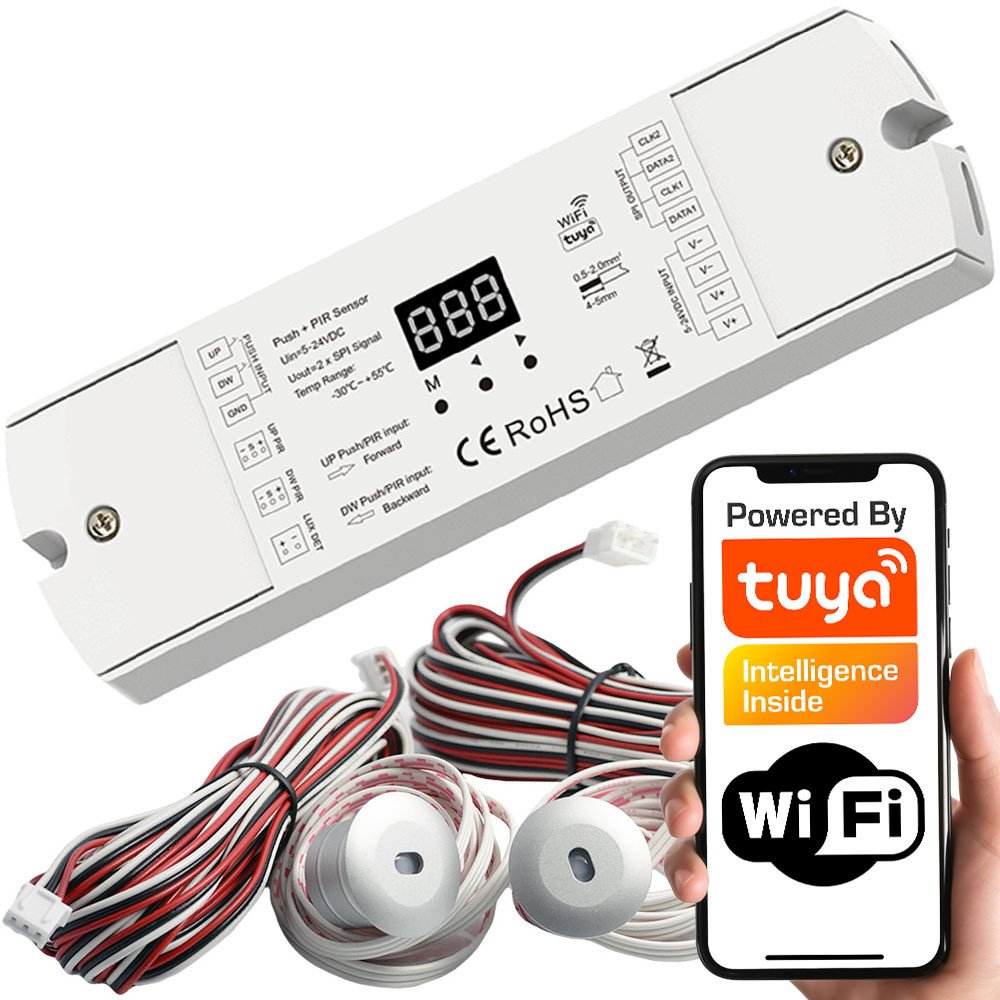

RGBIC LED controller | CFI | 5–24V | WiFi | Tuya Smart

Dynamic lighting of stairs, corridors and passages

▶️ The controller works with SPI digital LED strips and allows control up to960 pixels.

▶️ Thanks to the applicationYours Smartyou gain full control from your phone.

▶️ Motion and light sensors that activate the light only when needed

✅ Dynamic lighting effects

Smooth transitions and individual LED control

It supports RGBIC strips with light wave effects, allowing you to illuminate the space step by step.

The driver offersdynamic animationsifull personalizationcolor, brightness and speed.

✅ Full automation

PIR sensors and light sensor included

▶️ 2 motion sensors(range up to 3 m, angle 30°) activate the light when motion is detected.

▶️ Light sensorprevents the lighting from turning on during the day.

✅ Built-in LCD display

Full control – locally and remotely

The display allows you to quickly select effects, colors, brightness and modes without the need to use your phone.

✅ Tuya Smart App

Remote control from anywhere at any time

Using the Tuya or Smart Life application, you can set schedules, lighting effects, brightness, time and mode of operation.

▶️ Support for various types of LED strips

Universal use

• ✅MONO– single-color

• ✅RGB– multicolored

• ✅RGB+W– with an additional white diode

ℹ️ Specification:

✅ Connectivity and control

• Communication:WiFi 2.4GHz
• App:Tuya Smart | Smart Life
• Input signals:PIR, button, application

✅ Power and outputs

• Tension:5–24V DC
• Max current:do 15A
• Outputs:2 x SPI (TTL)

✅ Support for LED strips

• Max. number of pixels:960
• Compatible chips:WS2812B, WS2811, UCS1903 and others

✅ Physical parameters

• Range detection: 3 m / 30°
• Temperature work: -30°C ~ +55°C
• Case: IP20

Product code: LC044
