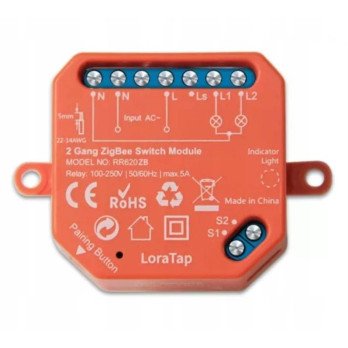

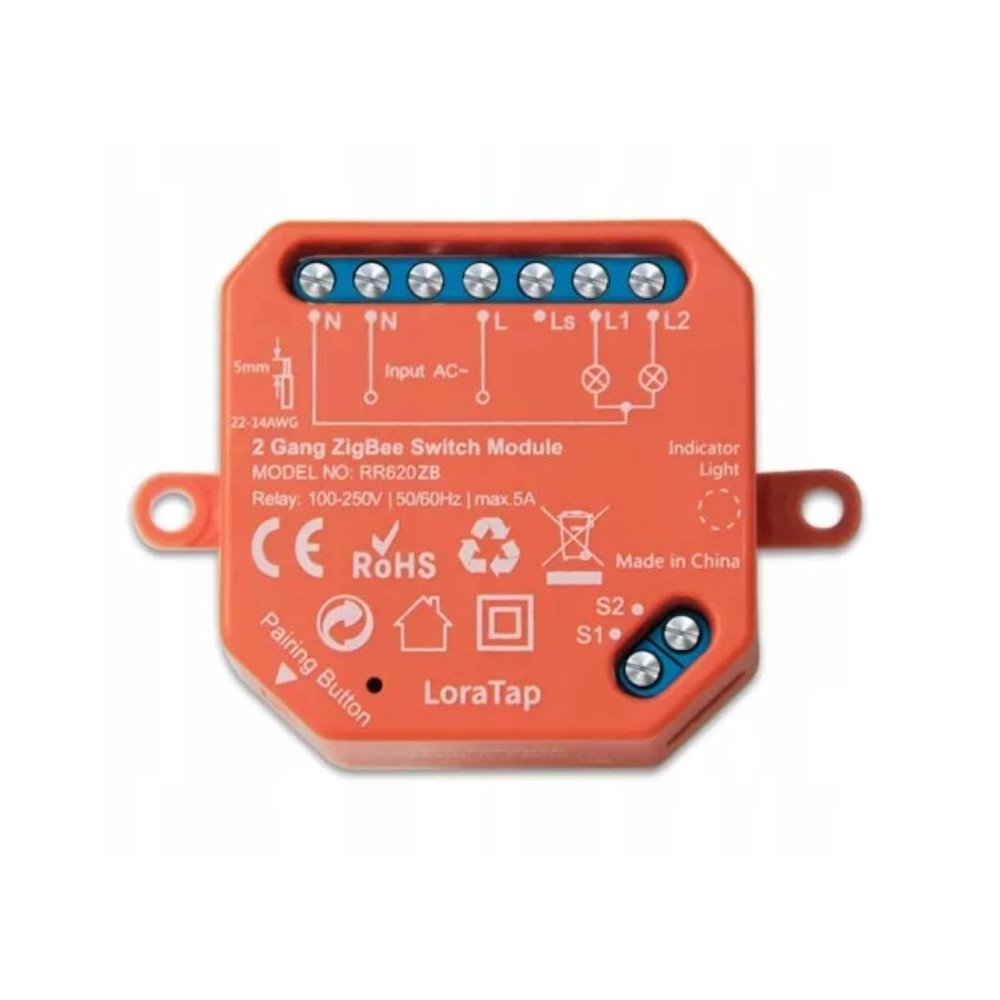

Relay controller 2 circuits ZigBee LR TUYA

In-wall 2CH ZigBee relay from the LR series

Key advantages:

• Intelligent lighting control
• Can be placed in a box under the light switch
• Control from the most popular home automation application Tuya(available for free in the App store or Google play)
• The device works with bistable switches!
• Creationintelligent automation depending on e.g. weather or time
• Time schedules, set the lights to turn on depending on the time
• Timery, count how long the light should be turned on/off
• Works with Amazon Alexa / Google Assistant. You can turn the light on/off, hands-free using voice functions.
• Compatible with all major international voltage standards
• Possibility to set the option in the application to remember the device's state before the power loss!
• Ability to create automation based on: on/off, countdown and previous switch state
• Works with all devices added to the Tuya Smart application
• The option of controlling the relay by several users added in the application is available

Attention! This device requires a ZigBee 3.0 TUYA gateway available in our offer

Specification:

• Input voltage: 100-250V AC, 50/60Hz
• Output voltage: 100-250V AC, 50/60Hz
• Current intensity: 5A / channel
• Communication: ZigBee 3.0
• Standard ZigBee: IEEE 802.15.4
• Application: Tuya
• Voice control: Amazon Echo Alexa, Google Assistant
• Dimensions: 47mm x 48mm x 23mm
• Works with bistable and monostable switches after changing the software.
• Degree of protection: IP20

The set includes:

• Plug-in relay
• 4 cables
• Double-sided adhesive tape
• User manual

Product code: T532

Build your own smart home

No piercing walls or running cables!

The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called "cloud".

It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can use the application to build a network of intelligent dependencies. The operation of the devices depends only on the creativity of the user.

The list of wireless system components is constantly expanding in our offer.

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much broader and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.
