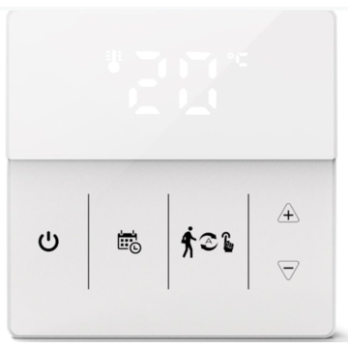

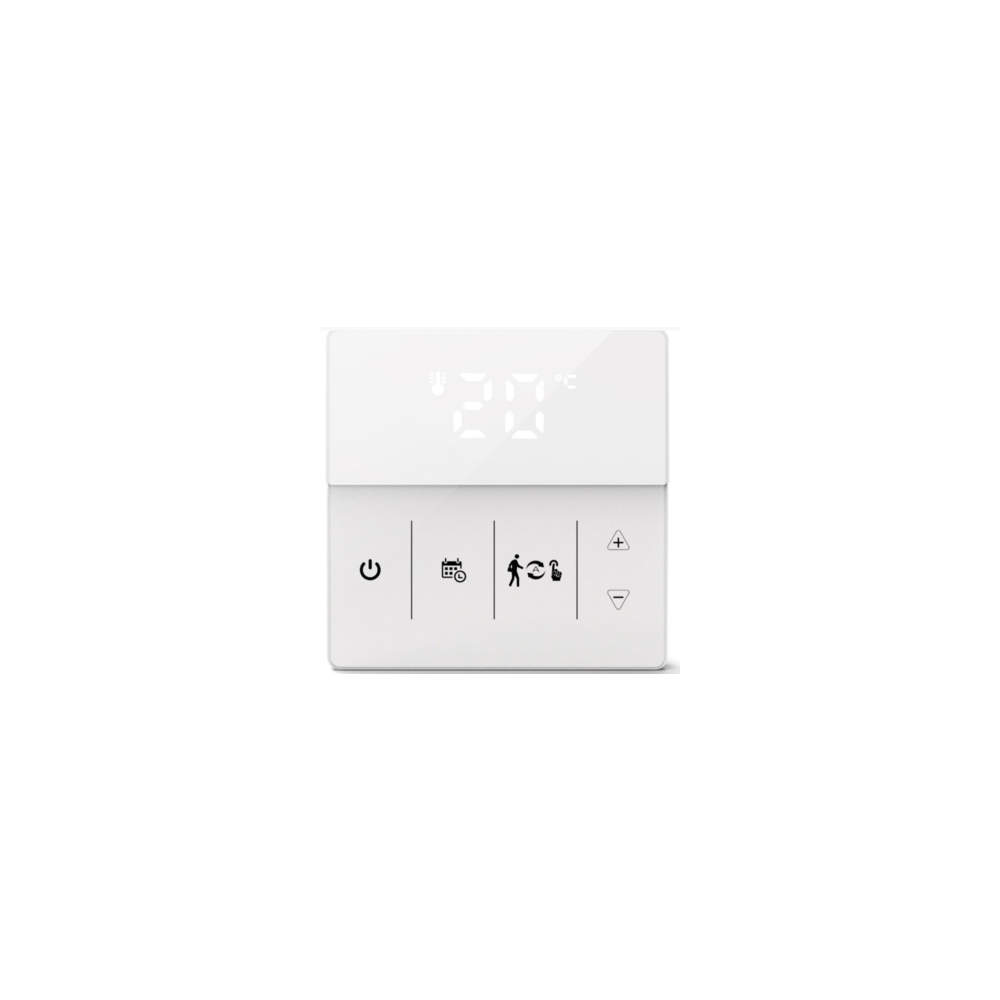

Digital WiFi Thermostat for home heating and building automation applications.

This version for the extremely popular TUYA SMART!

The latest model with an aesthetic, minimalist screen and simple operation buttons.

Variant with voltage-free NO contacts (closing the circuit) - gas furnaces, coal furnaces, etc.

Key advantages:

• It has a precise built-in temperature sensor
• Control via touch interface and free application for IOS or Android - TUYA.
• Works with Google Home and Amazon Alexa.
• Aesthetic, modern look.
• Fits standard Polish flush-mounted boxes.
• Possibility of programming 7 days a week, 6 cycle changes per day.
• Possibility to set the heating week in the following dimensions: 5+2, 6+1 and 7
• Possibility to share control via the application with many users.
• It connects to your home WiFi, you can control it from any location in the world. The thermostat does not require any gateways or any fixed IP addresses or port forwarding.
• It has the possibility of automation based on the heating function - heating/not heating, i.e. it is possible to add an external relay that will turn on and off according to the heating status of the thermostat.

A smart home in your hand!

Control the app from any location in the world

Voice control using Google Home or Amazon Alexa

Control the built-in touch panel

Configure advanced execution scenarios in the application with other sensors and devices compatible with the TUYA application (example of automation below - when the window is open, turn off the thermostat and stop heating)

Control your heating from any location.

When you go on a trip, change your schedule to maintain a low temperature, and warm the house to the appropriate temperature a few hours before your return.

A wide range of advanced options in the application!

The application interface allows you to change many settings, so that after adjusting everything to your preferences, you do not have to worry about the heating in your home.

• It has the possibility of automation based on the heating function - heating/not heating, i.e. it is possible to add an external relay that will turn on and off according to the heating status of the thermostat.

Password for advanced settings: 123456

A smart home in your hand!

The device works with Tuya Smart - the most popular application for IoT devices (Internet of Things)

• integration of over 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10,000 smart device manufacturers
• expanded daily with new features and supported devices
• available for free for Android and iOS
• translated into Polish.

Programmable thermostat

The offered model with a thermostat function and control via a WiFi application has a fully programmable interface. You can set a switching schedule for 7 days a week, up to six cycle changes per day. You can easily adjust the temperature cycles to your needs. Controlling your thermostat has never been so easy. Just change the parameters in the application on your phone wherever you are.

Modern design

Aesthetic, eye-catching display, the offered digital thermostat has an elegant and modern design. All its functions can be easily accessed and controlled through the intuitive user interface from the application or touch buttons on the panel. Thanks to its modern design, it will fit perfectly into any home or office interior.

Energy saving

Use the programmed thermostat mode to fully optimize your home heating. Set your schedule to take into account lowering the temperature at night and when no one is at home. If you need to make adjustments, you can always do it quickly by changing the parameters in your phone's application. You can make changes from any location with Internet access. By programming the schedule correctly, you can be sure that you are not wasting money on heating an empty house.

Technical specifications

• Power supply: 90-240C AC 50/60 Hz
• Measurement accuracy:0.5°C
• Normally open contact load current: 3 A
• Working temperature:0~90°C
• Temperature configuration range:5~35°C
• Measurement display range:0~40°C
• Normally open ports on port 5 - 6
• Program settings:setting the week as a cycle
• Dimensions: 86x86x10 mm
• App: Yours Smart

Ports:

• 1 Normally closed with voltage
• 2 Normally open with voltage
• 3 Neutral Wire
• 4 Phase Wire
• 5 and 6 potential-free, voltage-free make ports

Package contents:

• 1x thermostat with a screen with touch buttons and a built-in temperature sensor
• 2x mounting screws
• 1x user manual

Product code: TR062
