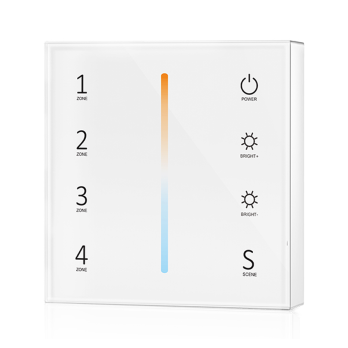

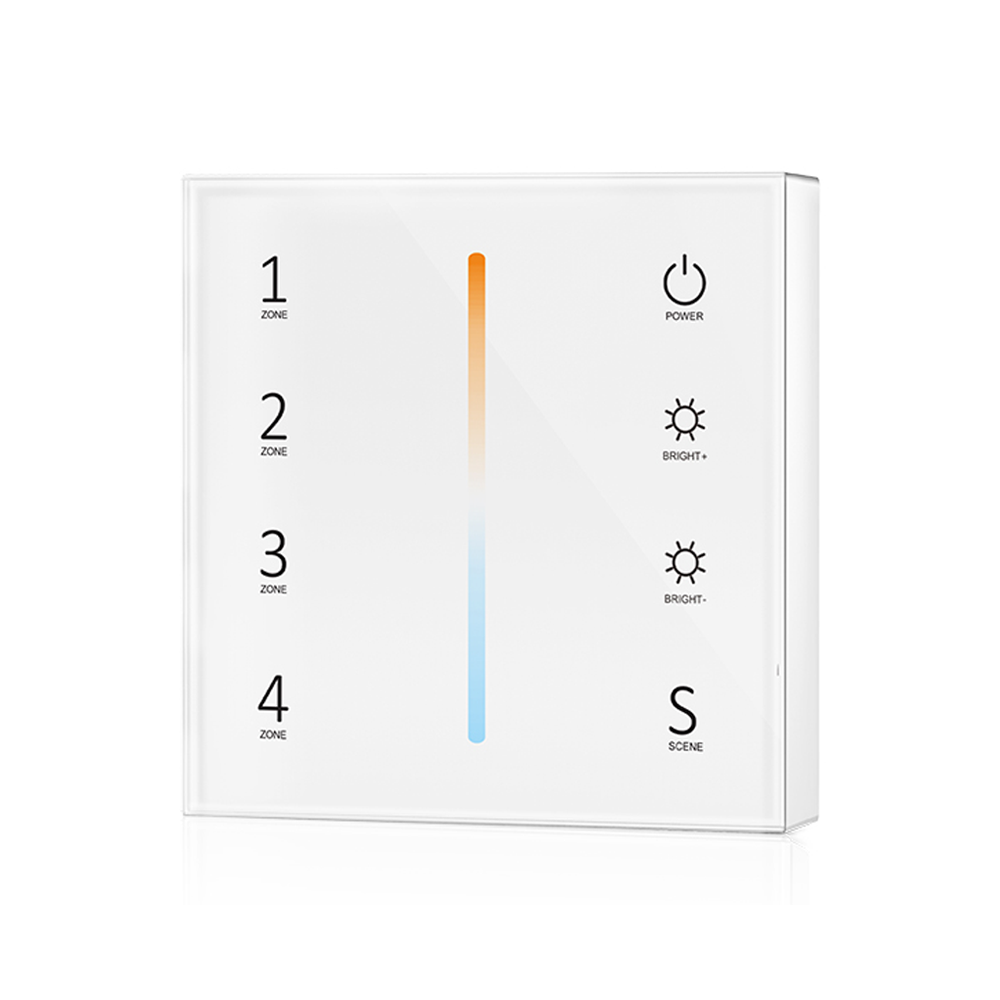

Wall-mounted control panel for SD series LED controller, CCT strips (white temperature change)

This is a high-quality product designed to control LED controllers SD series.

The device has an aesthetic appearance and will fit into any interior.

Device operation:

The device is powered by 2X AAA batteries (not included)

• 1,2,3,4 Zone selection:Multiple controllers can be assigned to each zone
• Power: Turn on/off the SD remote controller light by RF signal
• Bright+ : Brighter
• Bright- : Darker
• Scene: Scene Selection

In addition to regulating the white color temperature, the device is also used for: turning off the lightorchanging its brightness. In additioncontrols 4 zones and triggering a change of 2 scenes.

Attention! The remote control is only compatible with LED controllers, relays and dimmers from the SD Series ("SD Series" in the name)

Create an extremely advanced lighting system with the SD series!

Search for other remote controls, controllers, relays and dimmers in our SD series offer

Specification

• Output signal: RF (2.4GHz)
• Power supply:3V DC (2x bateria AAA)
• Operating current:20mA
• Standby current:20µA
• Standby time:1 year
• RF Range:30m (in open space)
• Temp. actions:-30°C - 55°C
• Degree of protection:IP20 T22

Product code: PLD044
