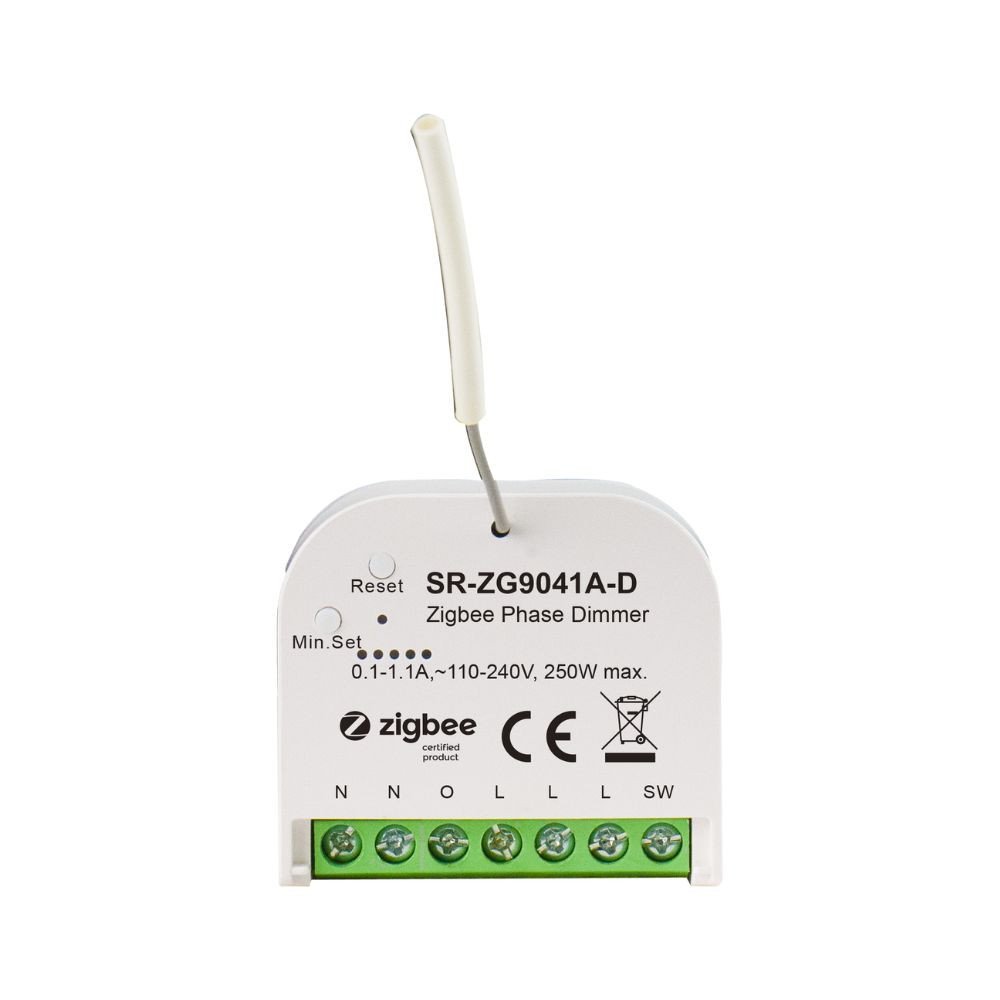

Sunricher Zigbee retrofit smart dimmer, 230V AC no neutral, 250W (SR-ZG9041A-D)

The Sunricher SR-ZG9041A-D is an ultra-compact, Zigbee 3.0-based phase-cut (Triac) LED dimmer, specifically designed for modern smart home systems. The device operates on a single live wire – no neutral wire or additional cabling required – making it an excellent solution for retrofitting older buildings or installations with design constraints. It also supports power consumption monitoring, making it useful not only for dimming but also for energy tracking.

This miniature dimmer is highly versatile: thanks to its 100–240 V AC input and output, it can handle up to 200 W (at 220 V) or 100 W (at 110 V) loads. It supports both leading-edge and trailing-edge dimming technologies, which can be pre-configured at the factory. An innovative minimum brightness setting function allows users to define a minimum brightness level and dim up to 100% from there. This setting can be cleared anytime with ease.

Main Product Features

• Zigbee 3.0 support – compatible with most Zigbee smart home hubs
• Single Live Wire design – no neutral wire required, simple installation
• Power monitoring – real-time energy consumption measurement
• Input and output voltage: 100–240 V AC, max. load: 200 W (230 V) / 100 W (110 V)
• Compact size: only 42 × 38 × 16 mm
• Leading-edge and trailing-edge dimming – factory preset option available
• Minimum and startup brightness configuration – fine-tuning for LED drivers
• Soft start function – protects light sources with gentle power-up

Smart Home Protocols and Compatibility

• Zigbee 3.0 mesh – full interoperability with Touchlink pairing support
• Touchlink support – pair Zigbee remote controls directly without a hub
• Network pairing – directly connects to universal Zigbee gateways
• Green Power support – works with up to 20 remote controls without a hub
• Zigbee2MQTT integration – easy connection with open-source platforms

Smart Functions

• Set and clear minimum and startup brightness levels
• Soft start – gentle light source handling
• Touchlink pairing with remote controls
• Power consumption monitoring via Zigbee hub
• OTA firmware updates via Zigbee network

Electrical Specifications

• Input/Output: 100–240 V AC
• Max. power: 200 W @ 230 V or 100 W @ 110 V
• Phase-cut dimmer
• Power monitoring
• Wiring: optional neutral wire

Other Features

• Compact dimensions: 42 × 38 × 16 mm – ideal for wall boxes
• Wiring: screw terminals for easy connection
• No daily maintenance required – minimal user intervention
