- Cable type: UTP (unshielded)
- Category Compliance: Category 6, up to 250 MHz
- Conductor type: BC (Pure copper)
- Conductor diameter: 0.53 ± 0.01 [mm]
- Core insulation: HDPE (High density polyethylene)
- Single wire resistance]: 13.9 [Ω] ± 3% / 305 [m]
- External insulation: PE (Polyethylene)
- Application: Internal and External
- Additional UV resistance: YES
- Earth cable with gel filling: NO
- Color: light gray
- Reaction to fire: Eca class
- Fluke Test: Yes - report available in attachments

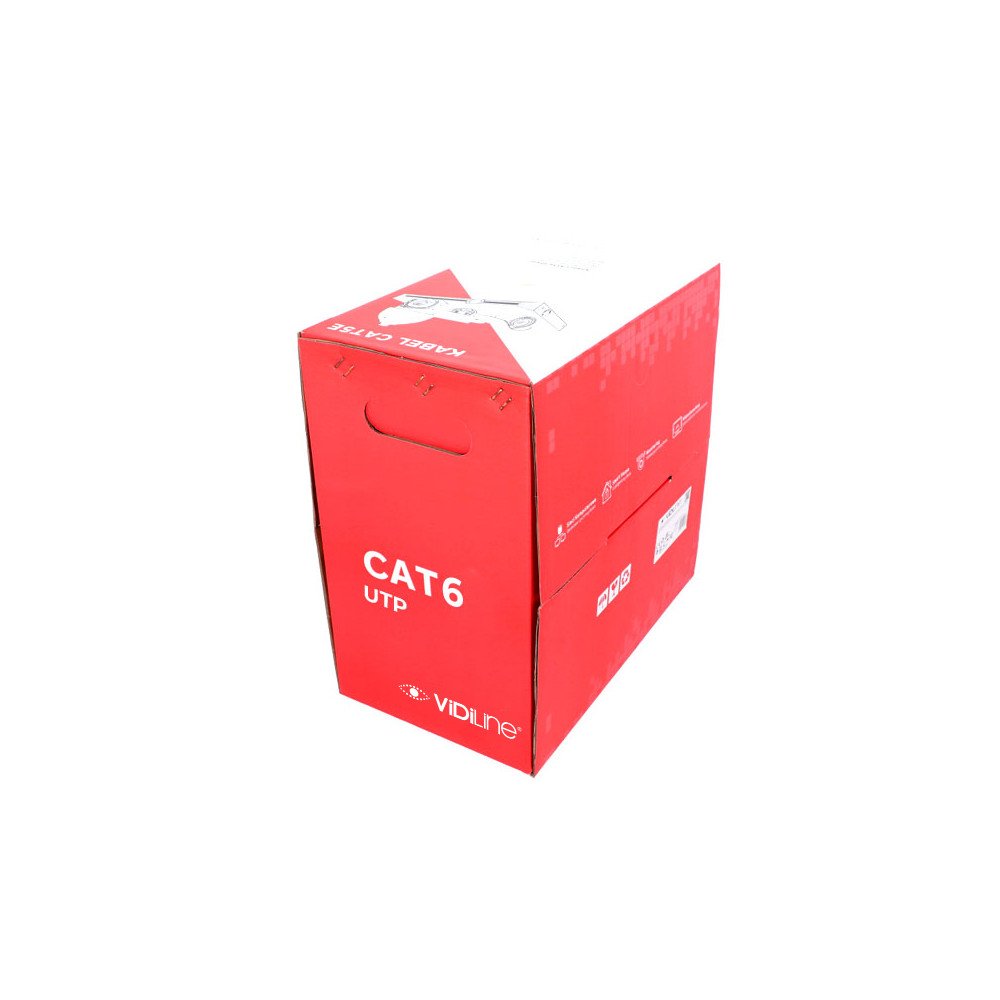

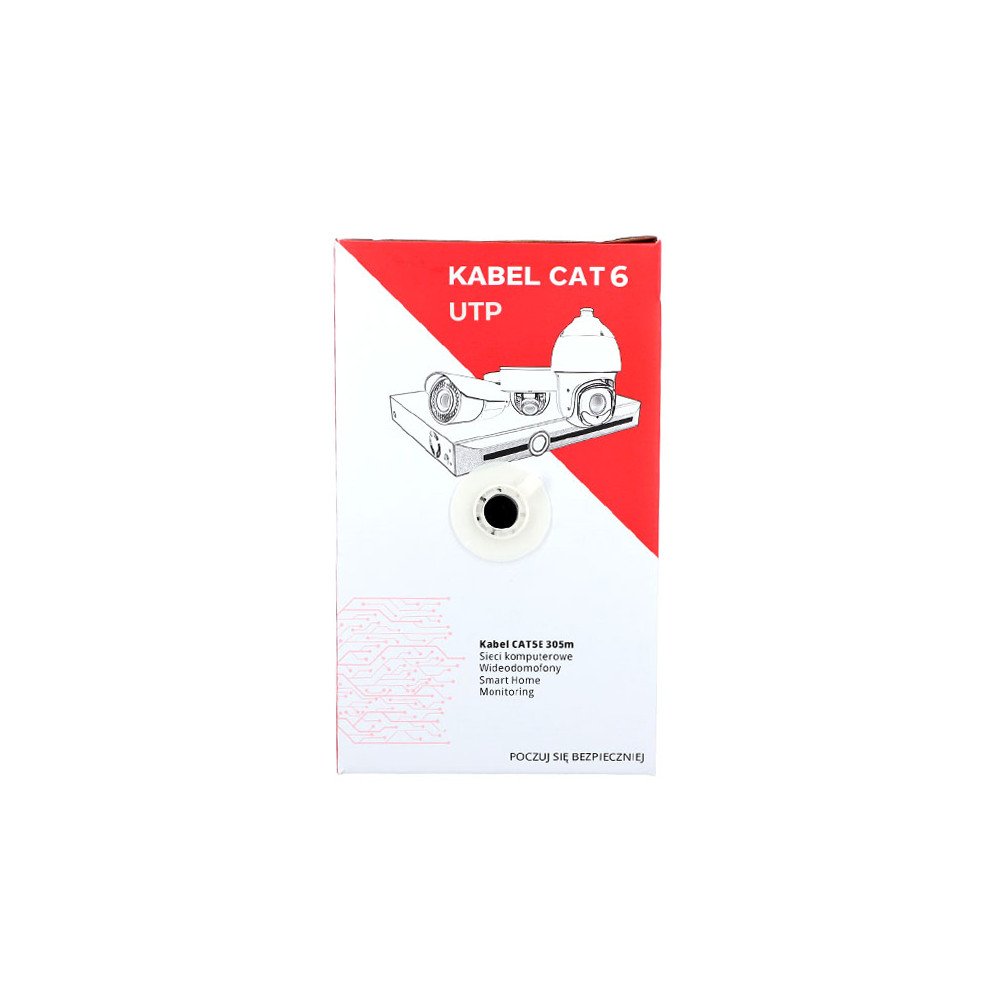

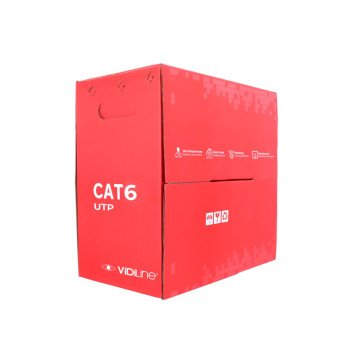

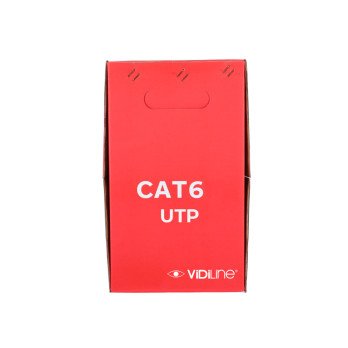

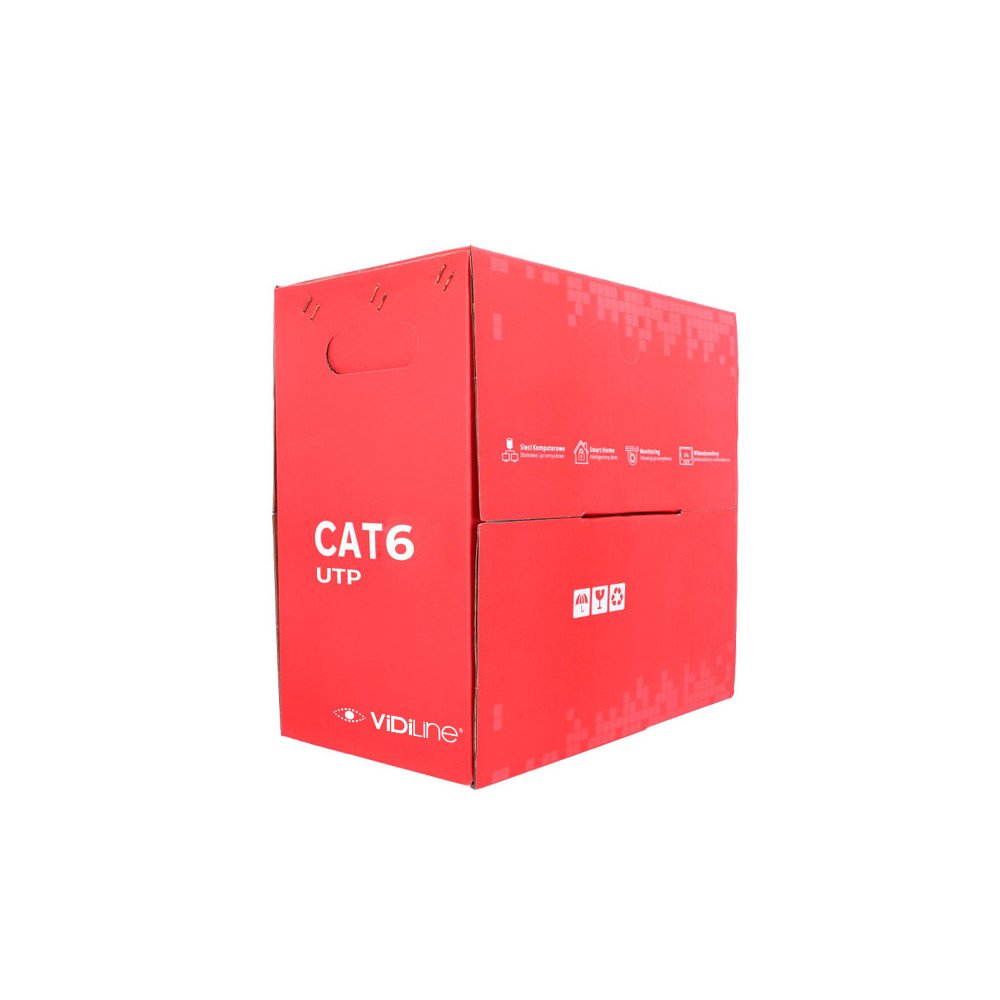

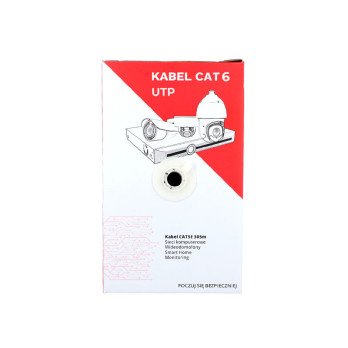

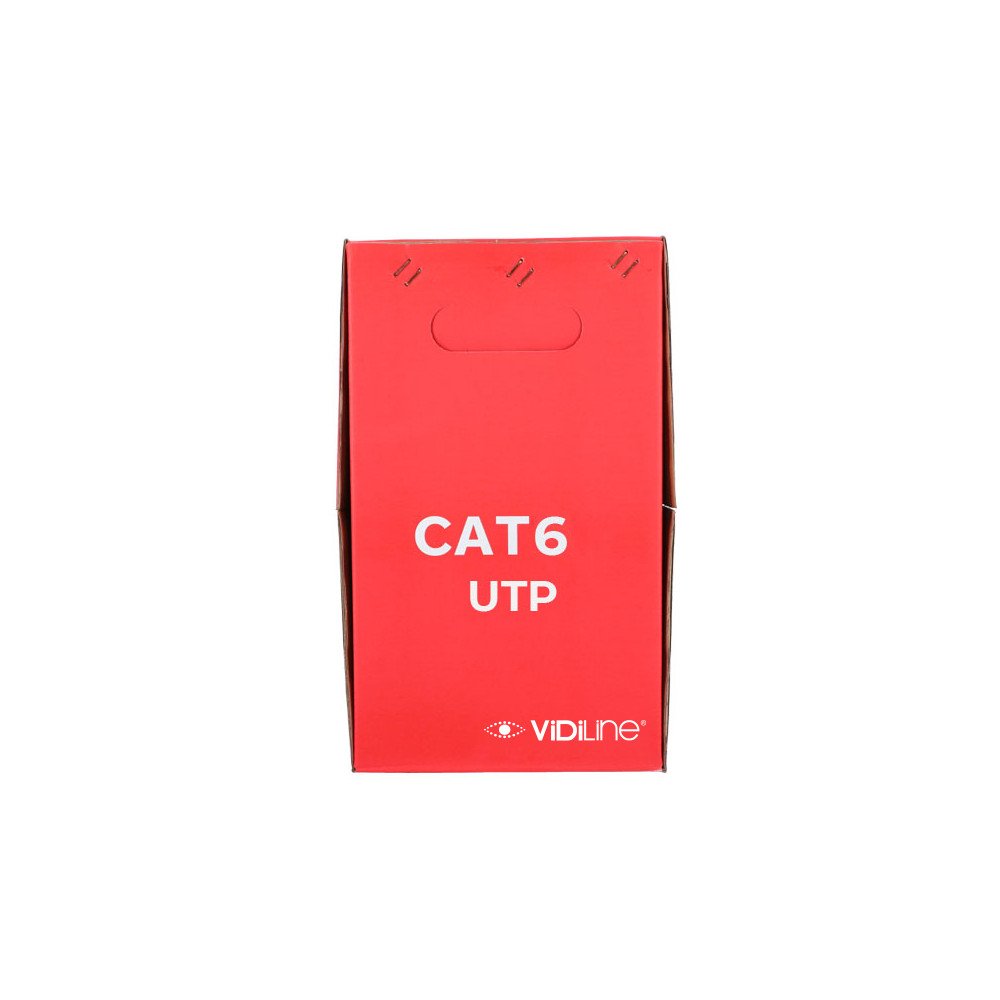

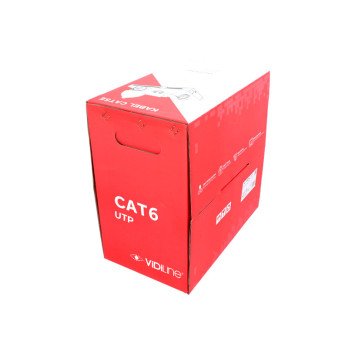

UTP CAT 6 twisted pair cable Cu wire - Premium CPR Eca Fluke test - 305m
€618.98
Tax included
- Cable type: UTP (unshielded)
- Category Compliance: Category 6, up to 250 MHz
- Conductor type: BC (Pure copper)
- Conductor diameter: 0.53 ± 0.01 [mm]
- Core insulation: HDPE (High density polyethylene)
- Single wire resistance]: 13.9 [Ω] ± 3% / 305 [m]
- External insulation: PE (Polyethylene)
- Application: Internal and External
- Additional UV resistance: YES
- Earth cable with gel filling: NO
- Color: light gray
- Reaction to fire: Eca class
- Fluke Test: Yes - report available in attachments
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Cable intended for telecommunications applications in buildings and other structures to limit the formation and spread of fire and smoke.
Standards and tests:
- EN50575:2014+A1:2016
- Cable compliant with the CPR directiveregarding the classification of construction products in terms of fire resistance and defining test methods for cables intended for installation in buildings.

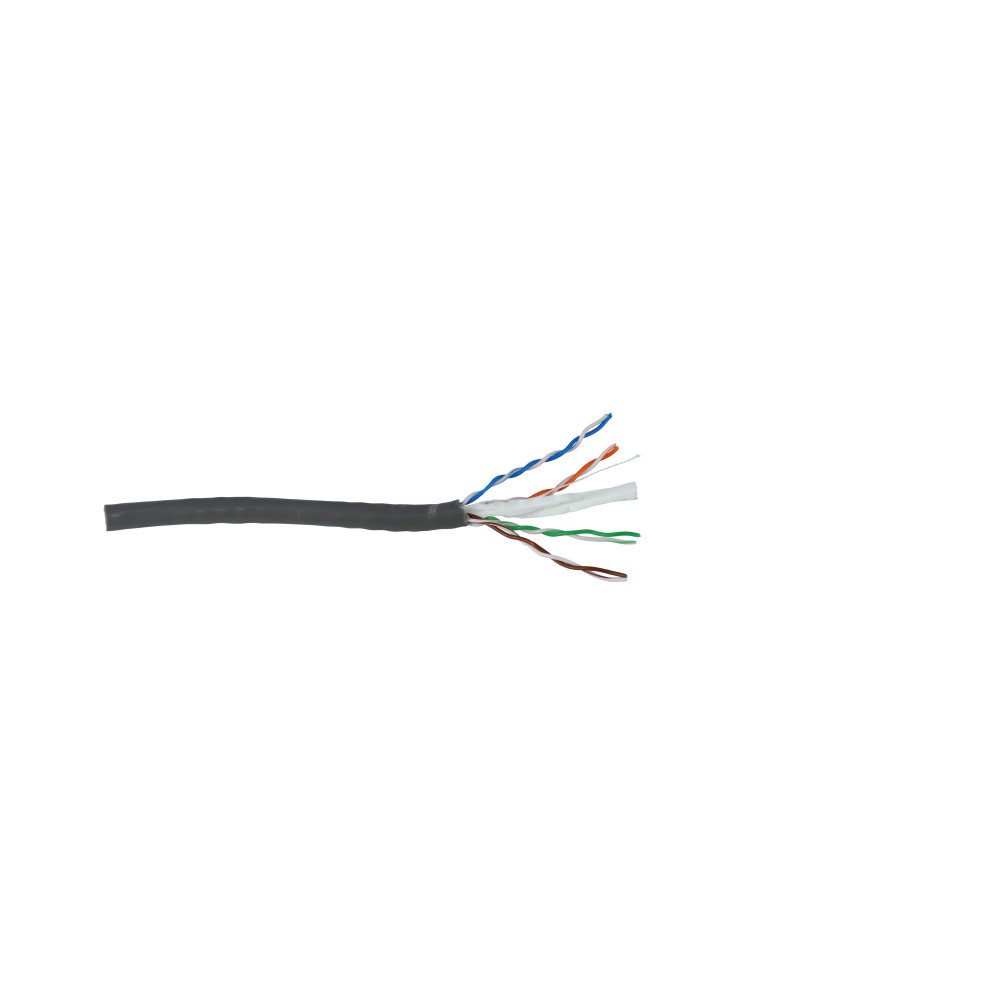

4 pairs of 0.53 mm BC wires
- 1 for:Blue / White and Blue
- 2 for:Orange / White and Orange
- 3 for:Green / White-Green
- 4 for:Brown / White-Brown
Technical parameters:
- Vein:BC 100% pure copper
- Vein diameter0.53 ± 0.01mm
- Single wire resistance 305m [Ω]:13,9 ± 3%
- Core insulation:HDPE – polyetylene
- Cable insulation:PE
- Reaction to fire:Eca class
- Color:light gray
- Fluke Test:Yes - the report is available in the attachments
