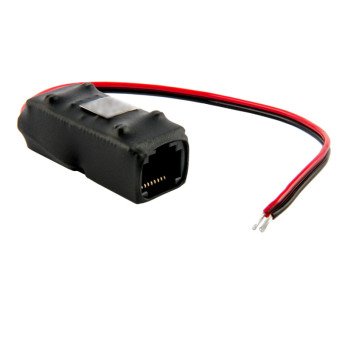

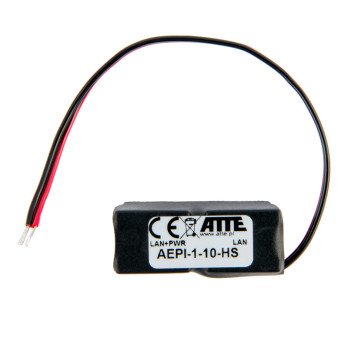

PoE PASSIVE adapter, 1 channel, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, RJ45/RJ45 connectors + cables, ATTE type AEPI-1-10-HS
Adapter PoE ATTE AEPI-1-10-HS
€37.96
Tax included
PoE PASSIVE adapter, 1 channel, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, RJ45/RJ45 connectors + cables, ATTE type AEPI-1-10-HS
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
PoE PASSIVE adapter, 1 channel, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, RJ45/RJ45 connectors + cables, type AEPI-1-10-HS
AEPI-1-10-HS is an adapter (injector) designed to power CCTV devices operating in the PoE 802.3at/af and PoE PASSIVE standards. PoE power is available on one of the RJ-45 connectors (connector illuminated by an LED). The second RJ-45 connector is used to connect to the LAN. TECHNICAL DATA:| Number of channels | 1 channel 10/100Mbps |
| Port functions | RJ-45 (1) with LED backlight: PoE OUT - for PoE 802.3at/af receiver and PASSIVE RJ-45 (2): LAN port without PoE power supply |
| Output voltage | Vout = Vin |
| Input voltage range | 10...48VDC |
| Signaling | LED in the RJ-45 connector - presence of PoE power supply |
| Operating temperature range | -10°C...+40°C |
| Case | Insulating polyethylene foil |
| Degree of protection of the housing | IP20 |
| Dimensions, weight | 17x45x15mm, 0,1kg |
