Type: Buffer Output voltage: 12...14V DC Output current: 3A Separate battery charging path 0.8A Maximum total power: 53W Input voltage: 190-240V AC

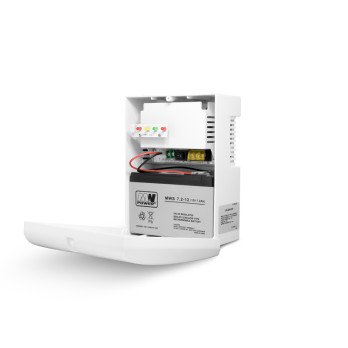

UPS emergency buffer power supply 13.8V 3.0A - 7Ah
€187.54
Tax included
Type: Buffer Output voltage: 12...14V DC Output current: 3A Separate battery charging path 0.8A Maximum total power: 53W Input voltage: 190-240V AC
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

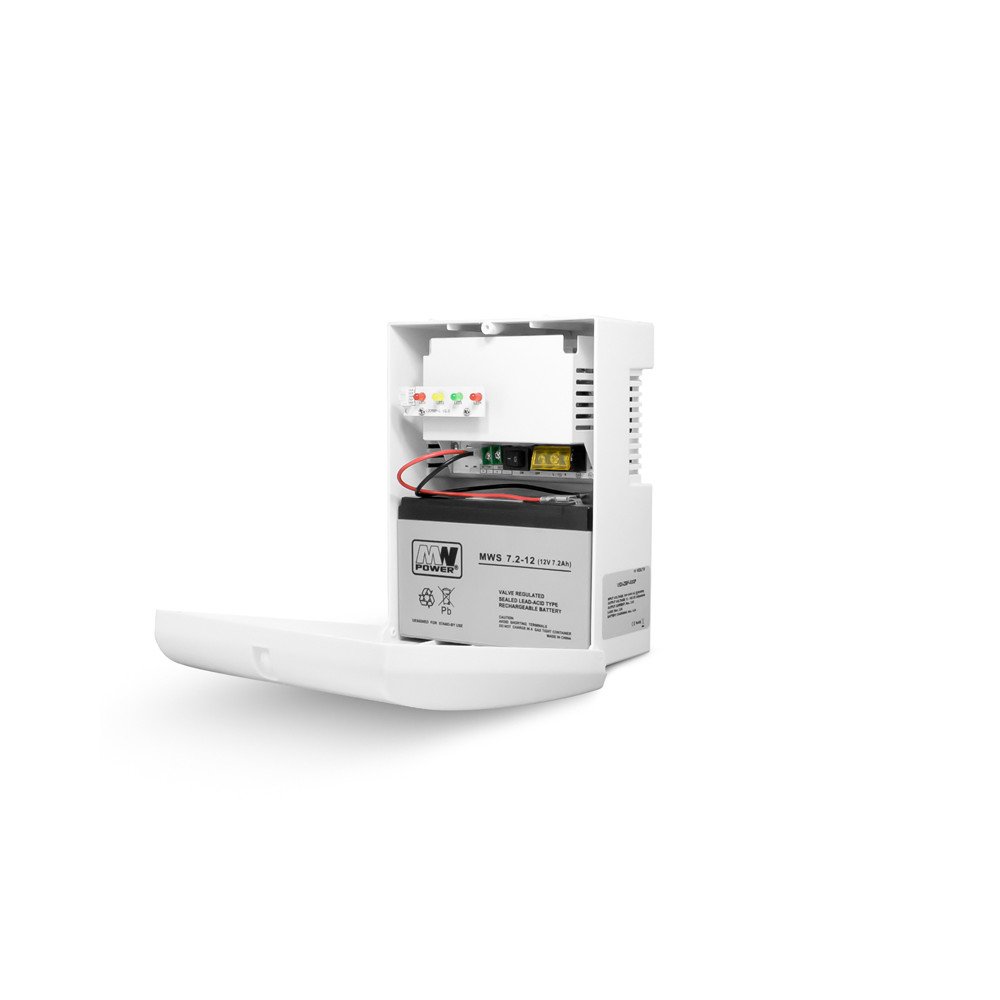

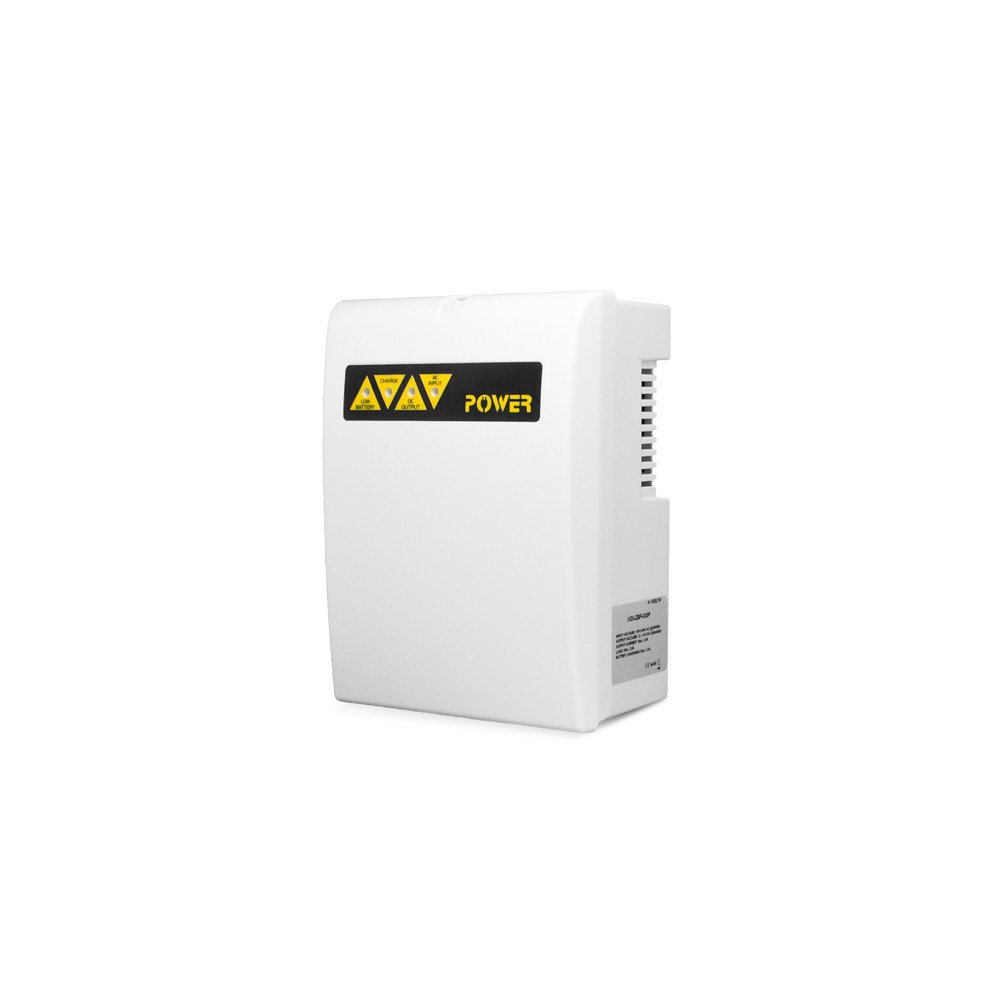

VIDI-ZBF-030P 3A buffer power supply with a separate 0.8A battery charging path. The device is characterized by very compact dimensions, but we can still fit a 7Ah or 7.2Ah battery inside. Smooth voltage regulation in the range of 12...14V. The power supply has lights indicating its operating status. The casing is made of plastic, equipped with ventilation holes and brackets for mounting on the wall.
| Input voltage: | 190-240V AC 50/60Hz |
| Output voltage when powered from the mains | 12...14V DC |
| Output voltage when powered by a battery | 10,0-12,5V DC |
| Total power: | 53W |
| Output current: | 3A |
| Battery charging current | 0,8A |

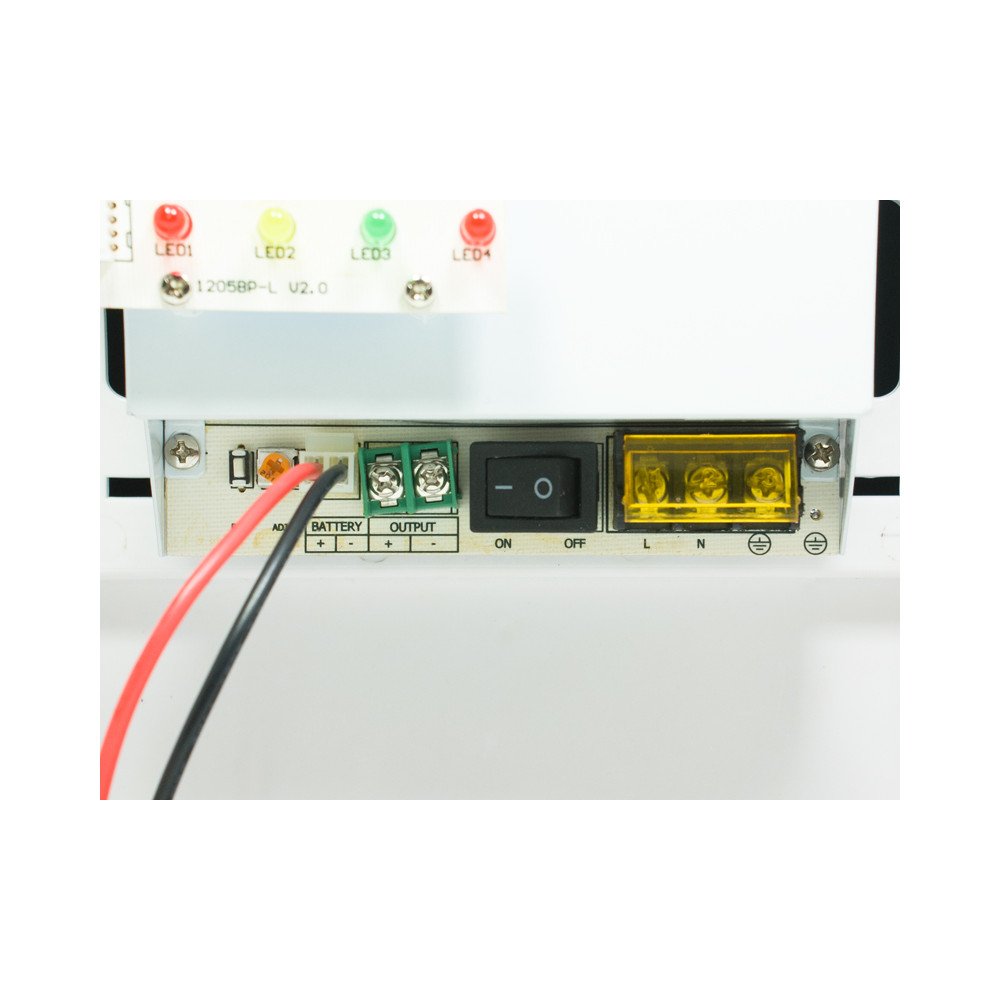

| Signal lights | AC input, DC output, Charging, Low battery |
| Security |
|
| Dimensions | 225mm (H) x 167mm (W) x 102mm (D) |
| Space for the battery | 7Ah or 7.2Ah - not included |
