Resolution:2560 x 1440;Sensor:1/3 ";View angle:92 °;Range of IR illumination:30 m;Image compression method:H.265;Alarm inputs / outputs:1 / 1;Memory card slot:Micro SD card support up to 256GB;Audio:Microphone built-in, Speaker built-in, Bi-directional audio streaming support;Main features:Wi-Fi Module - IEEE 802.11 b/g/n/ac/ax,;Power supply:PoE, 12 V DC;

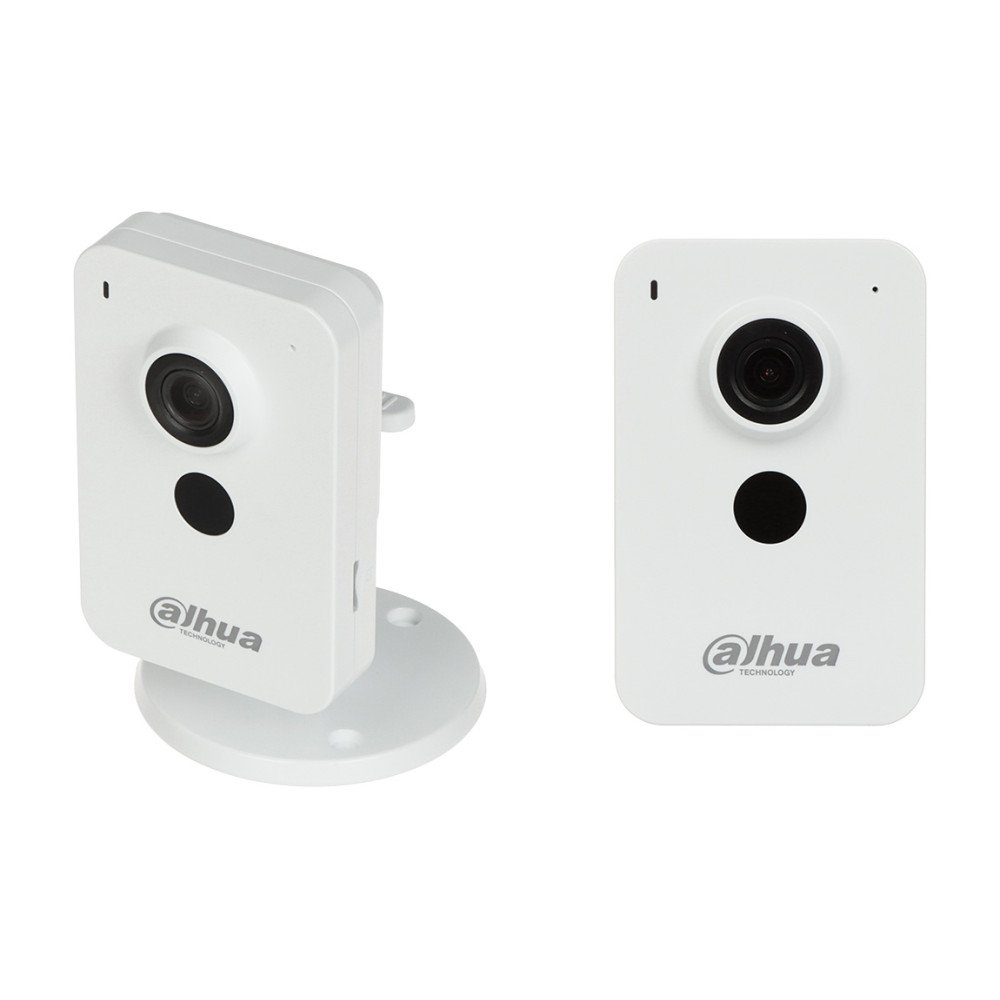

IP CAMERA C4K-P-0280B Cube K1 Wi-Fi - 3.7 Mpx 2.8 mm DAHUA
€118.75
Tax included
Resolution:2560 x 1440;Sensor:1/3 ";View angle:92 °;Range of IR illumination:30 m;Image compression method:H.265;Alarm inputs / outputs:1 / 1;Memory card slot:Micro SD card support up to 256GB;Audio:Microphone built-in, Speaker built-in, Bi-directional audio streaming support;Main features:Wi-Fi Module - IEEE 802.11 b/g/n/ac/ax,;Power supply:PoE, 12 V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | 2560 x 1440 - 3.7Mpx |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 92 ° |
| Optical zoom: | |
| Digital zoom: | |
| Range of IR illumination: | 30 m |
| White light LED illuminator range: | |
| Video output: | |
| Image compression method: | H.265/H.264 |
| Alarm inputs / outputs: | 1 / 1 |
| Main stream frame rate: | 25fps- 3.7Mpx |
| Memory card slot: | Micro SD card support up to 256GB |
| Interface: | Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n/ax, 10/100 Base-T (RJ-45) Fast pairing with Bluetooth |
| WEB Server: | |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Audio: | Microphone built-in,Speaker built-in,Audio detection,Bi-directional audio streaming support |
| Mobile phones support: | Port 37777Android:DMSSfree applicationiOS (iPhone):DMSSfree application |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Default IP address: | 192.168.1.108 |
| Web browser access ports: | |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent Image Analysis: | intrusion- classification of people and vehicles crossing the line (tripwire)- classification of people and vehicles |
| Main features: | Wi-Fi Module - IEEE 802.11 b/g/n/ac/ax,Image rotation and mirror WDR - Wide Dynamic Range Day/night mode ICR - Movable InfraRed filter Motion Detection - max. 4 zones |
| Power supply: | PoE,12 VDC/ 1 A |
| Power consumption: | ≤ 2.9 W @ 12 VDC ≤ 5.7 W @ |
| Housing: | Plastic |
| Color: | White |
| "Index of Protection": | IP66 |
| Operation temp: | -10 °C ... 45 °C |
| Weight: | 0.11 kg |
| Dimensions: | 64 x 100 x 34 mm (without bracket) |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
NS20631
5 Items
Data sheet
- APP
- Google home
- Protocol
- BLE
Bluetooth
Ethernet
GRE
HTTP
HTTPS
LIN
MOST
ONVIF
PoE
QUIC
RTSP
SDI
Wi-Fi - IP Class
- IP66
- Image compression method
- H.264
H.265
HEVC
