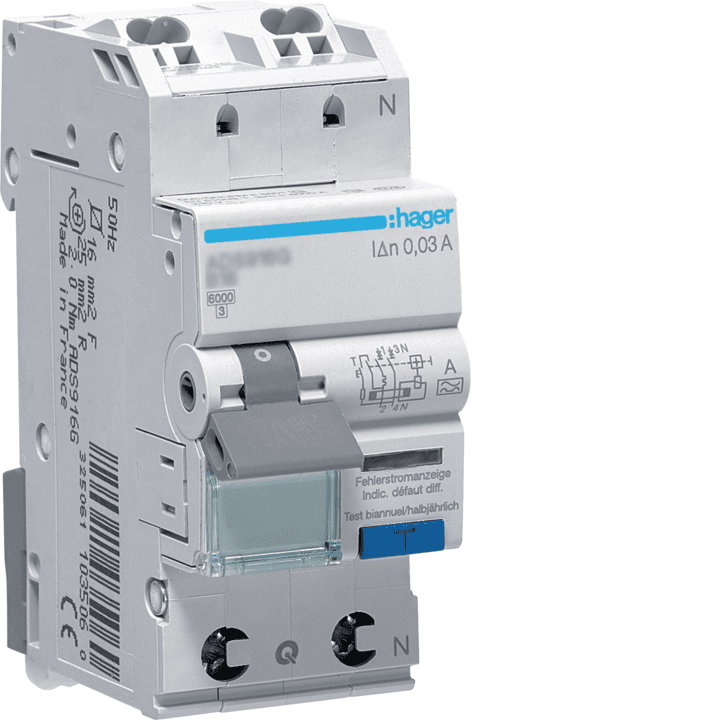

Hager ADS966D RCBO 1P+N 6kA C-16A 30mA A tipas

The Hager ADS966D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for 1P+N applications. It offers a rated current of 16A, a tripping curve C, and a breaking capacity of 6kA, ensuring reliable protection against overloads and short circuits. The integrated residual current protection is 30mA Type A, providing enhanced safety for personnel and equipment.

• 1P+N configuration for single-phase circuits
• C-16A trip curve for moderate inrush currents
• 6kA breaking capacity (Icn) for robust fault handling
• 30mA Type A residual current protection
• Compact 2-module width for space-saving installation on 35mm DIN rail
• Rated voltage 230V AC, frequency 50/60Hz

This RCBO is ideal for use in residential and commercial distribution boards where combined overcurrent and earth leakage protection is required. Easy to install with screw terminals.
