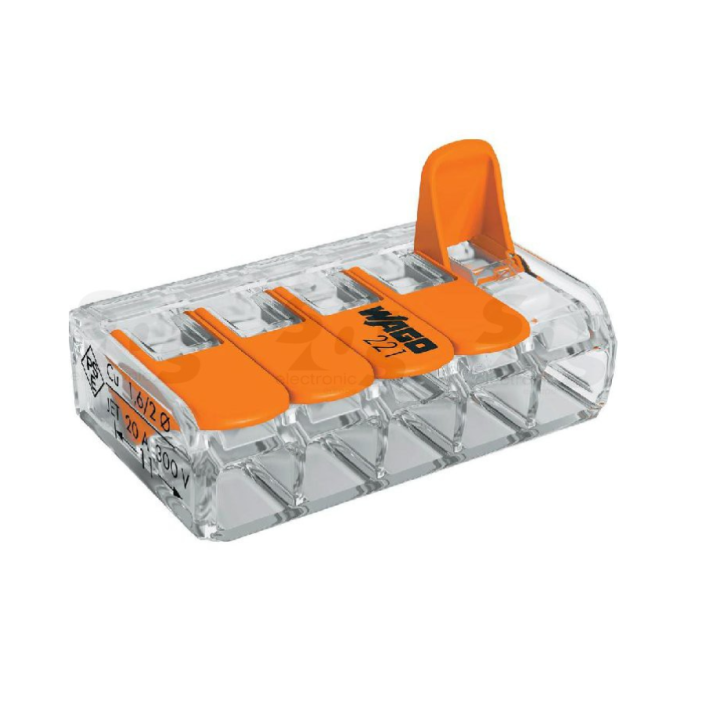

Коннектор Wago 221-415 на 5 клемм, 0.2-4 mm²

Коннектор Wago 221-415 на 5 клемм, 0.2-4 mm²

WAGO
0,74 €
С НДС
Transparent 5-terminal WAGO 221 connector for single and multi-core wires. 32A/450V rated, compact design, tool-free operation.
Доставка: 5 рабочих дней

WAGO 221 series 5-terminal connector for fast and tool-free wire connection. 40% smaller and more user-friendly than previous 222 series models. Transparent housing allows clear visibility of wire insertion and insulation. Accepts wire cross-sections from 0.2 to 4 mm² (24-12 AWG).

  • Rated for 32A at 450V, max 105°C operating temperature
  • Transparent polycarbonate housing for easy inspection
  • Ergonomic lever for quick, tool-free operation
  • ENEC and UL certified for worldwide use
  • Compact footprint, space-efficient installation

  • Бренд
  • Код
    ATO707
  • По наличию
    100 шт.
  • ean13
    4055143234658
  • MPN
    ATO707

  • Housing material
    thermoplastic
  • Nominal voltage
    450 V
  • Max operating temperature
    105 °C
  • Color
    Transparent
  • Nominal Current
    32 A
  • Terminals
    5
  • Wire cross-section (min)
    0.2 mm²
  • Wire cross-section (max)
    4 mm²
  • Suitable for single-core wire
    yes
  • Suitable for multi-core wire
    yes
