Shelly PRO 3EM-120A Профессиональный трехфазный счетчик электроэнергии нового поколения с контакторным управлением - Sonoff, Sma
Price:
212,09 €
С НДС
Monitor 3-phase energy with 1% accuracy. Shelly Pro 3EM 120A WiFi/Bluetooth meter for DIN rail. Smart home integration. Buy now!

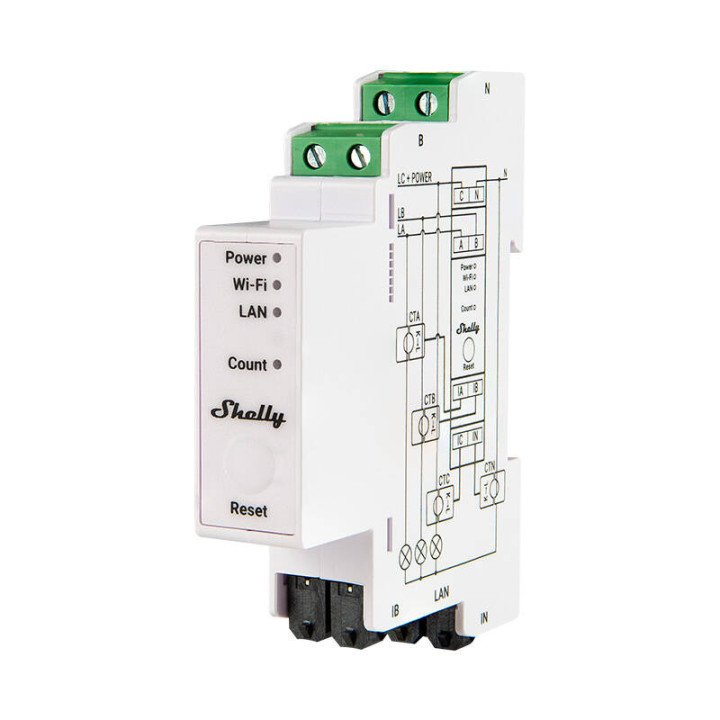

The Shelly Pro 3EM 120A (model SPEM-003CEBEU120) is a professional three-phase energy meter designed for DIN rail mounting. It provides accurate measurement of voltage, current, power, and energy for each phase with ±1% accuracy. The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 for local and remote monitoring via the Shelly app, MQTT, HTTP, or WebSocket. It stores up to 60 days of data with 1-minute resolution and offers advanced scripting capabilities.
- Three-phase energy metering with 1% accuracy for voltage, current, and power per phase
- 120A rated current via external current transformers (CTs included)
- Wi-Fi and Bluetooth connectivity for easy integration with smart home systems
- Data storage for 60 days with 1-minute resolution
- DIN rail mounting – compact 1-module design (94 x 19 x 69 mm)
- Compatible with Shelly app and third-party platforms via open protocols
Ideal for monitoring energy consumption in residential and commercial three-phase installations. Requires external CTs (120A).
-
Степень защитыIP20
-
App / EcosystemShelly
-
Dimensions94 x 19 x 69 ±0.5 mm
-
Communication protocolWi-Fi
-
Weight62 ±1 g
-
ФазыThree-phase
-
Energy meteringYes
-
Mounting typeDIN Rail
-
Housing materialplastic
-
Humidity30 to 70 % RH
-
Ambient temperature-20 to +40 °C
-
Bluetooth protocol4.2
-
CpuESP32-D0WDQ6
-
Flash memory16 MB
-
Rated voltage100-260 V
-
Accuracy±1%
-
Remote switchingYes
-
Maximum altitude2000 m
-
Номинальный ток120 A
-
БрендShelly
-
ModelSPEM-003CEBEU120
-
Артикул059208
-
Тип товараEnergy meter
-
EAN3800235268100
-
Тип устройстваEnergy meter
-
Max Measuring / Switching Current120 A
-
Smart / ConnectedYes
-
Built-in DisplayNo
-
DIN Module Width1 modules
-
Wi-Fi Protocol
