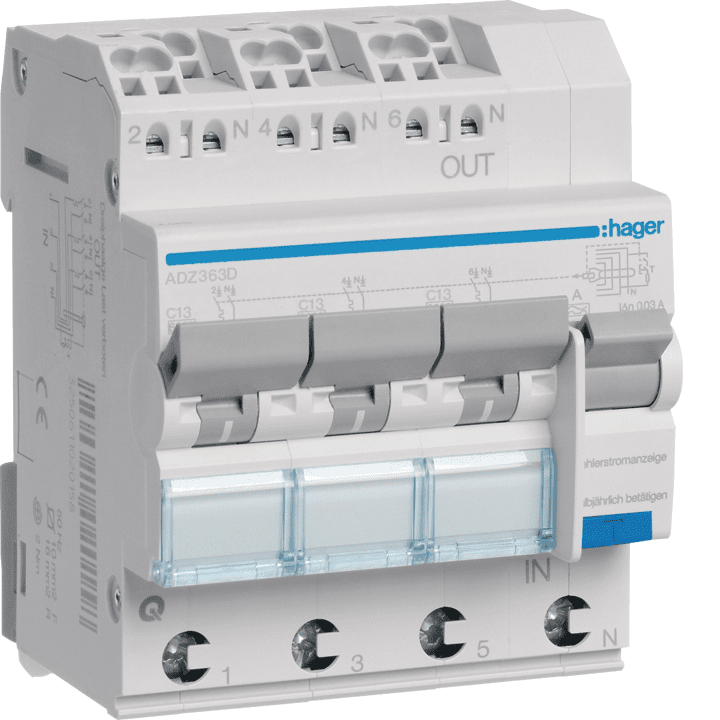

Автоматический выключатель Hager ADZ363D RCBO, 3X1P+N, 13A, C, 30mA, Type A, 6kA

Автоматический выключатель Hager ADZ363D RCBO, 3X1P+N, 13A, C, 30mA, Type A, 6kA

Hager
191,20 €
С НДС
The Hager ADZ363D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for 3-pole (3P+N) applications. It provides both overcurrent and earth leakage protection i
Доставка: 5 рабочих дней

The Hager ADZ363D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for 3-pole (3P+N) applications. It provides both overcurrent and earth leakage protection in a single compact unit, saving space in distribution boards.

  • Rated current: 13A (C-curve) for overcurrent protection
  • Residual current: 30mA Type A for AC and pulsating DC fault currents
  • Breaking capacity: 6kA (Icn) ensuring safe interruption of short circuits
  • Voltage: 230/400V AC, 50/60Hz
  • Mounting: DIN rail 35mm, 3 modules wide
  • Terminals: Combined screw and push-in for easy wiring

Ideal for residential and commercial electrical installations where combined protection is required. Complies with relevant standards.

  • Бренд
  • Код
    ADZ363D
  • По наличию
    800 шт.
  • ean13
    3250611020172
  • MPN
    ADZ363D

  • Rated current (A)
    13 A
  • Mounting type
    DIN rail 35mm
  • Число полюсов
    3
  • Trip curve
    C
  • Residual current ma
    30 mA
  • Rcd type
    A
  • Rated voltage v
    230/400V
  • Modules width
    3 module
  • Tripping class
    Instantaneous
  • Rated conditional short circuit a
    6000 A
  • Terminal type
    Combined
