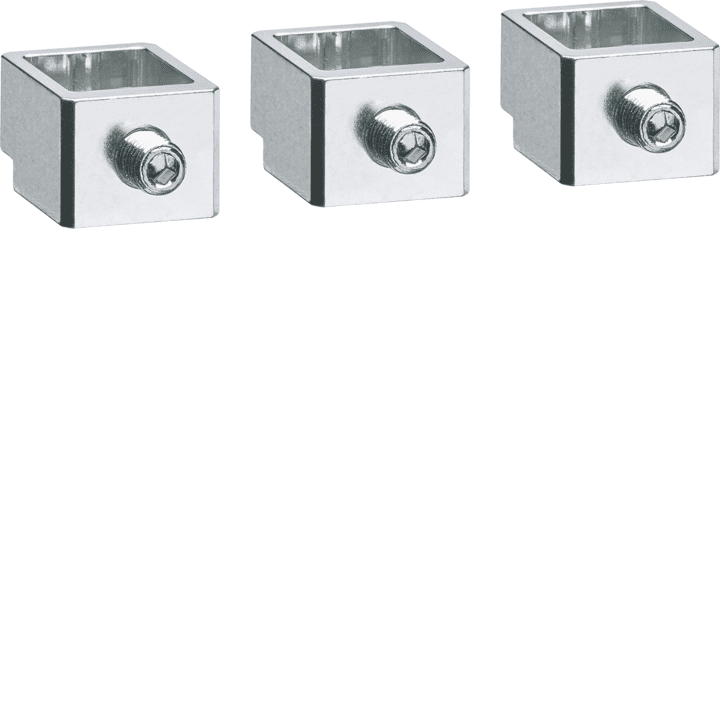

Hager HYT001H narvelio gnybtų paskirstymo blokas P250 Cu/Al 3P 10-150mm² Vaizdai
Hager HYT001H narvelio gnybtų paskirstymo blokas P250 Cu/Al 3P 10-150mm²
Kaina:
50,24 €
Su mokesčiais
Hager HYT001H 3-pole distribution block with cage clamp for Cu/Al conductors up to 150mm². Reliable and easy to install.
The Hager HYT001H is a 3-pole distribution block designed for use in electrical installations. It features a cage clamp connection type, suitable for copper and aluminum conductors with cross-sections from 10 to 150 mm². This terminal block is rated for P250 applications, ensuring reliable performance in power distribution systems.
- 3-pole configuration for three-phase distribution
- Cage clamp connection for secure and maintenance-free wiring
- Accepts Cu/Al conductors from 10 to 150 mm²
- Rated for P250 (250A) applications
- Compact design for easy installation in distribution boards
Ideal for use in commercial and industrial electrical panels, the Hager HYT001H provides a safe and efficient solution for distributing power to multiple circuits.
-
Prekės ženklas
-
KodasHYT001H
-
Yra sandėlyje800 Prekės
-
ean133250613155261
-
MPNHYT001H
-
Housing materialPolyamide (PA)
-
Connection typeCage clamp
-
Poles3P
-
Contact materialCopper
-
BrandHager
-
ModelHYT001H
-
SKUHYT001H
-
Product TypeDistribution block
-
EAN3250613155261
-
Conductor Cross-Section10-150 mm²
