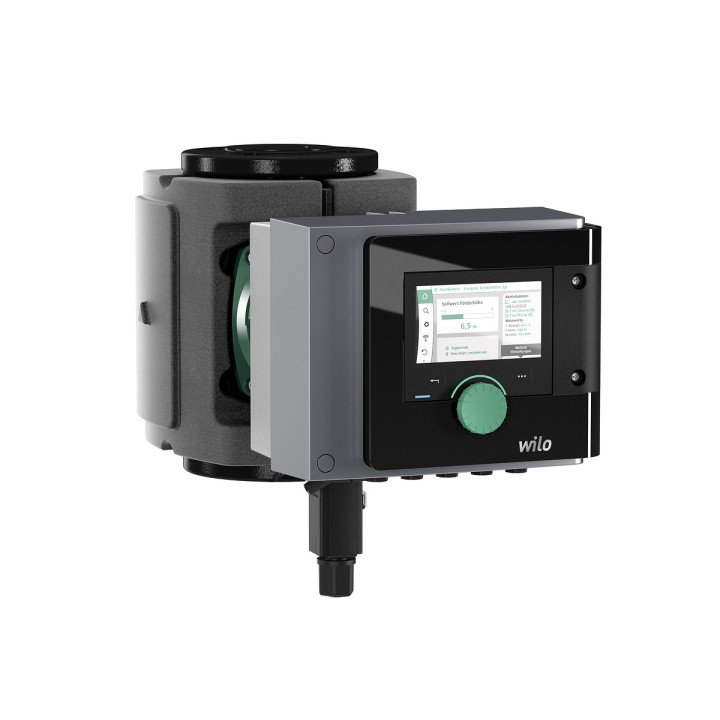

WILO Stratos Maxo 80/0.5-16 PN10 Circulation Pump CPC749

WILO Stratos Maxo 80/0.5-16 PN10 Circulation Pump CPC749

WILO
6 717,44 €
Su mokesčiais
High-capacity circulation pump with 42.54 m³/h nominal flow, 1.64 kW motor, and cast iron GG25 body. PN10 rated to 10 bar, EEI 0.17.
Pēc pasūtījuma

Wilo Stratos Maxo 80 is a high-performance circulation pump designed for large-scale heating and cooling systems. With its powerful 1.64 kW motor and robust cast iron body, it delivers reliable performance in demanding applications.

  • 42.54 m³/h nominal flow with 75.92 m³/h maximum
  • 1.64 kW motor with 7.14 A nominal current
  • 91.67 kPa maximum pressure with 15.98 m maximum head
  • Single-phase 50/60 Hz operation
  • Cast iron GG 25 pump body with PP-GF impeller
  • Energy Efficiency Index 0.17, PN10 rating

  • Prekės ženklas
  • Kodas
    CPC749
  • ean13
    4062679195476
  • MPN
    CPC749

  • Weight
    36.17 kg
  • Phases
    Single-phase
  • Frequency
    50/60 Hz
  • Nominal Current
    7.14 A
  • Nominal flow rate
    42.54 m³/h
  • Maximum flow rate
    75.92 m³/h
  • Maximum static head
    15.98 m
  • Pump body material
    Cast iron GG 25 (GJL-250)
  • Impeller material
    Polypropylene (PP-GF)
  • Maximum working pressure
    10 bar
  • Motor power input
    1.64 kW
  • Maximum Pressure at BEP
    91.67 kPa
  • Dual Pump
    No
  • Energy Efficiency Index
    0.17 EEI
