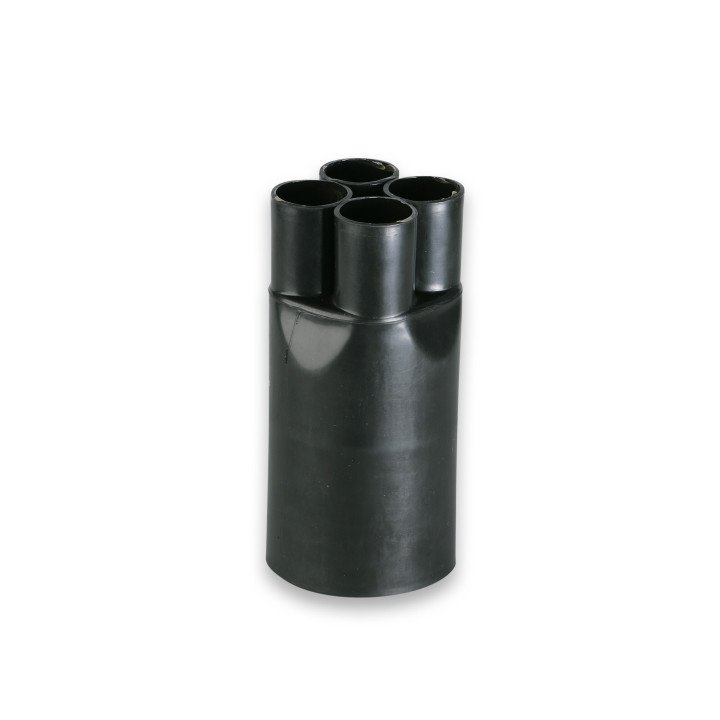

ENSTO SBO4.4 heat shrink end seal 4×95–300mm²

ENSTO SBO4.4 heat shrink end seal 4×95–300mm²

ENSTO
9,95 €
Su mokesčiais
Heat shrink end seal for 4-conductor power cables. Cross-section 95–300mm². Shrinks from 100mm to 33mm outer diameter.
Pēc pasūtījuma

ENSTO SBO4.4 heat shrink end seal for large cross-section power cables. Suitable for 4-conductor cables up to 300mm². Provides reliable termination and environmental protection after shrinking.

  • 4-conductor cable termination
  • Cross-section range: 95–300 mm²
  • Heat shrink type for easy installation
  • Pre-shrink outer diameter: 100 mm
  • Post-shrink outer diameter: 33 mm
  • Total length after shrinking: 215 mm
  • Inner diameter: 35 mm → 14 mm

  • Prekės ženklas
  • Kodas
    AFF794
  • ean13
    6418677442964
  • MPN
    AFF794

  • Type
    Heat shrink
  • Model
    4-conductor cables
  • Nominal cross-section
    95-300 mm²
  • Outer diameter before shrinking
    100 mm
  • Outer diameter after shrinking
    33 mm
  • Total length after shrinking
    215 mm
  • Inner diameter before shrinking
    35 mm
  • Inner diameter after shrinking
    14 mm
