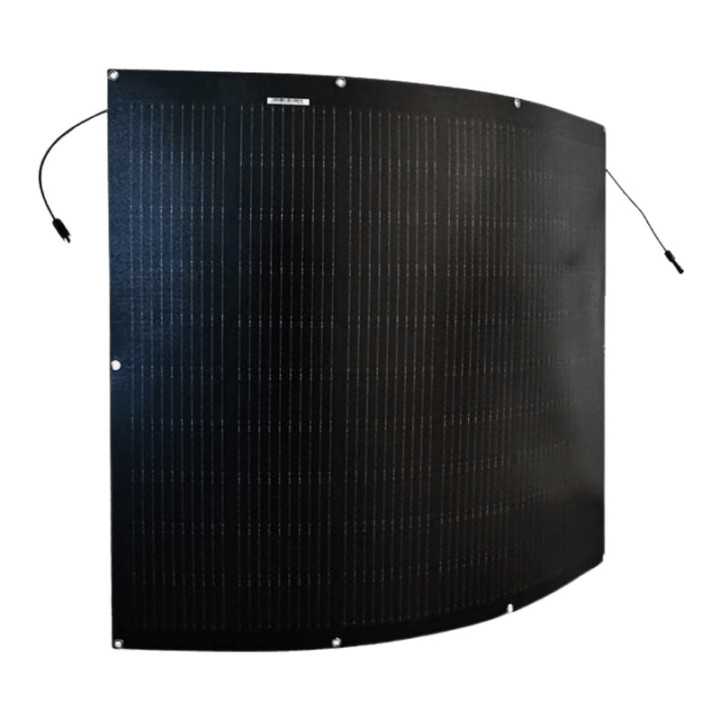

Sunman fotovoltinė plokštė SMF200J 200W lanksti.
Kaina:
168,81 €
Su mokesčiais
The Sunman SMF200J-6X10DB-e is a 200W flexible photovoltaic panel featuring innovative eArc technology. Weighing just 2.6 kg and only 2 mm thick, it is 70% lighter and 95% thinner than traditional gla
The Sunman SMF200J-6X10DB-e is a 200W flexible photovoltaic panel featuring innovative eArc technology. Weighing just 2.6 kg and only 2 mm thick, it is 70% lighter and 95% thinner than traditional glass panels, making it perfect for mobile and space-constrained applications.
- Ultra-lightweight & flexible: Easy to transport and install on curved surfaces (min. bending radius 0.5 m).
- Frameless design: Can be glued directly onto surfaces without drilling or heavy mounting frames.
- Durable & weatherproof: IP68 rated, resistant to dust and water, and meets IEC 61215/61730 standards.
- High performance: 60 monocrystalline half-cells deliver 200W with 16.9% efficiency.
- Easy integration: Comes with MC4-compatible connectors and 450 mm cables.
Ideal for RVs, boats, balconies, and roofs with limited load capacity. The black back layer ensures a sleek, aesthetic appearance.
-
Weight kg2.6 kg
-
Module efficiency16.9 %
-
Module dimensions1159 x 1026 x 2 mm
-
Operating temperature range-40 to 85 °C
-
Number of cells60 (6 x 10)
-
FrameNone (frameless panel)
-
Maximum system voltage1500 V DC
-
Open circuit voltage41.6 V
-
Cell technologyMonocrystalline (182 mm, half-cell)
-
Short circuit current6.37 A
-
Maximum power voltage34.2 V
-
Maximum power current6.10 A
-
Application classA
-
Back layer colorBlack
-
Output cablePV 4.0 mm², (+)450 mm / (-)450 mm
