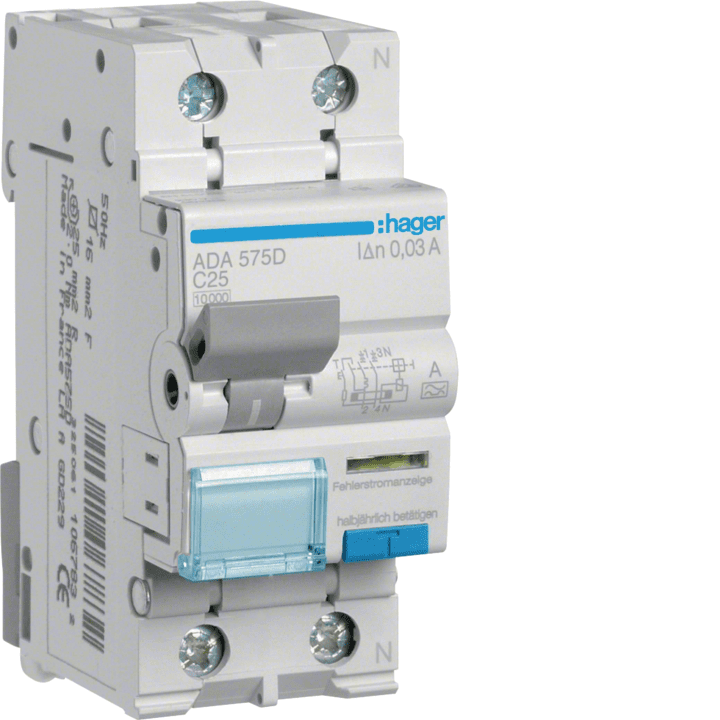

Hager ADA575D RCBO 1P+N 10kA C-25A 30mA A tipas

Hager ADA575D RCBO 1P+N 10kA C-25A 30mA A tipas

Hager
99,79 €
Su mokesčiais
Hager ADA575D RCBO: 1P+N, 10kA breaking capacity, C-25A, 30mA Type A RCD. Compact 2-module design for reliable protection.
Piegāde: 5 darba dienas

The Hager ADA575D is a combined residual current circuit breaker with overcurrent protection (RCBO) in a compact 2-module width. It provides both overcurrent and earth leakage protection in a single device, saving space in distribution boards.

  • 1P+N configuration with 10kA breaking capacity
  • C-curve trip characteristic for 25A rated current
  • 30mA Type A residual current protection for AC and pulsating DC fault currents
  • Rated voltage 230V AC, frequency 50/60 Hz
  • Designed for 35mm DIN rail mounting, occupies 2 modules

Ideal for residential and commercial electrical installations where combined protection and space efficiency are required. Ensure compatibility with your distribution board before installation.

  • Prekės ženklas
  • Kodas
    ADA575D
  • Yra sandėlyje
    800 Prekės
  • ean13
    3250611067856
  • MPN
    ADA575D

  • Mounting
    DIN rail 35mm
  • Poles
    1P+N
  • Trip curve
  • Rcd type
    A
  • Brand
    Hager
  • SKU
    ADA575D
  • Product Type
    RCBO (combined RCD/MCB)
  • EAN
    3250611067856
  • Model / Reference
    ADA575D
  • Breaking Capacity (Icn)
    10 kA
  • Rated Current (In)
    25 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
