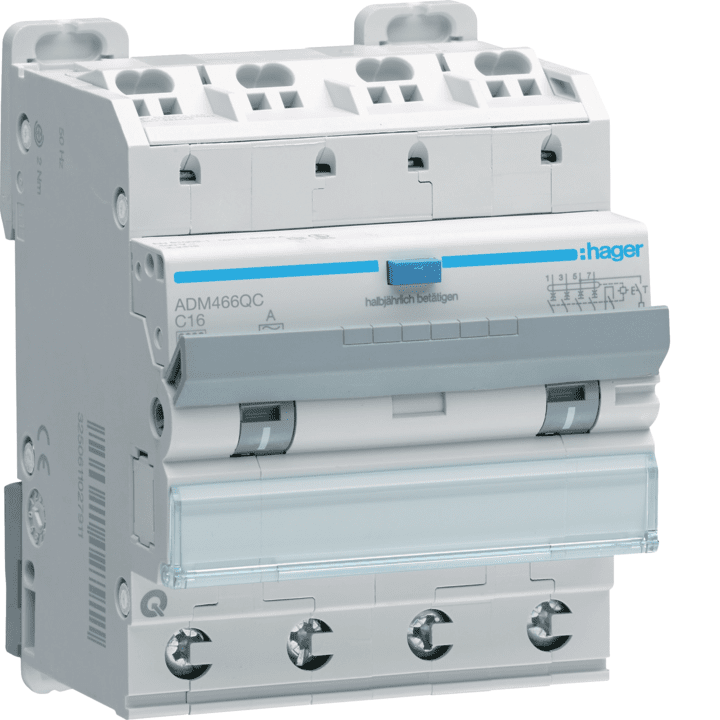

Hager ADM466QC RCBO 4P 6kA C-16A 30mA A tipas Vaizdai
Hager ADM466QC RCBO 4P 6kA C-16A 30mA A tipas
Kaina:
182,76 €
Su mokesčiais
Hager ADM466QC RCBO 4-pole, 16A, C-curve, 30mA Type A, 6kA breaking capacity. Reliable protection for electrical circuits.
The Hager ADM466QC is a high-quality RCBO (Residual Current Circuit Breaker with Overcurrent Protection) designed for reliable protection of electrical circuits. This 4-pole device combines overcurrent and residual current protection in a single unit, saving space in distribution boards.
- Rated current: 16A with C trip curve for general-purpose protection
- Residual current: 30mA Type A, sensitive to pulsating DC and AC residual currents
- Breaking capacity: 6kA (Icn) ensuring safety under fault conditions
- Mounting: Standard 35mm DIN rail installation
- Frequency: 50/60 Hz, suitable for most residential and commercial applications
Ideal for use in distribution boards where combined protection and space efficiency are required. The ADM466QC is part of Hager's QC/QB series, known for reliability and ease of installation.
-
Prekės ženklas
-
KodasADM466QC
-
Yra sandėlyje800 Prekės
-
ean133250611027997
-
MPNADM466QC
-
MountingDIN rail 35mm
-
Poles4P
-
Trip curve
-
Rcd typeA
-
BrandHager
-
SKUADM466QC
-
Product TypeRCBO (Residual Current Circuit Breaker with Overcurrent Protection)
-
EAN3250611027997
-
Model / ReferenceADM466QC
-
Breaking Capacity (Icn)6 kA
-
Rated Current (In)16 A
-
Residual Current (IΔn)30 mA
-
Rated Voltage (Ue)230/400V V
-
Rated Frequency50/60 Hz
-
Tripping / Time Delay ClassInstantaneous
