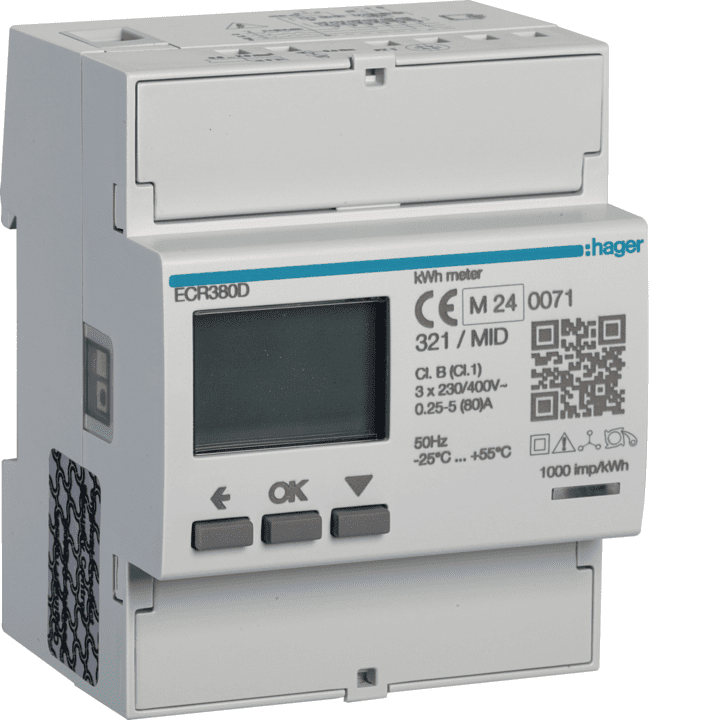

Hager ECR380D 3 fazių kWh skaitiklis Tiesioginis 80A 4M Modbus MID Vaizdai
Hager ECR380D 3 fazių kWh skaitiklis Tiesioginis 80A 4M Modbus MID
Kaina:
271,20 €
Su mokesčiais
Buy Hager ECR380D 3-phase direct kWh meter, 80A, Modbus, MID certified, 4 modules. Accurate energy monitoring for commercial use.
The Hager ECR380D is a three-phase direct kWh meter designed for accurate energy measurement in commercial and industrial installations. With a maximum measuring current of 80A and Modbus communication, it integrates seamlessly into building management systems.
- 3-phase direct connection – up to 80A per phase
- Modbus protocol for remote monitoring and data logging
- MID certified – suitable for billing purposes
- Compact 4-module DIN rail mounting for easy installation in distribution boards
- Three measurement channels for comprehensive energy tracking
Ideal for submetering, cost allocation, and energy efficiency projects. The Hager ECR380D delivers reliable, precise data for your power management needs.
-
Prekės ženklas
-
KodasECR380D
-
Yra sandėlyje800 Prekės
-
ean133250612231478
-
MPNECR380D
-
Communication protocolModbus
-
Phases3-phase
-
MountingDIN Rail
-
Connection typeDirect
-
Measurement channels3
-
Operating voltage230/400V
-
Din modules width4M module
-
BrandHager
-
ModelECR380D
-
SKUECR380D
-
Product TypeEnergy meter
-
EAN3250612231478
-
Max Measuring Current80 A
-
MID CertifiedYes
