Hager ADZ366D RCBO 3X1P+N 6kA C-16A 30mA A tipas

Hager ADZ366D RCBO 3X1P+N 6kA C-16A 30mA A tipas

Hager
171,46 €
Su mokesčiais
Hager ADZ366D RCBO: 3P+N, 6kA breaking capacity, C-16A, 30mA Type A residual current. Reliable protection for electrical circuits.
Piegāde: 5 darba dienas

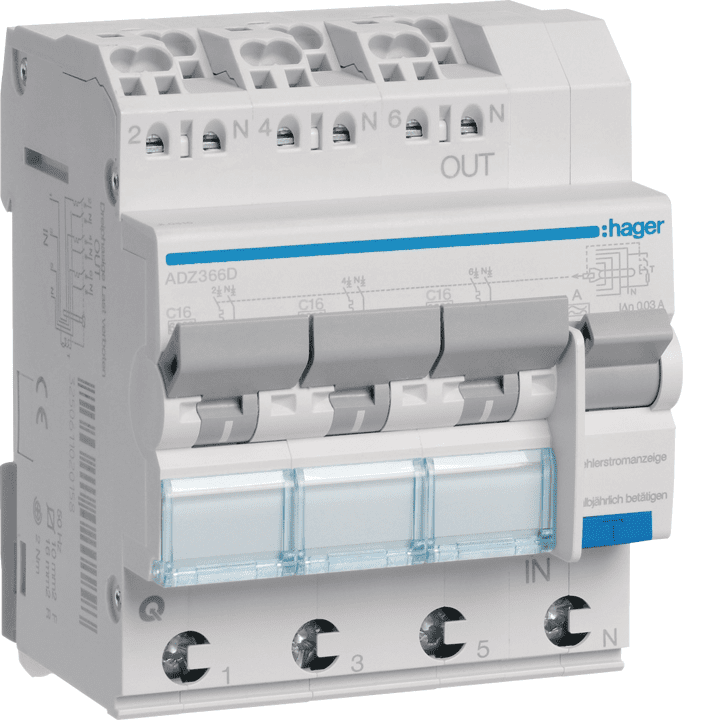

The Hager ADZ366D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for 3P+N systems. It provides both overcurrent and earth leakage protection in a single device, saving space in distribution boards.

  • Rated current: 16A (C-curve)
  • Breaking capacity: 6kA
  • Residual current: 30mA, Type A (sensitive to pulsating DC)
  • Poles: 3P+N
  • Voltage: 230/400V AC, 50/60Hz
  • Mounting: DIN rail 35mm, 4 modules wide
  • Terminals: Screw type

Ideal for residential and commercial installations where combined protection is required. Complies with relevant standards.

  • Prekės ženklas
  • Kodas
    ADZ366D
  • Yra sandėlyje
    800 Prekės
  • ean13
    3250611020189
  • MPN
    ADZ366D

  • IP rating
    IP20
  • Mounting
    DIN rail 35mm
  • Poles
    3P+N
  • Trip curve
  • Rcd type
    A
  • Terminal type
    Screw
  • Brand
    Hager
  • SKU
    ADZ366D
  • Product Type
    RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
  • EAN
    3250611020189
  • Model / Reference
    ADZ366D
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    16 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230/400V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    4 module
