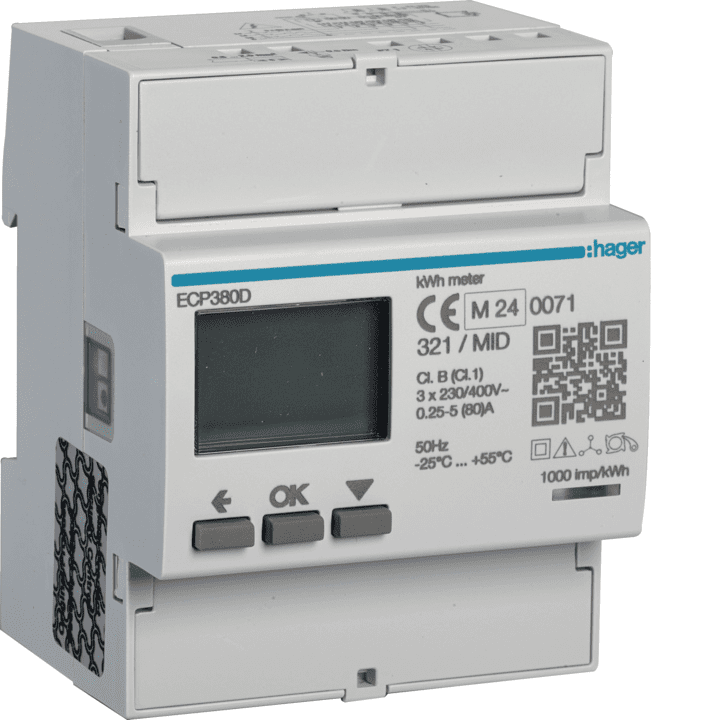

Hager ECP380D 3 fazių kWh skaitiklis Tiesioginis 80A 4M S0 MID
Kaina:
230,34 €
Su mokesčiais
Buy Hager ECP380D 3-phase direct kWh meter, 80A, 4 modules, MID certified. Accurate energy metering for commercial use.
The Hager ECP380D is a 3-phase direct-connected kWh meter designed for accurate energy measurement in commercial and industrial applications. With a rated current of 80A and a compact 4-module DIN rail housing, it fits neatly into distribution boards. The meter is MID certified for billing purposes and features an S0 pulse output for remote reading.
- 3-phase direct measurement up to 80A
- MID certified for sub-billing and energy monitoring
- Compact 4-module DIN rail design
- S0 pulse output for integration with energy management systems
- Clear LCD display for easy reading
Ideal for monitoring energy consumption in shops, offices, and small factories. Easy to install and configure.
-
Communication protocolnone
-
Phases3-phase
-
MountingDIN Rail
-
Connection typeDirect
-
Measurement channels3
-
Operating voltage230/400V
-
Din modules width4M module
-
BrandHager
-
ModelECP380D
-
SKUECP380D
-
Product TypeEnergy meter
-
EAN3250612231416
-
Max Measuring Current80 A
-
Bidirectional MeteringNo
-
MID CertifiedYes
