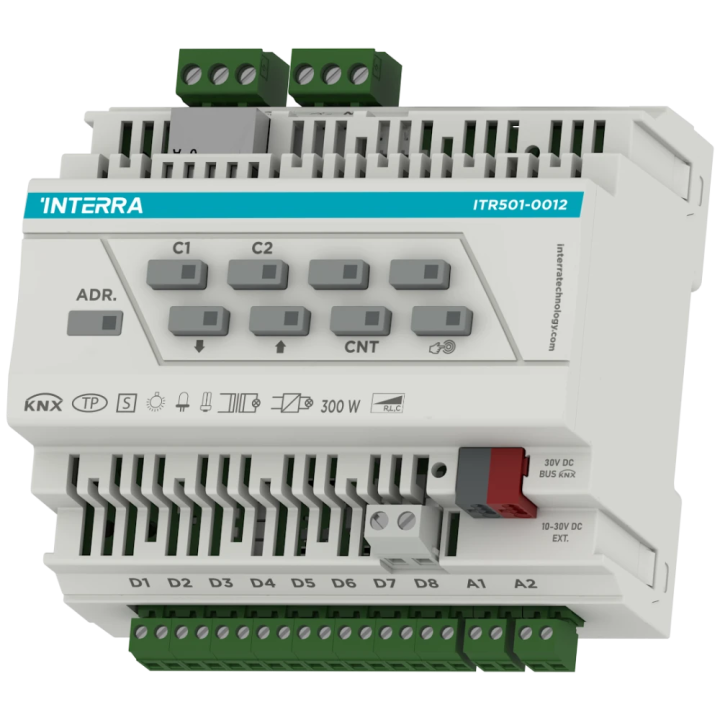

Interra ITS501-0012 KNX universali reguliatoriaus pavara – 2 kanalai, 8 skaitmeniniai / 2 analoginiai įėjimai

This 2-channel universal dimming actuator with inputs generates up to 300W of output per channel and can drive resistive, inductive and capacitive loads, including incandescent, low- and high-voltage halogen lamps as well as dimmable LED retrofit and compact fluorescent lamps. Automatic load recognition based on ETS configuration removes the guesswork from commissioning.

Built-in temperature and short-circuit protection, channel status LEDs and load-presence/type detection keep the actuator safe and easy to diagnose, and it can be programmed without a 230V supply. What sets this version apart is its 8 digital and 2 analog inputs: the digital inputs can trigger channel control or send telegrams directly to the KNX bus, while the analog inputs work with resistive sensors such as NTC or LDR for temperature or light-based automation.

• 2 channels, up to 300W output per channel
• Drives resistive, inductive and capacitive (R, L, C) loads
• 8 digital inputs for channel control or KNX telegrams
• 2 analog inputs compatible with NTC/LDR resistive sensors
• Automatic load recognition via ETS
• 5-zone dim curve with adjustable dimming speed per zone
• 3-phase operation with separate neutral per channel
