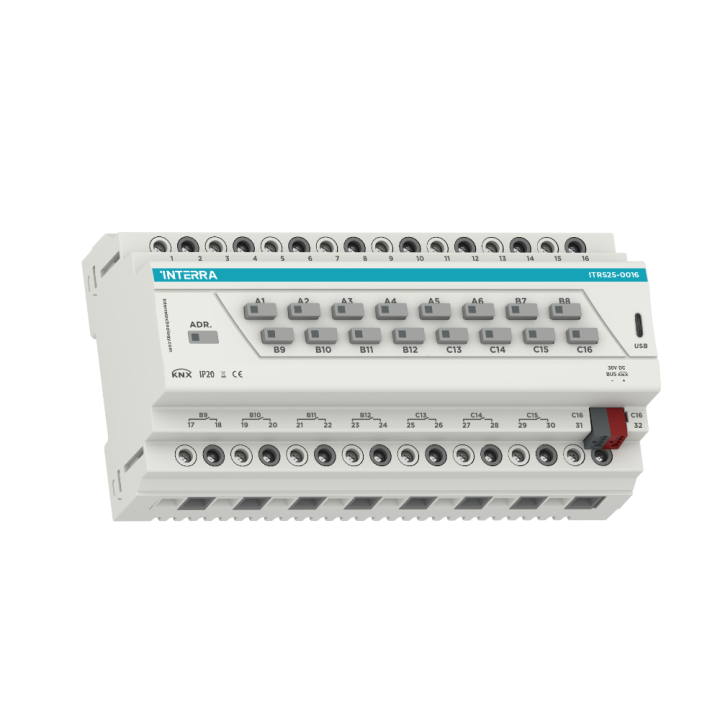

Interra ITR525-0016 16 kanalų KNX Combo Plus

The Interra ITR525-0016 16 Channel Combo Plus is a versatile KNX actuator designed to cover every automation requirement in a smart building, expanding your system with lighting, heating, shutter/blind and fan coil control across 16 outputs. Communicating over the KNX bus, it exchanges data with KNX sensors and integrates with the building management system for residential and hotel projects.

Every output can be configured for lighting or heating control, two consecutive outputs can be combined for shutter/blind operation, and groups of outputs support 2-pipe or 4-pipe fan coil configurations. Manual push-buttons allow direct control if KNX bus communication fails, and the module is powered entirely from the bus, with all configuration performed via ETS.

• 16 channels for lighting and heating control
• Shutter/blind control using 2 combined outputs
• 2-pipe and 4-pipe fan coil configurations
• Manual control buttons for local operation during bus failure
• Powered directly from the KNX bus
• Full configuration via ETS software
• Last-state memory after power failure
