Hager SPA080 Combined SPD Type 1+2 4P 25kA TT/TNS

Hager SPA080 Combined SPD Type 1+2 4P 25kA TT/TNS

Hager
403,79 €
Su mokesčiais
Protect your electrical installation with Hager SPA080 combined Type 1+2 SPD. 4 poles, 25kA, for TT/TN-S systems. Order now for reliable surge protection.
Piegāde: 5 darba dienas

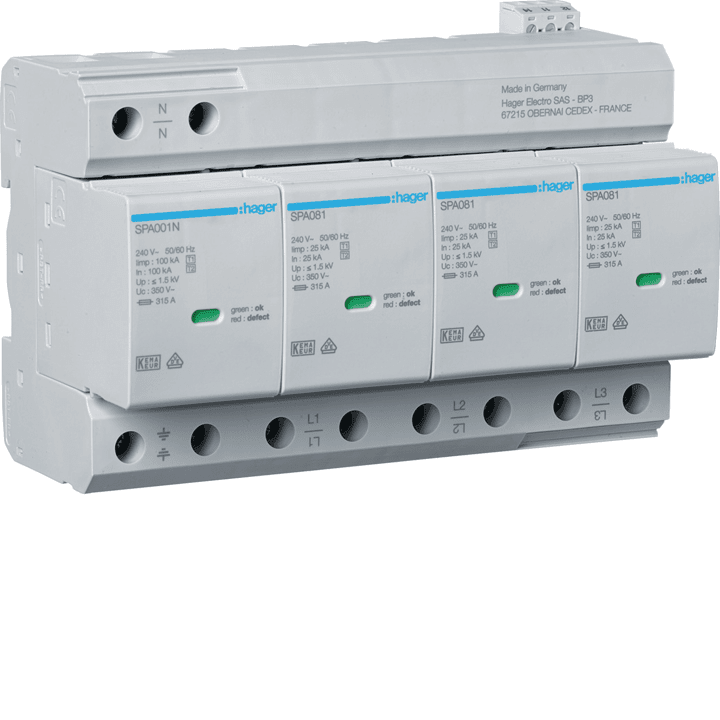

The Hager SPA080 is a combined Type 1+2 surge protective device (SPD) designed for AC mains in TT and TN-S earthing systems. With 4 poles and a maximum discharge current of 25kA (8/20µs), it provides robust protection against both direct lightning strikes (10/350µs) and switching surges.

  • Type 1+2 – suitable for main distribution boards requiring high-energy surge protection
  • 4 poles (4P) – for three-phase systems with neutral
  • 25kA impulse current (Iimp) – withstands direct lightning strikes
  • 25kA nominal discharge current (In) – reliable surge suppression
  • Compatible with TT and TN-S networks
  • DIN rail mounting – easy installation in standard enclosures

Ideal for protecting sensitive equipment in residential, commercial, and industrial applications. Trust Hager quality for long-lasting safety.

  • Prekės ženklas
  • Kodas
    SPA080
  • Yra sandėlyje
    800 Prekės
  • ean13
    3250615515049
  • MPN
    SPA080

  • Mounting type
    DIN rail 35mm
  • Replaceable cartridge
    No
  • Brand
    Hager
  • Model
    SPA080
  • SKU
    SPA080
  • Product Type
    Combined SPD T1+T2
  • EAN
    3250615515049
  • Number of Poles
    4P
  • Ingress Protection (IP)
    IP20
  • SPD Type / Class
    Type 1+2
  • Earthing / Network System
    TT
  • Max Discharge Current (Imax, 8/20µs)
    25 kA
  • Protocols / Connectivity
    none
  • Impulse Current (Iimp, 10/350µs)
    25 kA
  • Nominal Discharge Current (In, 8/20µs)
    25 kA
  • Nominal Voltage (Uc)
    230/400V AC V
  • Voltage Protection Level (Up)
    ≤1.5 kV
  • Mounting Width (DIN modules)
    4
  • Remote Signalling Contact
    No
